Front Left & Right Complete Strut Spring Assembly Pair for 1997-2000 Acura EL & 1996-2000 Honda Civic

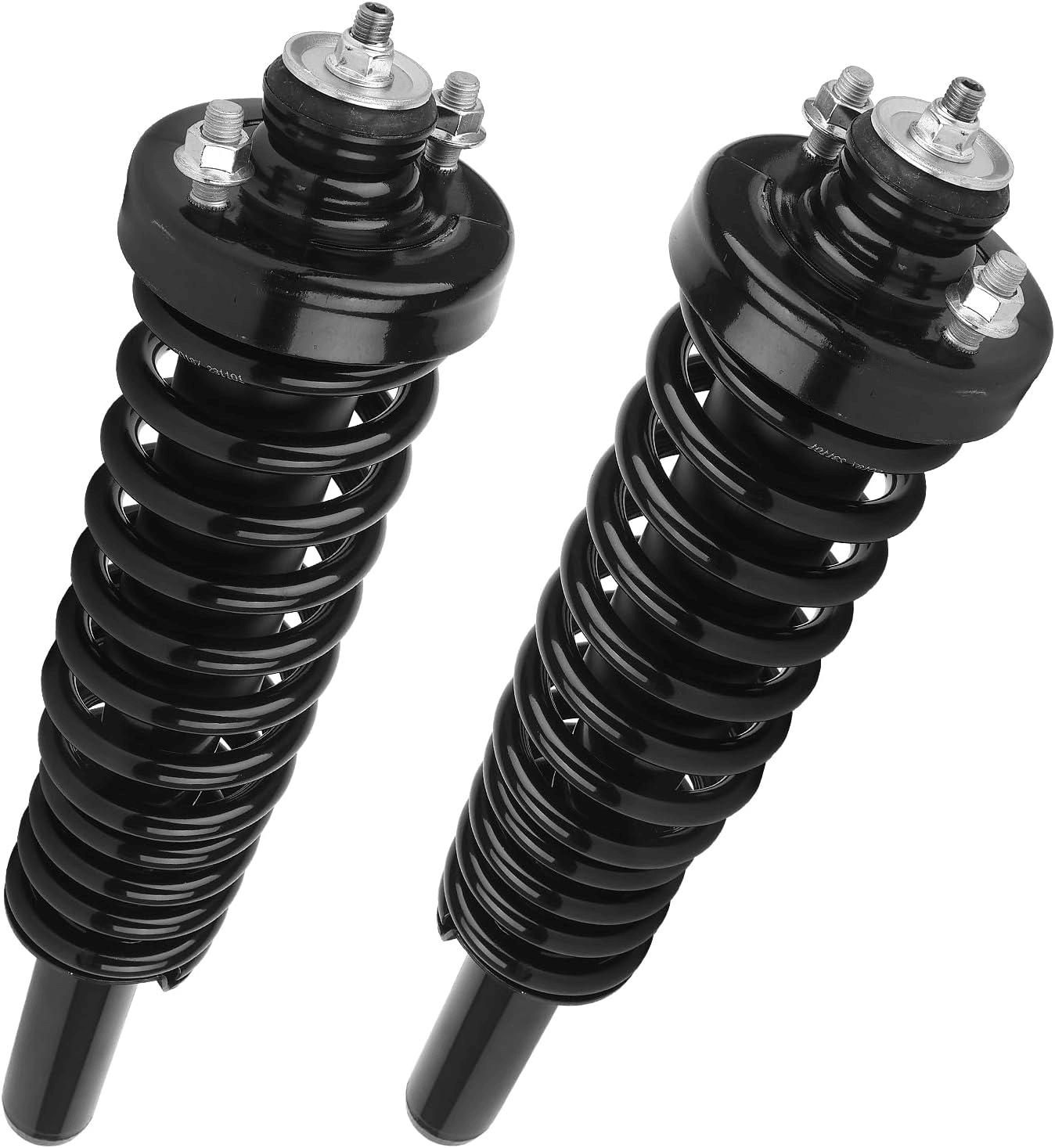

Front Left and Right Strut and Coil-Spring Assembly Pair

Two-piece front suspension set containing left- and right-side strut spring assemblies for 1997–2000 Acura EL and 1996–2000 Honda Civic applications.

Critical fitment warning: The source states “All Models” for both vehicle ranges but does not provide engine, transmission, body style, trim, ABS, production date, suspension package, or ride-height details. Confirm the VIN, exact model year, original left and right strut references, lower mounting geometry, brake-hose and ABS-wire brackets, upper-mount pattern, spring configuration, and vehicle ride height before ordering. Modified, lowered, or raised vehicles are not confirmed.

Vehicle Compatibility

• 1997–2000 Acura EL — front; all models per source
• 1996–2000 Honda Civic — front; all models per source

Not confirmed: Modified suspension, non-standard ride height, model years outside these ranges, or any application whose original left/right mounting geometry and spring configuration do not match.

Position and Quantity

• Axle position: Front
• Sides: Left/driver and right/passenger
• Quantity: 2 assemblies

Confirmed Assembly Contents

• 1 front-left strut and coil-spring assembly
• 1 front-right strut and coil-spring assembly

The source confirms strut spring assemblies but does not separately identify every installed component. Upper mounts, mount bearings, spring seats, isolators, dust boots, bump stops, nuts, and mounting hardware should be verified from the product images and received package before installation.

Reference Numbers

171291L, 171291R

The suffixes identify left- and right-designated source references. Match both original sides, mounting points, brackets, spring shape, and upper-mount orientation before installation.

Installation Notes

Suspension service affects steering, braking, alignment, and vehicle stability and should be performed by a qualified technician. Replace front struts in axle pairs as supplied. Compare each assembly with the original side before installation, including overall length, lower mounting, upper-stud pattern, spring seating, brake-hose bracket, ABS-wire routing, and left/right orientation.

Inspect the control arms, ball joints, tie-rod ends, sway-bar links and bushings, steering knuckles, wheel bearings, tires, and fasteners. Follow the Acura or Honda service procedure for lifting, installation, tightening at the specified suspension position, and torque values. Do not loosen or disassemble a compressed coil spring unless using approved spring-compression equipment and procedures. After installation, perform a professional wheel alignment and verify ride height, steering response, brake-hose and ABS-wire clearance, and the absence of abnormal noise before road use.

Frequently Asked Questions

Are both front sides included?
Yes. The source confirms one left and one right front strut spring assembly, two total.

Are the coil springs included?
Yes. The products are identified as strut spring assemblies.

Are upper mounts and all installation hardware included?
Those components are not separately itemized. Verify the product images and received package.

Will these fit a lowered Civic or EL?
Modified ride-height coverage is not confirmed. Compare the complete original suspension configuration before ordering.
