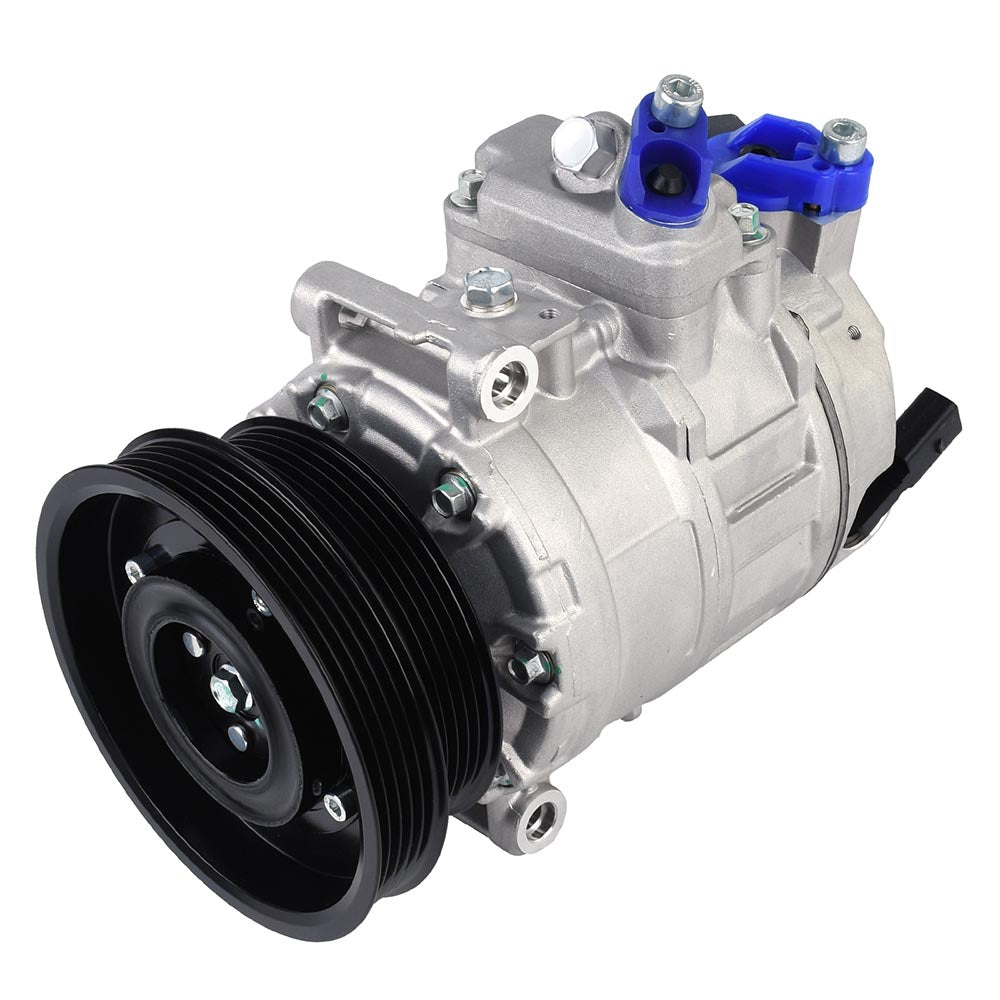

AC Compressor with Clutch for Audi TT RS 2012-2013 & VW Jetta, Golf, Beetle, Passat, Rabbit & R32 2005-2017

AC Compressor with Clutch for Audi & Volkswagen

A replacement air conditioning compressor supplied complete with its clutch, covering the five-cylinder 2.5L VW family and its relatives. A failing compressor usually shows up as air that never turns properly cold, a clutch that will not engage, or a rattle or squeal from the front of the engine when the air conditioning is switched on. This unit is manufactured to OE specifications and ISO quality standards and factory tested for reliability, durability and performance.

Fitment

• Audi TT RS Quattro 2012-2013, 2.5L five-cylinder
• VW Beetle 2006-2017, 2.5L, and 2009-2011, 2.0L
• VW Beetle Cabrio 2010, 2.5L
• VW Golf 2010-2014, 2.5L
• VW Jetta 2005-2010, 2.5L; 2009-2010, 1.9L; and 2011-2014, 2.5L with engine code CBUA
• VW Passat 2012-2014, 2.5L
• VW Rabbit 2006-2009, 2.5L
• VW R32 2008, 3.2L V6
• Quantity: 1 piece, clutch included
• Not for: engines or years other than those listed for each model

Engine size, year and in some cases engine code all matter here. The 2011-2014 Jetta is covered only with engine code CBUA. Confirm by VIN, or match the part numbers below against your existing compressor, before ordering.

Replaces part numbers

• 1K0820808C, 1K0820808G, 1K0820859G
• 198567, 2008688, 140378, CO-4574JC
• 1616A, 1621, 1712, 4568, 4572, 4574, 8688, 8689

Specifications

• Clutch: Included
• Standards: Manufactured to OE specifications and ISO quality standards
• Testing: Factory tested for reliability, durability and performance

Installation notes

• Air conditioning work should be carried out by a qualified technician with recovery and recharge equipment.
• The system must be evacuated before the old compressor is removed and recharged afterwards.
• Check the compressor's oil charge against the vehicle's specification before fitting.
• Replacing the receiver drier and expansion valve at the same time is normal practice, particularly if the old compressor failed internally.

FAQ

Is the clutch included? Yes, the compressor comes as a complete unit with its clutch.

Which Jetta years are covered? 2005-2010 with the 2.5L, 2009-2010 with the 1.9L, and 2011-2014 with the 2.5L engine code CBUA.

Why are Audi and VW listed together? The TT RS shares the five-cylinder engine family and compressor with these VW models.

Does it come pre-charged with refrigerant? No. The system must be evacuated and recharged by a technician after fitting.
