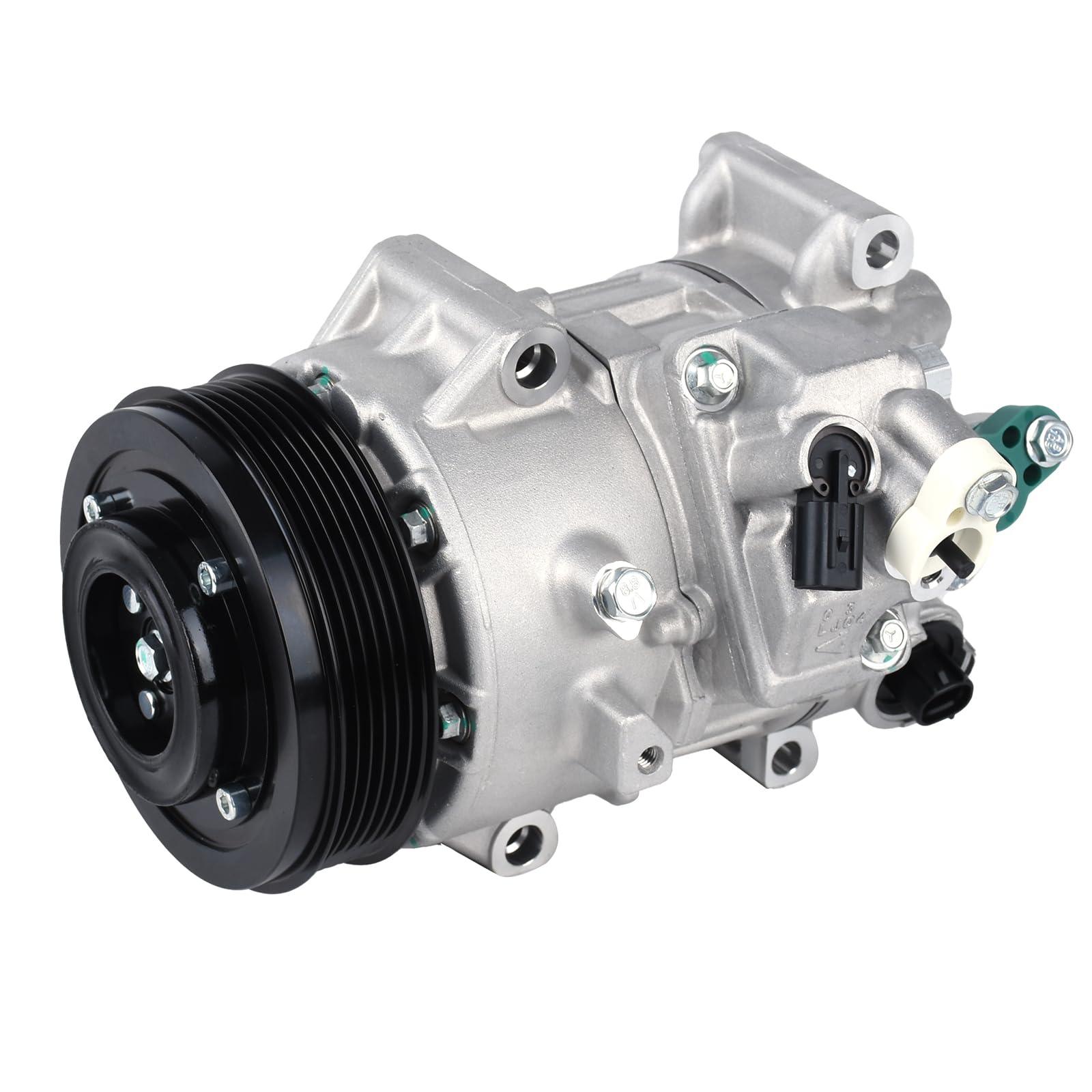

A/C Compressor with Clutch for 2012-2017 Toyota Camry & 2009-2012 RAV4 2.5L

A/C Compressor with Clutch for Toyota Camry and RAV4 2.5L

Belt-driven TSE17C air-conditioning compressor with clutch for the specific Toyota 2.5L four-cylinder applications listed below.

Critical fitment warning: Fitment is limited to 2.5L L4 applications. Hybrid compatibility is not confirmed; do not use this listing for a vehicle with an electric high-voltage A/C compressor unless the VIN and original compressor number explicitly match. Confirm the VIN, engine, gasoline/hybrid configuration, compressor label, mounting ears, refrigerant ports, electrical connector, clutch design, pulley diameter, and groove count before ordering.

Vehicle Compatibility

• 2012–2017 Toyota Camry — 2.5L L4
• 2009–2012 Toyota RAV4 — 2.5L L4

Other engines and compressor configurations are not confirmed. Match the original belt-driven clutch compressor directly.

Specifications

• Compressor type: TSE17C
• Clutch: Included per source
• Refrigerant: R134a
• Oil type: PAG 46
• Oil prefill: 100 ± 10 mL
• Pulley diameter: 120 mm
• Pulley grooves: 6

Oil-charge warning: Do not assume the stated prefill is the correct final system oil quantity. Measure and compare the removed compressor oil, account for any flushed or replaced components, and follow the vehicle service information to set the total oil charge. Too much or too little oil can damage the compressor or reduce cooling.

Reference Numbers

158367, 157367, 8831008080, 8831008081, 8831008082, 8831008083, 883100R010, 883100R011, 883100R012, 883100R013, 883100R014, 8831042330, 8831042331, 8831042332, 8831042333, 8831042334, A0012303211

Reference numbers are provided for comparison only. The final number, A0012303211, does not follow the same Toyota-style numbering pattern as the other references, so verify it against the original label rather than relying on it alone.

Package Contents

One A/C compressor with clutch. O-rings, seals, manifold hardware, refrigerant, additional oil, receiver-drier or accumulator, expansion valve, condenser, belt, and installation hardware are not confirmed unless shown in the product images.

Installation Notes

A/C service requires refrigerant recovery equipment and should be completed by a qualified technician. Diagnose the cause of the original compressor failure before installation. If internal debris or contamination is present, follow the applicable Toyota service procedure for flushing or replacing affected components; some modern condensers cannot be reliably flushed. Replace required seals, lubricate O-rings with the specified oil, verify the oil balance, rotate the compressor by hand as directed, evacuate the system, leak-test it, and charge the exact specified mass of R134a. Confirm correct clutch operation, belt alignment, pressures, vent temperature, and absence of leaks or abnormal noise.

Frequently Asked Questions

Does this fit a Camry or RAV4 with another engine?
No other engine is confirmed. This listing is limited to the stated 2.5L L4 applications.

Does this fit a hybrid?
Hybrid compatibility is not confirmed. Verify that the vehicle uses a belt-driven compressor with a clutch and match the original compressor number and electrical connections.

Is oil already inside the compressor?
The source states 100 ± 10 mL of PAG 46 oil is prefilled. The installer must still calculate and set the correct total system oil charge.

Is refrigerant included?
Not confirmed. The system must be evacuated and charged with the vehicle-specified amount of R134a using proper service equipment.
