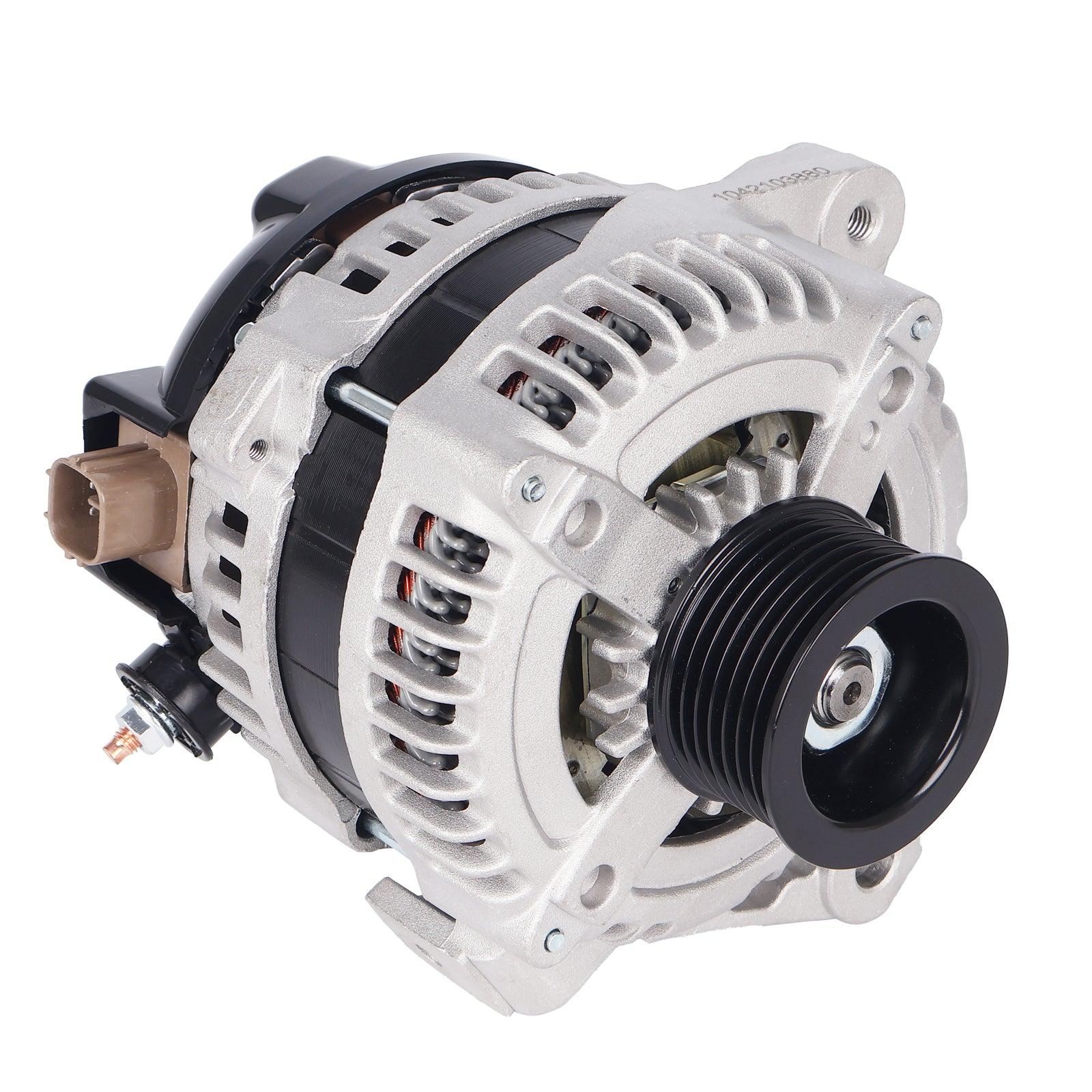

12V 100A Alternator for 2005-2010 Scion tC & Toyota Camry Highlander Solara 2.4L

12V 100A Alternator for Scion tC and Toyota 2.4L Models

Replacement 12-volt, 100-amp alternator with a 7-groove clutch pulley for the specific Scion tC and Toyota Camry, Highlander, and Solara applications listed below.

Critical fitment warning: Toyota applications are limited to the 2.4L L4. Camry vehicles must be built from September 2003 onward; listed Camry applications may be built in Japan or the USA. The source describes 2005–2010 Scion tC as all models but does not separately provide engine, transmission, production-date, electrical-option, or connector restrictions. Confirm the VIN, engine, exact production date, original alternator label, rated output, mounting ears, electrical plug, battery-terminal position, pulley type, pulley diameter, and groove count before ordering.

Vehicle Compatibility

Scion

• 2005–2010 tC — all models per source

Toyota

• 2004–2006 Camry — 2.4L L4; built from 09/2003; Japan- or USA-built vehicles
• 2004–2007 Highlander — 2.4L L4 only
• 2004–2008 Solara — 2.4L L4 only

Camry production-date warning: The 09/2003 cutoff refers to the vehicle’s build date, not merely its model year. Check the certification label and VIN records. Toyota V6 and hybrid applications are not included in the stated 2.4L L4 fitment.

Specifications

• Voltage: 12V
• Rated output: 100A
• Rotation: Clockwise (CW)
• Pulley: 7-groove clutch pulley
• Configuration: IR/IF per source

Package Contents

One alternator with pulley. Drive belt, tensioner, mounting bolts, wiring, battery-terminal hardware, and installation tools are not confirmed unless shown in the product images.

Diagnostic and Installation Notes

Charging-system work should be completed by a qualified technician. Test the battery, cables, grounds, belt, tensioner, and charging circuit before replacing the alternator. Disconnect the battery according to the vehicle service procedure before removal. Compare the mounting points, connector, output terminal, pulley alignment, and clutch-pulley operation with the original unit. Follow Scion or Toyota torque specifications and confirm belt routing and tension. After installation, verify charging voltage and current under load, check for warning lights or abnormal noise, and ensure the battery is fully charged; an undercharged or failing battery can overload a replacement alternator.

Frequently Asked Questions

Does this fit a V6 Camry, Highlander, or Solara?
No V6 fitment is confirmed. The listed Toyota applications are limited to the 2.4L L4.

What does “from 09/2003” mean for Camry?
It is a production-date requirement. Verify the build date on the vehicle certification label.

Does this fit both Japan- and USA-built Camry models?
Yes, the source states both production origins for the listed 2.4L application built from 09/2003.

What pulley does it use?
The source specifies a 7-groove clutch pulley. Verify pulley diameter and design against the original alternator.
