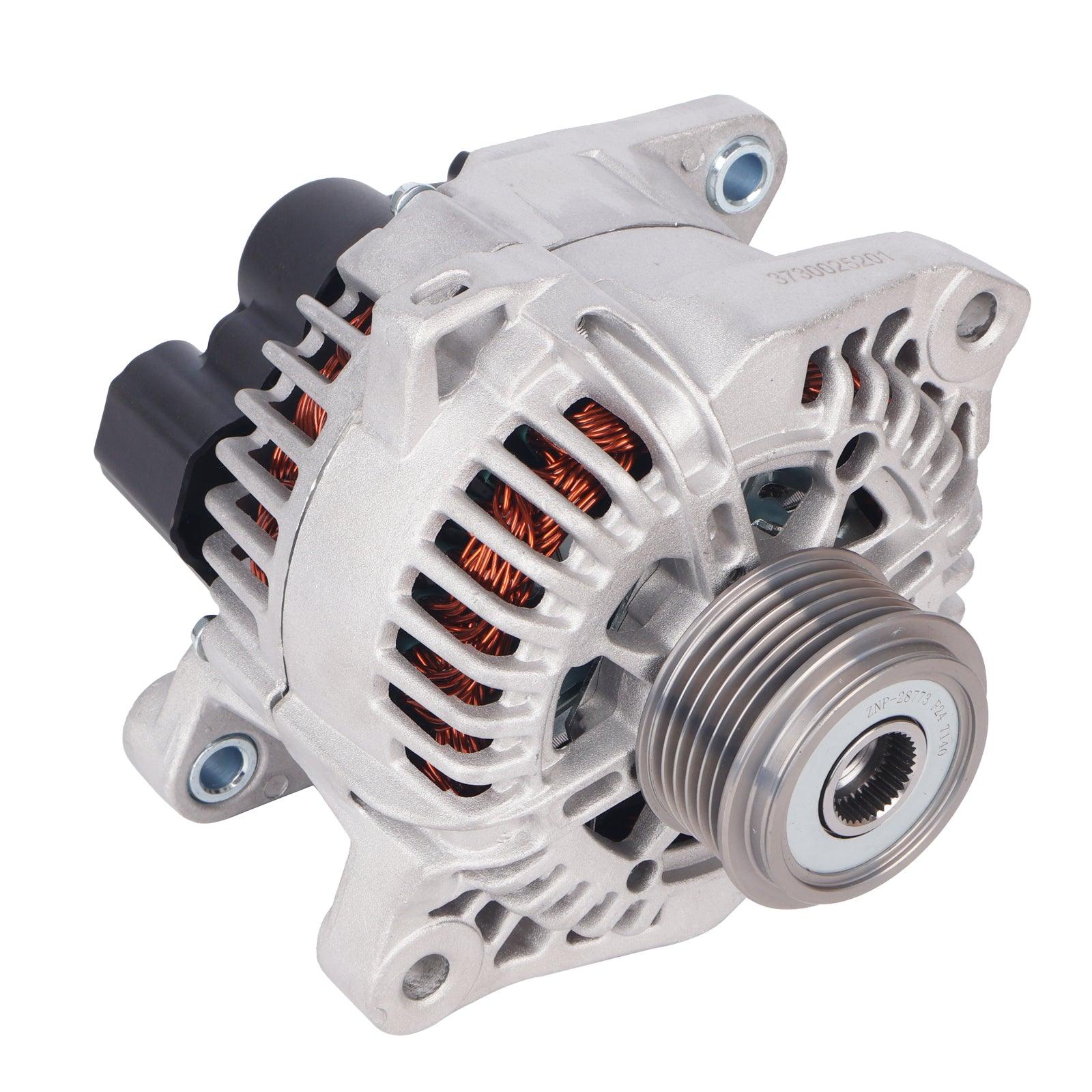

12V 110A Alternator for Chrysler 200 Sebring, Dodge Avenger Caliber & Jeep Compass Patriot

12V 110A Alternator for Select Chrysler, Dodge, and Jeep Models

Replacement 12-volt, 110-amp alternator with a 6-groove clutch pulley for the specific Chrysler, Dodge, and Jeep applications listed below.

Critical catalog conflict: The previous title and tags identified Hyundai and Kia, but the detailed source fitment lists only the Chrysler, Dodge, and Jeep applications below. No Hyundai or Kia application is confirmed by the current fitment data. Do not order for a Hyundai or Kia vehicle unless the VIN, original alternator number, electrical connector, mounting points, rated output, and pulley configuration are independently verified.

Fitment warning: Chrysler and Dodge coverage has exact engine restrictions. Jeep Compass and Patriot are described as “all models” by the source, but engine, drivetrain, transmission, trim, production-date, electrical-option, and connector restrictions are not separately provided. Confirm the VIN and match the original alternator label and physical configuration.

Vehicle Compatibility

Chrysler

• 2011–2013 200 — 2.4L L4
• 2007–2010 Sebring — 2.4L L4

Dodge

• 2008–2013 Avenger — 2.4L L4
• 2007–2009 Caliber — 1.8L L4
• 2007–2012 Caliber — 2.0L L4
• 2007–2011 Caliber — 2.4L L4

Jeep

• 2007–2017 Compass — all models per source
• 2007–2017 Patriot — all models per source

Hyundai and Kia applications are not confirmed by the current detailed fitment source.

Specifications

• Voltage: 12V
• Rated output: 110A
• Rotation: Clockwise (CW)
• Pulley: 6-groove clutch pulley
• Configuration: IR/IF per source

Reference Numbers

11189N, 11189, TG11C076, 426128, 2606128A, 2655544, 3730025201, 3730025201RU, 373002G100, 600029

Because the old Hyundai/Kia title conflicts with the Chrysler/Dodge/Jeep fitment table, do not rely on any single reference number alone. Verify the VIN, original alternator label, connector, mounting ears, output terminal, pulley diameter and groove count.

Package Contents

One alternator with pulley. Drive belt, tensioner, mounting bolts, wiring, battery-terminal hardware, and installation tools are not confirmed unless shown in the product images.

Diagnostic and Installation Notes

Charging-system work should be completed by a qualified technician. Test the battery, cables, grounds, belt, tensioner, and charging circuit before replacing the alternator. Disconnect the battery according to the vehicle service procedure. Compare the mounting points, connector, output terminal, pulley alignment, and clutch-pulley operation with the original unit. Follow the applicable vehicle torque specifications. After installation, verify charging voltage and current under load, check for warning lights or abnormal noise, and ensure the battery is fully charged.

Frequently Asked Questions

Does this fit Hyundai or Kia vehicles?
Not confirmed. The old title and tags mention Hyundai/Kia, but the detailed source fitment lists only Chrysler, Dodge, and Jeep vehicles.

What Caliber engines are listed?
1.8L L4 for 2007–2009, 2.0L L4 for 2007–2012, and 2.4L L4 for 2007–2011.

What pulley does it use?
The source specifies a 6-groove clutch pulley. Confirm pulley diameter and design against the original alternator.
