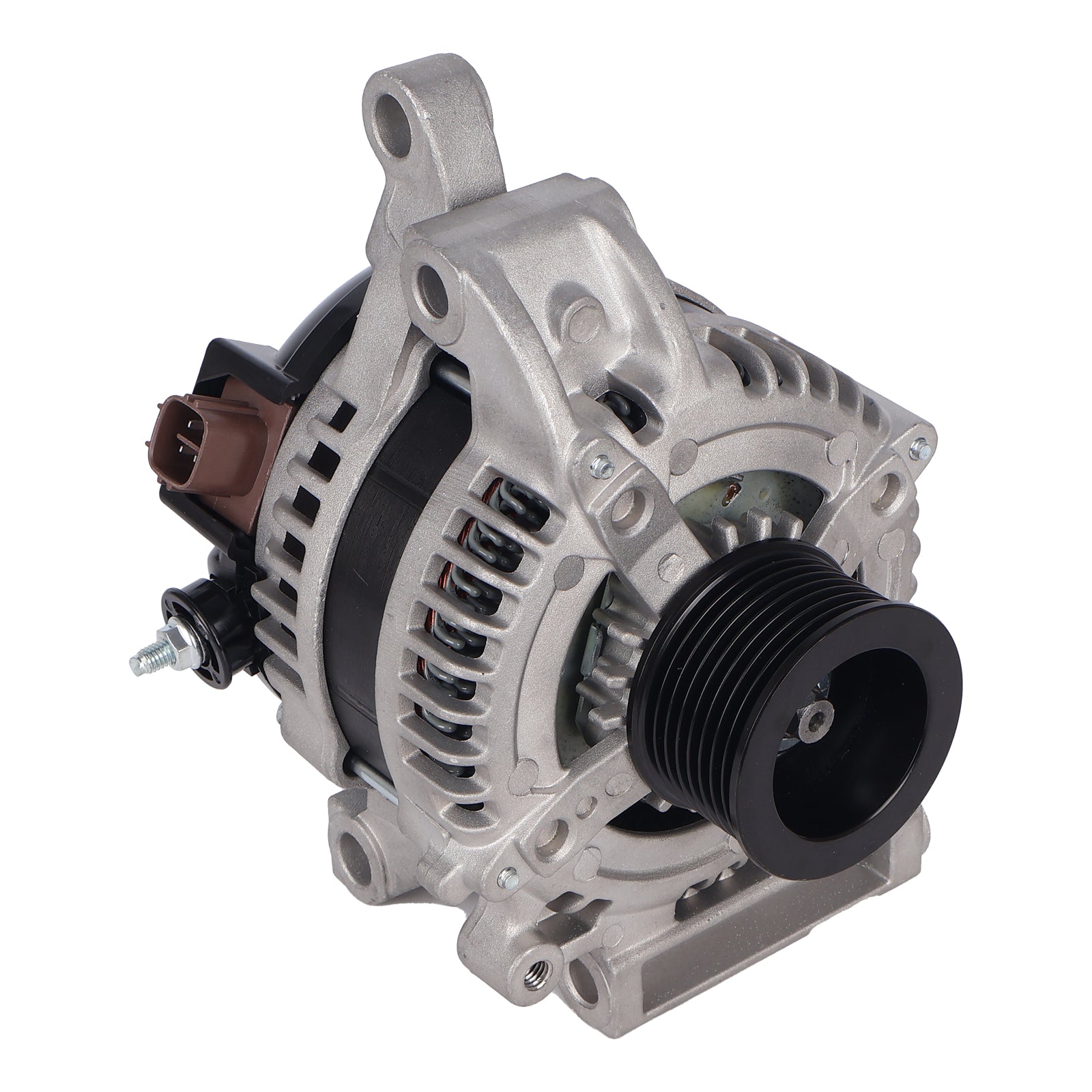

120A Alternator with 8-Groove Clutch Pulley for 2010-2023 Lexus GX460, 2008-2022 Sequoia & 2007-2021 Tundra

12V 120A Alternator for Select Lexus GX460, Toyota Sequoia, and Tundra Applications

Internally regulated alternator with 120-amp output, clockwise rotation, and an 8-groove clutch pulley for the exact engine and equipment configurations listed below.

Critical fitment warning: Fitment depends on engine and factory equipment, not model year alone. Sequoia entries require rear DVD and exclude the towing package. Several Tundra entries require rear DVD and the towing package, while later entries use different equipment conditions. The source does not provide GX460 engine details, connector pin count, plug clock position, mounting dimensions, case code, production-date breaks, or formal replacement reference numbers. Confirm the VIN, engine, factory option codes, rear-DVD system, towing package, original alternator label and output, 8-groove clutch pulley, connector, terminal layout, case and mounting points before ordering.

Lexus Compatibility

• 2010–2023 Lexus GX460 — with Optional Equipment; exact option definition and engine restriction not provided

Toyota Sequoia Compatibility

• 2008–2022 Toyota Sequoia — 5.7L V8; with rear DVD; without towing package
• 2010–2012 Toyota Sequoia — 4.6L V8; with rear DVD; without towing package

Toyota Tundra Compatibility

• 2007–2016 Toyota Tundra — 5.7L V8; with rear DVD; with towing package
• 2010–2015 Toyota Tundra — 4.6L V8; with rear DVD; with towing package
• 2016 Toyota Tundra — 4.6L V8; with towing package
• 2017–2019 Toyota Tundra — 4.6L V8; with Optional Equipment; exact option definition not provided
• 2017–2021 Toyota Tundra — 5.7L V8; no additional equipment restriction supplied

Not confirmed: Sequoia vehicles without rear DVD or with the towing package, Tundra configurations outside the exact entries above, other engines, model years outside these ranges, or any vehicle whose original output, pulley, connector, and mounting configuration do not match.

Electrical and Mechanical Specifications

• Voltage: 12V
• Rated output: 120A
• Rotation: Clockwise (CW)
• Pulley: 8-groove clutch pulley
• Regulator/fan configuration: IR/IF

Connector type and pin count, plug clock position, pulley diameter, mounting dimensions, case code, charge-terminal size, and included hardware are not provided.

Reference Information

No formal OE or replacement reference numbers are provided in the source description. The SKU is an inventory identifier and is not used as proof of OE interchange or fitment.

Package Contents

• 1 alternator with 8-groove clutch pulley

Mounting bolts, electrical connector, charge cable, drive belt, belt tensioner, battery, fusible link, and installation tools are not confirmed as included.

Installation Notes

Charging-system service should be performed by a qualified technician. Before replacement, test the battery, battery cables, grounds, drive belt, tensioner, charge cable, fusible links, and control circuit. Disconnect the battery according to the vehicle service procedure and compare the replacement with the original alternator, including 120A label, case, mounting ears, connector and terminal positions, pulley grooves and clutch function, and rotation.

Follow vehicle-specific torque and belt-routing procedures. After installation, verify belt tracking and tension, battery state of charge, charging voltage and current under load, voltage drop across positive and ground circuits, and the absence of warning lights or diagnostic faults. A weak battery, poor ground, damaged cable, blown fuse, incorrect belt tension, or control-circuit fault can mimic alternator failure.

Frequently Asked Questions

Does this fit every GX460, Sequoia, or Tundra in the stated years?
No. Fitment depends on engine and factory equipment. Match the exact entry above and the original alternator.

What is the alternator output?
The source specifies 12 volts and 120 amps.

Does the pulley come installed?
The alternator is specified with an 8-groove clutch pulley.

What does Optional Equipment mean for the GX460 or 2017–2019 Tundra?
The source does not define the option. Verify the VIN, factory option codes, and original alternator label and configuration before ordering.
