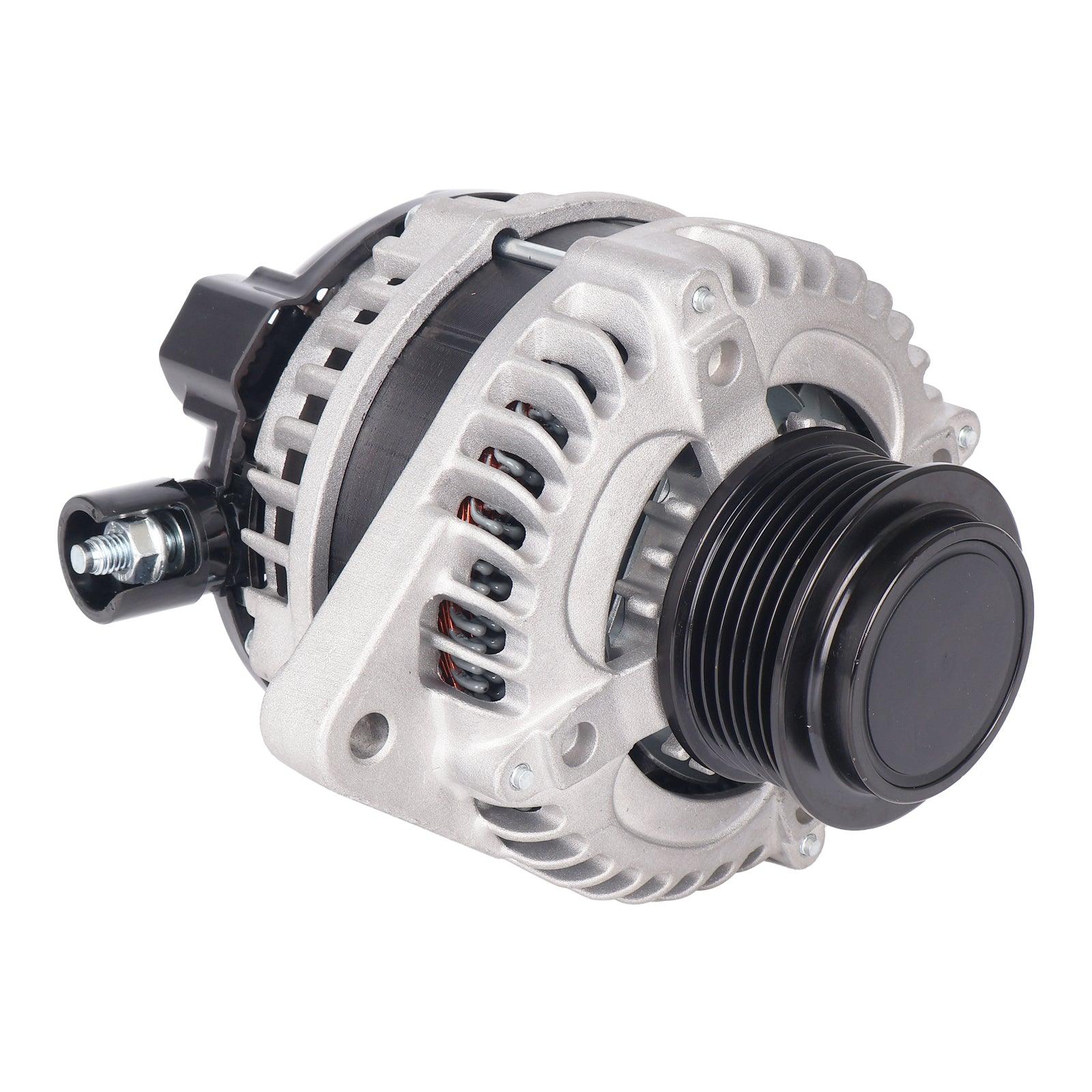

12V 130A Alternator for 2011-2013 Honda Odyssey, 2012-2015 Pilot & 2012-2014 Ridgeline

12V 130A Alternator for Honda Odyssey, Pilot, and Ridgeline

Replacement 12-volt, 130-amp alternator with a 6-groove clutch pulley for the specific Honda applications listed below.

Critical fitment warning: The source confirms the model-year ranges but does not separately specify engine, FWD/AWD, trim, transmission, production date, towing or electrical package, connector version, or other configuration restrictions. Confirm the VIN, engine, drivetrain, original alternator label and reference number, rated output, mounting ears, electrical plug, battery-terminal position, pulley type, pulley diameter, and groove count before ordering.

Vehicle Compatibility

• 2011–2013 Honda Odyssey
• 2012–2015 Honda Pilot
• 2012–2014 Honda Ridgeline

Engine and configuration restrictions are not provided by the source. Match the exact original alternator and electrical connections rather than relying on model year alone.

Specifications

• Voltage: 12V
• Rated output: 130A
• Rotation: Clockwise (CW)
• Pulley: 6-groove clutch pulley
• Configuration: IR/IF per source

Reference Numbers

11573N, 11573, CSJ24, 400-52429R, 210-0766, AND0618, 104210-1240, 31100-RV0-A01, 1042101240, 31100RV0A01

Reference numbers are provided for comparison. Confirm the number together with the VIN, rated output, connector, mounting points, output terminal, and pulley configuration.

Package Contents

One alternator with pulley. Drive belt, tensioner, mounting bolts, wiring, battery-terminal hardware, and installation tools are not confirmed unless shown in the product images.

Diagnostic and Installation Notes

Charging-system work should be completed by a qualified technician. Test the battery, cables, grounds, belt, tensioner, and charging circuit before replacing the alternator. Disconnect the battery according to the Honda service procedure before removal. Compare the mounting points, connector, output terminal, pulley alignment, and clutch-pulley operation with the original unit. Follow Honda torque specifications and confirm belt routing and tension. After installation, verify charging voltage and current under load, check for warning lights or abnormal noise, and ensure the battery is fully charged; an undercharged or failing battery can overload a replacement alternator.

Frequently Asked Questions

What is the rated output?
The source specifies 130 amps at 12 volts.

Does this fit every trim and drivetrain in the listed years?
The source does not provide trim, engine, or drivetrain restrictions. Verify the VIN and match the original alternator label and physical configuration.

What pulley does it use?
The source specifies a 6-groove clutch pulley. Verify pulley diameter and design against the original alternator.

Is the drive belt included?
Not confirmed. The listing identifies one alternator with pulley; review the product images for exact contents.
