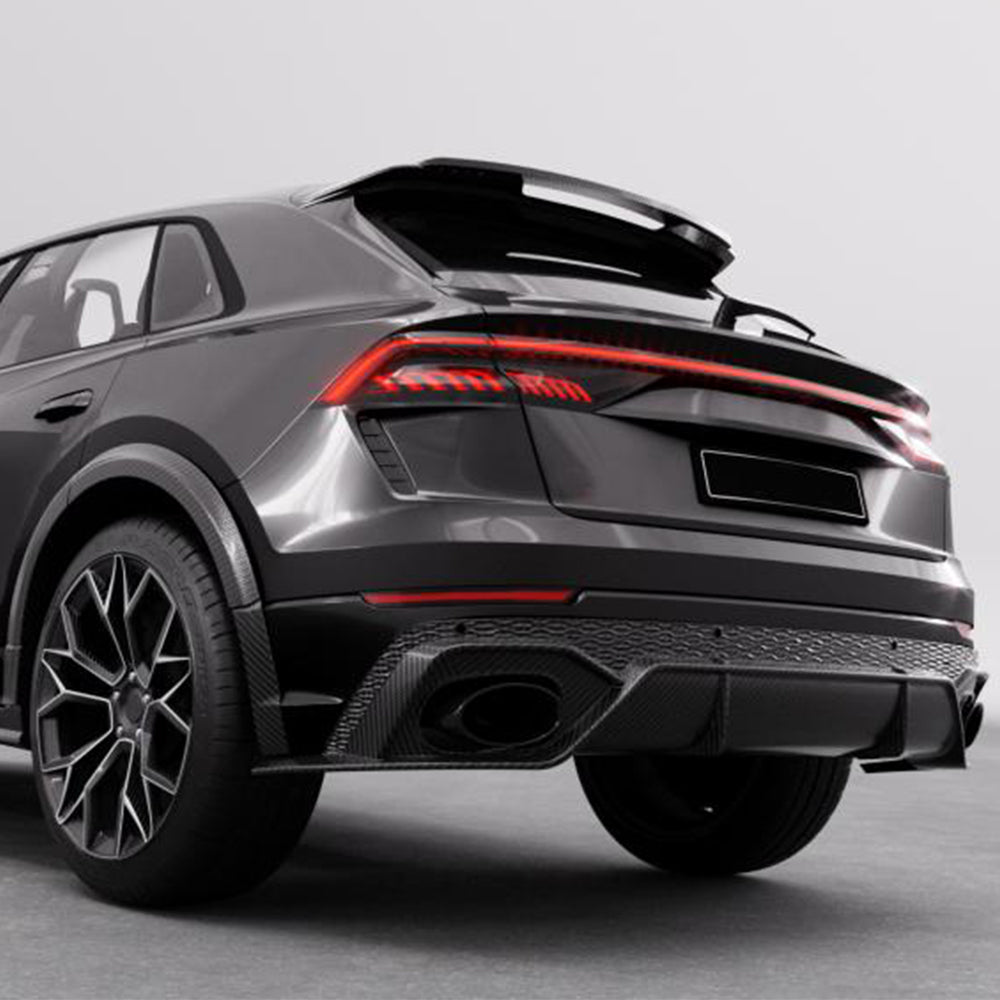

Audi RSQ8 Base Carbon Fiber Rear Bumper Diffuser 2020–2023

Carbon Fiber Rear Bumper Diffuser for Audi RSQ8

Give the lower rear bumper a defined woven-carbon accent with this gloss carbon fiber diffuser. The source lists Audi RSQ8 Base Sport Utility four-door applications from 2020–2023 and describes replacement of the factory plastic diffuser.

Listed Fitment

• Audi RSQ8 Base Sport Utility, four-door.
• Listed years: 2020, 2021, 2022 and 2023.
• Intended interface: the original rear bumper's factory plastic diffuser location.

Confirm VIN, production date, market, bumper profile, retaining points and exhaust arrangement before ordering. A year range is not an equipment-specific compatibility matrix. No drivetrain or special-edition breakdown is supplied. Q8, SQ8, other Audi models, later model years, facelift bumpers and aftermarket bumper conversions are not established applications. Base refers to the RSQ8 trim as listed, not a standard Q8 bumper.

Material, Finish and Development

• Source-specified genuine carbon fiber with a 3×3 weave.
• Gloss finish with source-described double-layer UV-protected clear coating.
• Development described as 3D design, CNC molding and trial installation on a vehicle.

Dry-carbon or prepreg processing, backing composition, resin chemistry, laminate thickness, dimensions and measured net weight are not documented. No carbon-only laminate or quantified weight-saving claim is made. UV protection does not guarantee permanent gloss or freedom from fading or discoloration. An exact visual match to other carbon accessories is not guaranteed.

No supporting test data establishes improved downforce, reduced drag, handling or cooling. This diffuser is presented as an exterior styling accessory, without aerodynamic performance claims. Trial-installation and manufacturing descriptions do not guarantee perfect fit on every vehicle.

Replacement Scope and Package

The source describes replacement of the factory plastic diffuser, rather than a confirmed stick-on overlay or complete rear bumper replacement. Confirm original-part removal and any clip, reflector or equipment transfer requirements before fitting.

Self-tapping screws are specifically listed as included. Exact quantities and screw dimensions are not supplied. Tape, adhesive, new clips, brackets, exhaust tips, pipes, mesh, lights and wiring are not individually confirmed as included. The source does not specify an exact physical diffuser piece count, outlet dimensions or outlet count.

The original instruction to unbolt the factory diffuser and install this item is not a complete fitting procedure. Included self-tapping screws do not prove existing-hole compatibility or a no-drilling installation. No complete mounting diagram or torque values are supplied, so no no-modification or quick-installation guarantee is made.

Exhaust and Vehicle Equipment Checks

Verify exhaust opening alignment, clearance from hot tips and pipes, and allowance for exhaust movement. No minimum clearance measurement or composite heat rating is supplied. The exhaust must remain independently supported on appropriate hangers; the diffuser must not carry exhaust weight or hold the exhaust in position. Confirm compatibility separately for modified exhaust systems.

Preserve the operation of parking sensors, rear radar, cameras, reflectors, required lamps, tow-access provisions and any fitted hands-free tailgate sensor. Matching bumper shape does not prove sensor compatibility. Do not obstruct, disable or bypass factory equipment to accommodate an incompatible part.

Professional Installation Guidance

1. Inspect the supplied diffuser and trial-fit before drilling or final fastening. Check perimeter shape, symmetric alignment, retaining positions and adjacent panel gaps without forcing the composite.
2. Follow the appropriate service procedure to remove the original insert and identify any components that must transfer. Inspect original clips and supports for damage.
3. Verify secure attachment points. Inspect behind proposed holes for wiring, sensors and other components before modifying anything. Use a verified mounting procedure rather than treating the included screws as a complete attachment plan.
4. Check exhaust heat clearance, independent exhaust support, ground clearance and clearance to surrounding panels and underbody components.
5. Complete the verified attachment, check all retaining points and test affected vehicle functions before driving. Perform diagnostics or calibration where required by the vehicle's service procedure.
6. Reinspect periodically and after scraping, impact, exhaust work or bumper removal. Do not drive with loose, cracked or lifting components or contact with the exhaust.

Professional installation is recommended. Do not use the diffuser as a step, lifting point or towing attachment.

Care

Allow exhaust components to cool before inspection or cleaning. Use a soft cloth and non-abrasive products compatible with the gloss coating. Avoid aggressive solvents and close-range high-pressure water at edges and retaining points. Inspect the coating, laminate and fixings for heat damage, cracks or loosening.

Frequently Asked Questions

Does it fit a standard Q8 or SQ8?
Those models are not established applications. The detailed fitment identifies RSQ8 Base.

Is it a replacement diffuser?
Yes, the source describes replacing the factory plastic diffuser. Check removal and transfer requirements for the actual vehicle.

Are exhaust tips included?
They are not individually listed as included. Outlet measurements and modified-exhaust compatibility are not supplied.

Are screws and tape included?
Self-tapping screws are listed; tape is not documented as included.

Is drilling required?
Existing-hole compatibility is not established. Have the installer verify the mounting requirements first.

Is this dry carbon?
A dry-carbon process is not documented. The source specifies 3×3 carbon fiber and double-layer UV-protected gloss coating.

How many physical pieces are supplied?
An exact piece count is not provided.
