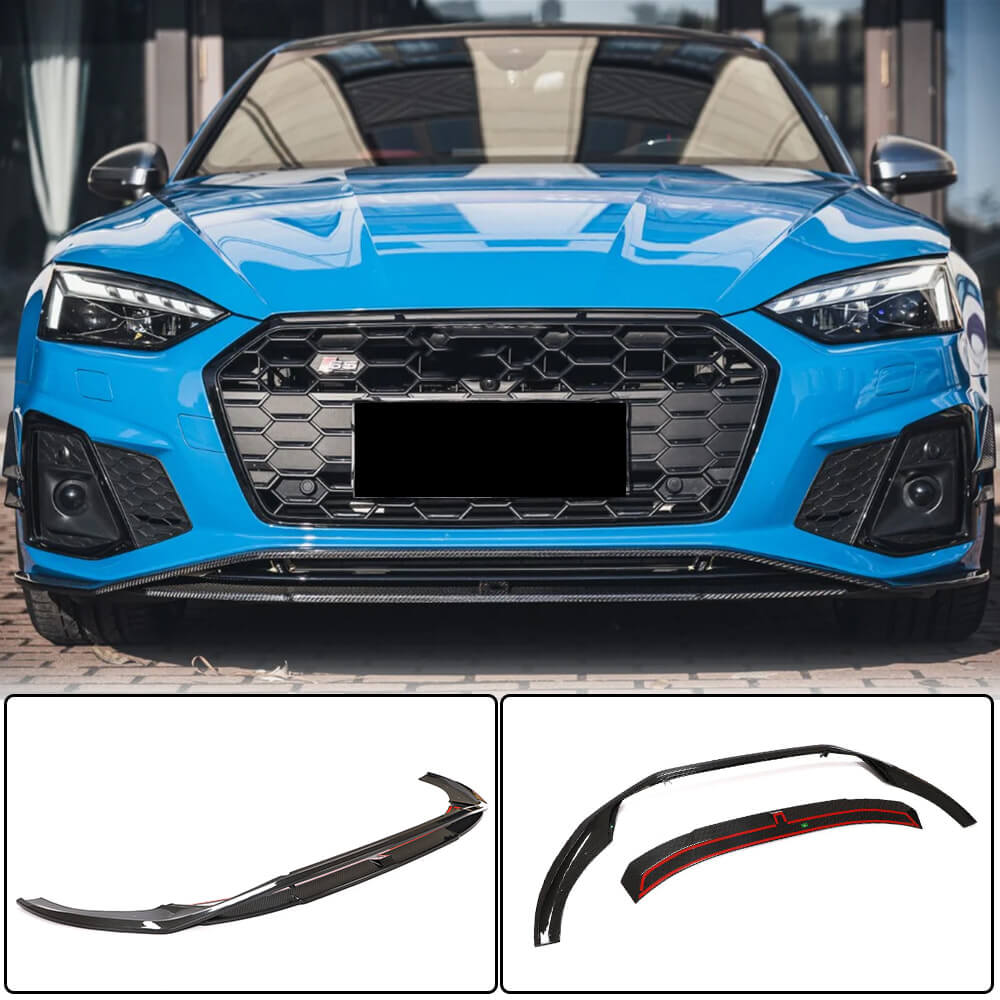

Audi B9.5 S5 / A5 S Line Carbon Fiber Front Lip 2020–2022

Carbon Fiber Front Lip for Audi B9.5 S5 / A5 S Line

Add a gloss woven-carbon accent to the lower front bumper of your B9.5. This item's detailed fitment lists S5 and A5 S Line for 2020–2022. The source describes hand-laid carbon fiber using pre-impregnated cloth and epoxy resin, with a double-layer UV-protected gloss clear coat. Self-tapping screws and tape are listed for installation.

Source-Listed Fitment

• Models: Audi S5 and A5 S Line, B9.5.
• Detailed years: 2020, 2021 and 2022.
• Body styles named: Coupe, Convertible and Sportback, with combined two-door/four-door wording.
• Explicit exclusion: Audi A5 Base models.

The original title and introduction say 2020UP, the URL contains 2021UP, and the detailed table lists 2020–2022. This description follows the explicit 2020–2022 table rather than extending fitment indefinitely. Confirm VIN, production date, actual B9.5 bumper contour and attachment surfaces; registration year alone is insufficient.

The combined model/body list is not a separate mounting map for every engine, market or equipment package. Verify the individual vehicle's bumper rather than assuming all listed body styles have identical interfaces. Earlier B9 pre-facelift bumpers, RS5, A5 Base, years beyond the detailed list and aftermarket bumper conversions are not established applications. Existing B9 search tags do not expand this B9.5 listing.

Material and Finish

• Detailed specification: 3x3 weave carbon fiber.
• Hand-laid construction described using pre-impregnated carbon fiber cloth and epoxy resin.
• Gloss, double-layer UV-protected clear coating.
• Source-described development using 3D laser scanning, CAD, CNC moulding and vehicle trial installation.

The original title calls the product dry carbon, but the detailed specification does not separately verify a dry-carbon manufacturing process. Pre-impregnated cloth alone does not establish dry manufacture or autoclave curing. The updated title uses carbon fiber without presenting that process as confirmed. A wet-carbon process, laminate schedule, backing material, thickness and dimensions are also not documented.

No measured net weight or quantified weight saving is supplied. UV protection does not guarantee permanent fade resistance, and design methods or trial installation do not guarantee identical fit on every vehicle. No supporting aerodynamic testing is supplied, so improved downforce, traction, handling, drag or fuel economy is not claimed. This is an exterior styling component, not structural bumper reinforcement or crash protection.

Listed Contents and Installation Scope

• Carbon fiber front lip; physical piece count is not specified.
• Self-tapping screws.
• Installation tape.

No screw quantities, tape grade, pre-application status, brackets, clips or complete accessory inventory is supplied. Confirm the actual packing list and required original fittings. No one-piece or multi-piece arrangement is established. This is a front lip, not a complete bumper or body kit. Confirm which original lower trim remains, since no complete removal diagram is provided.

Professional Installation

1. Inspect the original B9.5 S5/A5 S Line bumper and underside attachment areas for damage, repairs or modifications. Verify the actual bumper and detailed year listing before disassembly.
2. Trial-fit before exposing adhesive or drilling. Check the entire contour, alignment, contact area and intended attachment interfaces without forcing the composite or pulling a mismatched part into shape.
3. Keep cooling openings, sensors, radar fields, lamps, towing access and service points clear. Check steering clearance where relevant, ground clearance and approach clearance.
4. Inspect behind proposed screw locations for wiring, ducts and other components. Included self-tapping screws do not establish no-drill installation. No drilling template or torque values are supplied.
5. Clean and fully dry compatible bonding surfaces. Follow the tape manufacturer's application temperature, pressure and curing instructions. Included tape is not necessarily pre-applied.
6. Use the verified mechanical retention arrangement without crushing or overtightening the laminate. Tape alone must not replace required mechanical fixings.
7. Check secure attachment, relevant equipment functions and operating clearances before driving. Inspect periodically and after scraping or impact.

Professional installation is recommended. No fixed installation time, universal no-modification claim or perfect-fit guarantee is made. Do not drive with loose parts, cracked mounting areas or interference with vehicle operation. Do not use the lip as a step, jack point or support.

Care

Clean with a soft cloth and non-abrasive products compatible with the gloss coating. Avoid strong solvents and high-pressure water directed at edges or bonded areas. Follow adhesive curing requirements before washing. Inspect the clear coat, laminate and fasteners regularly, particularly after ground contact.

Frequently Asked Questions

Why does the updated title list 2020–2022?
Those are the explicit detailed-table years. The broader 2020UP title/introduction and 2021UP URL do not establish an unlimited application range.

Is dry-carbon manufacture verified?
The original title says dry carbon, but the detailed specification does not verify that process. Pre-impregnated cloth and epoxy are described without a separate curing-process report.

Does it fit A5 Base or earlier B9 bumpers?
A5 Base is expressly excluded. Earlier B9 pre-facelift compatibility is not established.

Which body styles are listed?
Coupe, Convertible and Sportback are named together. Confirm the actual bumper and mounting interfaces for the individual vehicle.

Are screws and tape included?
Both are listed, without quantities or a complete accessory inventory.

Is it a confirmed one-piece lip?
No physical piece count is stated in this item's detailed source.
