BMW F34 GT M Sport Carbon Fiber Rear Diffuser 2014–2018

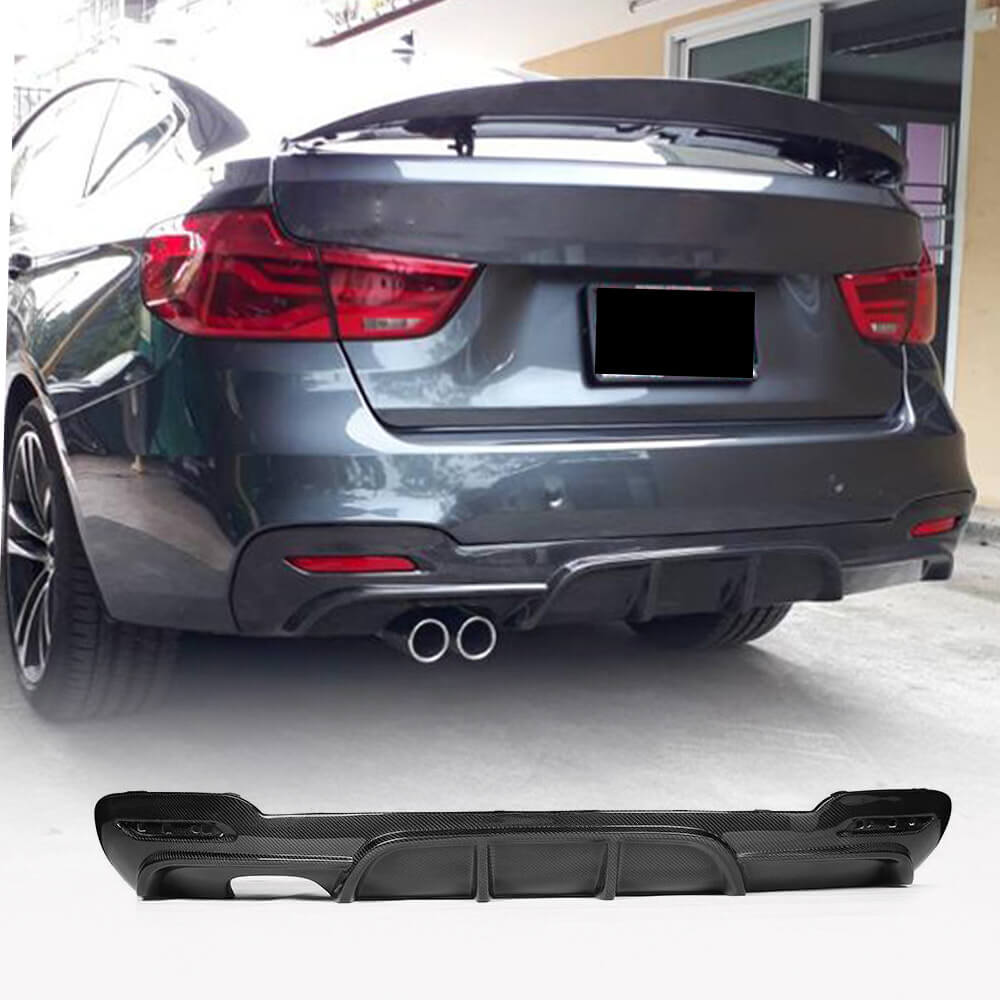

Carbon Fiber Rear Diffuser for BMW F34 GT M Sport

Add a gloss woven-carbon accent to the lower rear bumper of your 3 Series Gran Turismo. This diffuser is source-listed for selected BMW F34 GT models from 2014–2018 with the factory M Sport rear bumper, replacing the original plastic diffuser.

Listed Fitment

• BMW 3 Series F34 GT Gran Turismo.
• Models listed together: 320i, 328i, 330i, 335i and 340i.
• Years listed together: 2014, 2015, 2016, 2017 and 2018.
• Only for the factory M Sport bumper.
• The introduction describes the vehicle as four-door; verify the actual F34 GT body and bumper interface.

The source combines engines and years without mapping every combination. Confirm VIN, production date, market, original bumper, mounting points and exhaust layout. Do not assume every listed engine applies in every year. No drivetrain-specific or transmission-specific compatibility matrix is supplied.

Standard/non-M Sport bumpers, F30 Sedan, F31 Touring, F80 M3, other chassis, unlisted engines, later years and aftermarket bumper conversions are not established applications. Similar 3 Series naming, M badges or exterior appearance do not establish interchangeability.

Material, Finish and Development

• Source-specified genuine 3×3 weave carbon fiber.
• Gloss finish with source-described double-layer UV-protected clear coating.
• Development described as 3D design, CNC molding and vehicle trial installation.

No dry-carbon or prepreg process, resin chemistry, backing composition, carbon-only laminate, layer thickness, dimensions or measured net weight is documented. No supporting test data establishes downforce, reduced drag, improved handling, cooling or quantified weight savings. This item is presented as an exterior styling accessory without those performance claims.

UV protection does not guarantee permanent gloss or freedom from fading or discoloration. Exact matching to other carbon accessories is not guaranteed. Development and trial-fit descriptions do not guarantee perfect fit on every vehicle.

Replacement Scope and Package

The source describes replacement of the factory plastic diffuser, not a confirmed tape-on overlay or complete bumper replacement. Confirm the original insert's removal and any retaining clip, reflector or equipment transfer requirements.

Self-tapping screws are specifically listed as included. Exact screw quantities and dimensions, physical diffuser piece count and a complete packing list are not supplied. Tape, adhesive, new clips, brackets, exhaust tips, pipes, mesh, lights and wiring are not individually confirmed as included.

Exhaust opening count, outlet dimensions and compatibility with modified exhaust systems are not specified. Do not infer a common outlet arrangement across all listed engines. Verify the supplied diffuser against the actual vehicle's exhaust before installation.

The original instruction to unbolt the factory diffuser and fit this item is not a complete installation procedure. Included self-tapping screws do not establish existing-hole compatibility or a drilling-free installation. No full mounting diagram or torque values are supplied. Quick-installation and no-modification guarantees are not retained.

Exhaust Clearance and Vehicle Equipment

Check exhaust tip alignment, heat clearance and allowance for movement on the exhaust's own hangers. No minimum clearance measurement or composite heat rating is supplied. The diffuser must not contact hot or moving exhaust parts, carry exhaust weight or hold the exhaust in position. Resolve mismatched outlets or modified exhaust interfaces before use.

Preserve parking sensors, rear radar, cameras, reflectors, required lighting, tow-access provisions and any fitted hands-free tailgate equipment. Matching exterior shape does not prove functional compatibility. Do not cover, relocate, disable or bypass original systems to fit an incompatible part.

Professional Installation Guidance

1. Confirm the actual F34 factory M Sport bumper and exhaust configuration. Inspect and trial-fit the diffuser before drilling or final fastening.
2. Compare perimeter shape, retaining positions, panel gaps and exhaust openings without forcing the composite.
3. Follow the appropriate service procedure to remove the original insert. Identify transferred parts and inspect clips and supports for damage.
4. Verify secure fastening locations and inspect behind proposed holes for wiring, sensors and other components. Use a verified mounting procedure rather than treating included screws as a complete attachment plan.
5. Check exhaust heat clearance and independent support, ground clearance and clearance to adjacent panels and underbody components.
6. Complete the verified attachment, check all retaining points and test affected vehicle functions before driving. Perform diagnostics or calibration where required by the vehicle's service procedures.
7. Reinspect periodically and after scraping, impact, exhaust work or bumper removal. Do not drive with loose, cracked or lifting components or exhaust contact.

Professional installation is recommended. Do not use the diffuser as a step, towing attachment or lifting point.

Care

Allow the exhaust and surrounding area to cool before cleaning or inspection. Use a soft cloth and non-abrasive products compatible with the gloss coating. Avoid aggressive solvents and close-range high-pressure water at edges and fixings. Inspect the laminate, finish and attachment points for cracks, heat damage or loosening.

Frequently Asked Questions

Does it fit any F34 bumper?
No. The source specifically requires the factory M Sport bumper.

Does it fit an F30 or F31?
Those chassis are not established applications. This item is listed for F34 GT Gran Turismo.

Do all listed engines apply throughout 2014–2018?
No engine-by-year matrix is supplied. Verify the individual vehicle, bumper and exhaust arrangement.

Are exhaust tips included?
They are not itemized as included. Outlet dimensions and modified-exhaust compatibility are not documented.

Are tape and screws included?
Self-tapping screws are listed. Tape is not documented as included.

Is drilling unnecessary?
Existing-hole compatibility is not established. Have the installer verify the mounting procedure before modifying the bumper.

Is it dry carbon or a one-piece diffuser?
Neither a dry-carbon manufacturing process nor an exact physical piece count is documented.
