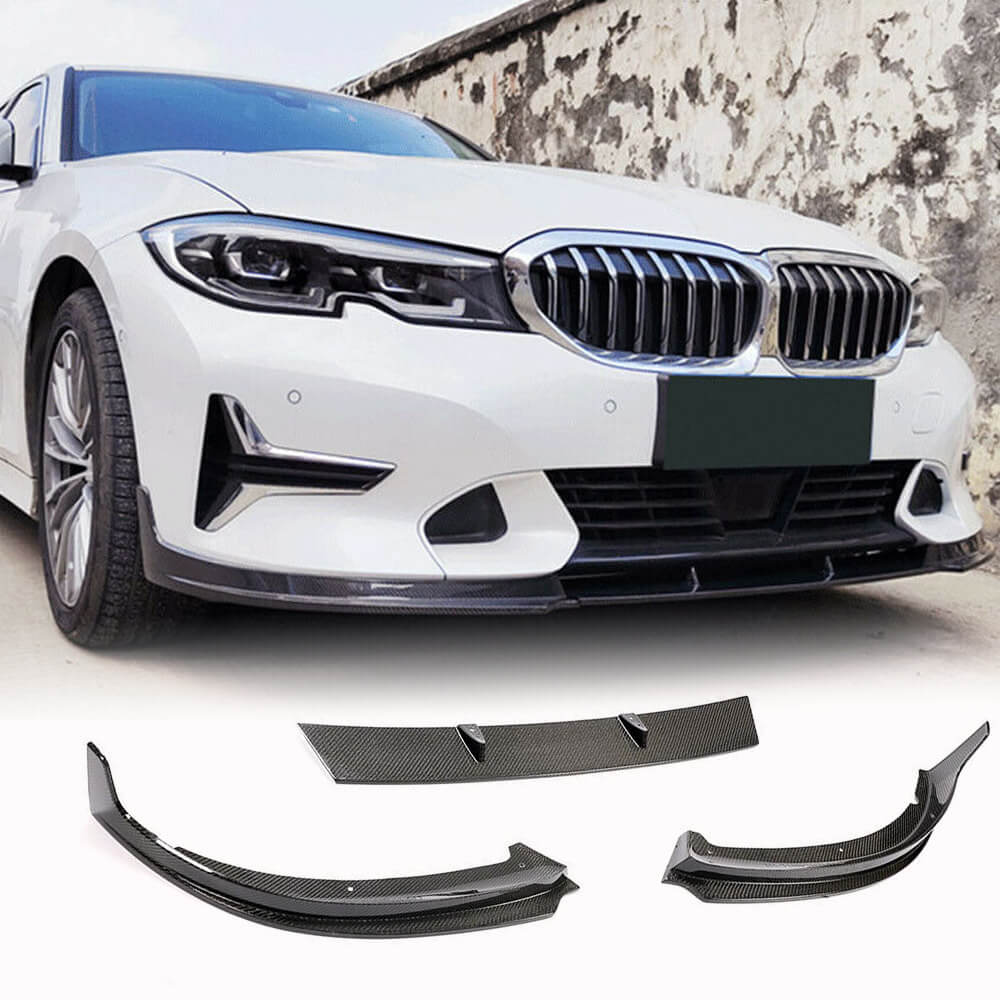

BMW G20 / G28 Base Sedan 3-Piece Front Lip, Carbon Fiber / FRP

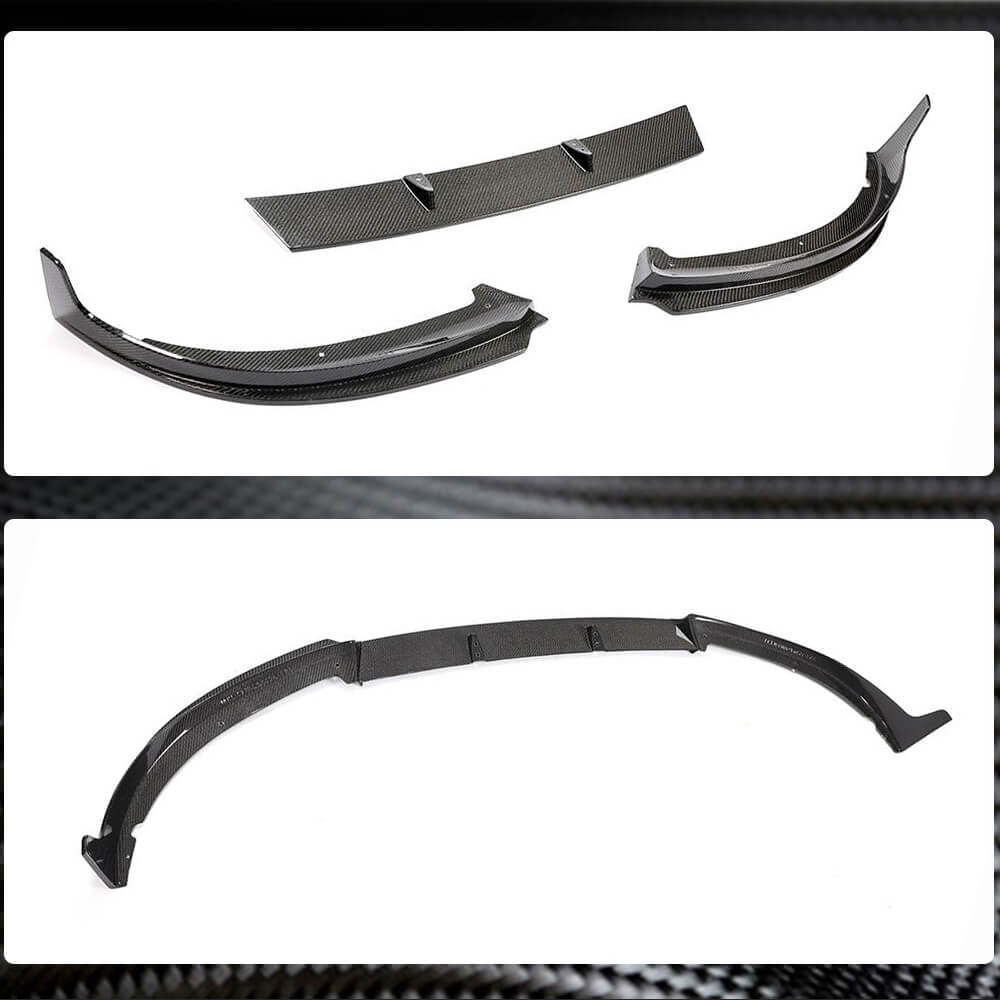

Three-Piece Front Lip for BMW G20 / G28 Base Sedan

Add a defined lower edge to the front bumper with this three-piece splitter design. The source describes left and right winglets with a center section featuring aero-style fins. Choose the actual material option required: Carbon Fiber or Glossy Black FRP. These are alternative versions, not two materials supplied together.

Source-Listed Fitment

• Platform: BMW 3 Series G20 / G28 Base Sedan, four-door.
• Listed models: 318i, 320i, 330i and 330e in the general application text.
• Listed years: 2020–2023.
• Explicit exclusion: BMW G20 M Sport models.

The detailed specification repeatedly names G20/G28 330i, while the broader description also lists 318i, 320i and 330e without a separate chassis/model chart. Confirm the exact model, market, VIN, production date and actual Base bumper before ordering. The combined model list does not establish every engine and chassis combination.

No separate Pre-LCI/LCI compatibility chart is supplied. The 2020–2023 range must not be treated as proof that one lip fits all bumper revisions. Compare the actual lower bumper profile and mounting points, especially near facelift transitions. Confirm G28-specific interfaces rather than assuming equivalence with G20. Converted bumpers, existing lips and altered undertrays require individual assessment.

Do not use this listing to establish M Sport, M340i, G80 M3, Touring or other unlisted body-style compatibility. Drivetrain-specific fitment is not independently mapped in the visible source. Existing search tags or vehicle filters do not replace bumper verification.

Material Options

• Carbon Fiber: The description specifies a glossy carbon fiber appearance with visible weave. Dry versus wet construction, weave pattern and laminate backing are not supplied.
• Glossy Black FRP: A separate FRP material option with a gloss-black finish. Do not treat this selection as genuine carbon fiber or assume it has visible carbon weave.

Resin system, curing method, thickness, coating and UV-protection specifications are not documented for either option. Confirm the finish and construction of the selected version. No measured strength or weight-reduction advantage is established.

Source-Listed Dimensions and Weight

• Total length: 175 cm / 68.9 in.
• “Wing Height”: 47 cm / 18.5 in, using the source's measurement label.
• Listed full-set weight: 0.84 kg for the three-piece set.

The source provides no measurement diagram defining “Wing Height.” Do not interpret 47 cm as installed vertical projection or ground-clearance reduction without clarification. The dimensions and weight are not separately assigned to Carbon Fiber and FRP versions; confirm selected-version measurements before purchase. The quoted weight is source-listed, not independently measured.

Package Scope

The source describes a three-piece front-lip set consisting of left and right winglets plus a center section. It is not a complete bumper or full body kit. Installation screws, brackets, clips, tape, adhesive, templates and tools are not individually itemized as included. Confirm actual contents and required fitting supplies before installation.

Installation and Clearance

Professional installation by a technician experienced with composite exterior parts is recommended. The source does not document the fixing method, drilling requirements, undertray interface or original lower-trim removal and retention requirements. Obtain instructions for the selected material version before starting. The retained video is reference material and does not replace confirmation of the actual part, bumper and fixing method.

• Trial-fit all three sections and check their joints before drilling, bonding, painting or permanent modification.
• Confirm Base bumper contours and mounting-surface contact without forcing the parts into alignment.
• Verify compatibility with retained original trim and the actual undertray.
• Before any instructed drilling, inspect behind the fixing surface for wiring, sensors and other equipment.
• Use the specified mounting components and product-specific fastening guidance. No generic torque value is supplied.
• If adhesive is required, use compatible products on sound, clean and dry surfaces and follow application and curing requirements.
• Keep air openings, fitted lamps, sensors, cameras and tow-point access unobstructed.
• Measure actual clearance after trial-fitting at the vehicle's ride height and check applicable suspension movement.
• Assess approach clearance at ramps, steep driveways, curbs and parking stops, particularly on lowered vehicles.
• Verify secure retention and absence of rubbing or interference before driving.

No universal factory-perfect, bolt-on, no-drill, modification-free or fixed-time installation is promised. Do not use the lip as a step, jack point or tow point. Do not drive with loose sections, cracks or delamination.

Styling and Care

The winglet and center-fin design provides a visual styling change. No test data establishes increased downforce, improved stability, reduced drag, handling, cooling or fuel-economy benefits. This is not an impact-protection device.

Clean with a soft cloth and non-abrasive products compatible with the selected finish. Inspect section joints, underside and attachments periodically and after road contact. Have damaged composite parts or loose fixings assessed before further use.

Frequently Asked Questions

Will it fit a G20 M Sport bumper?
The source explicitly excludes G20 M Sport models. This product is listed for Base bumper applications.

Is Glossy Black FRP the same as carbon fiber?
No. It is a separate material selection; the carbon fiber description must not be applied to the FRP option.

Does the year range verify both facelift versions?
No separate bumper-revision chart is supplied. Confirm the actual profile rather than relying on year alone.

Is the set three pieces?
Yes, a three-piece design is explicitly described in this product's source.

Are fixings supplied?
They are not individually itemized. Confirm required hardware and adhesive before fitting.

What does the 47 cm measurement represent?
The source labels it “Wing Height” but provides no diagram. Confirm its measurement orientation before using it for clearance planning.
