BMW G22 G23 M Sport Carbon Fiber Bonnet / Hood Cover 2021–2023

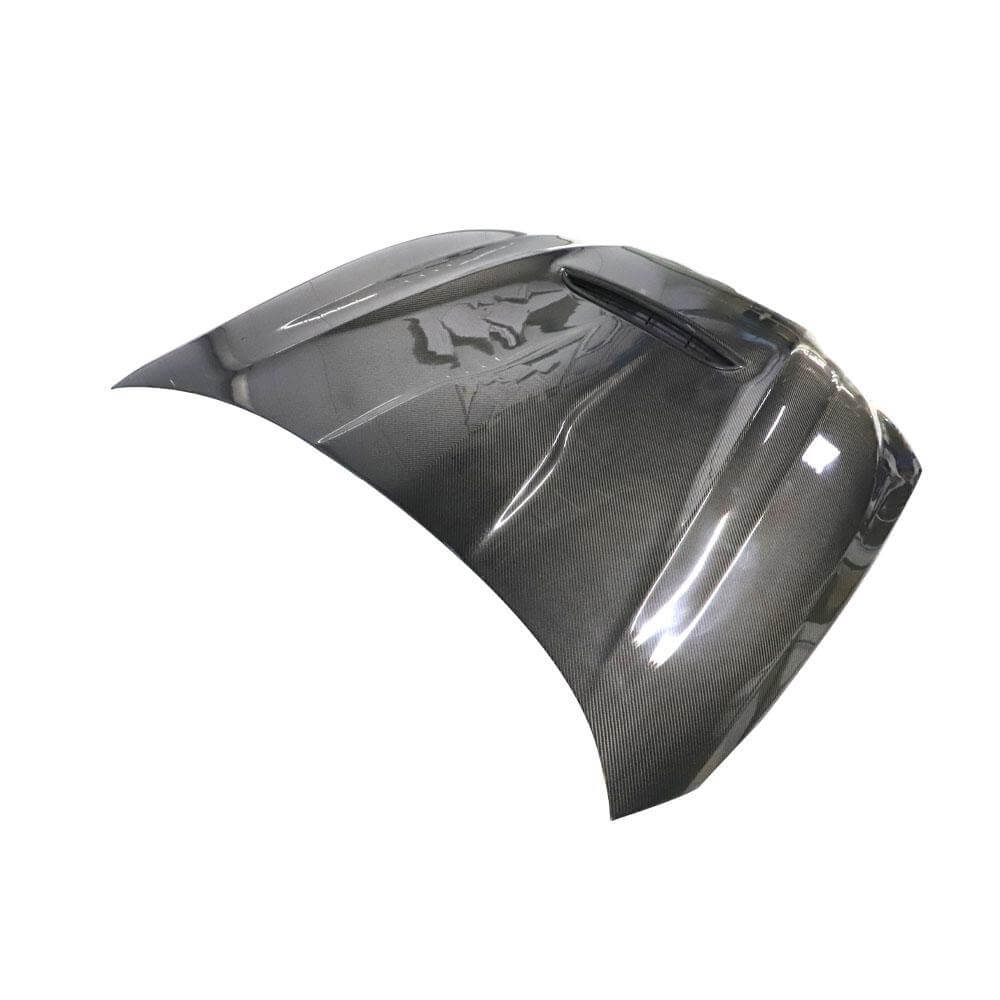

Carbon Fiber Bonnet / Hood Cover for BMW G22 and G23

Add a gloss woven-carbon exterior detail to the bonnet area of your BMW 4 Series. The detailed source specifies 3x3 weave carbon fiber, a double-layer UV-protected clear finish and replacement-style installation using factory screws. The exact assembly scope and safety-critical mounting configuration must be verified before ordering or installation.

Source-Listed Fitment

• Platform: BMW 4 Series G22 / G23.
• Body styles: Coupe and Convertible, respectively.
• Listed models: 420i, 430i and M440i in the source's combined M Sport application list.
• Years: 2021, 2022 and 2023.

This is a combined source application list, not a model-by-model or market-specific production calendar. Confirm VIN, production date, actual platform, body style, bonnet profile and mounting interfaces before ordering. The M Sport wording must be checked against the actual vehicle specification, not inferred from a badge.

Compatibility with Base trim, G26 Gran Coupe, i4, M4 or later model years is not established. Do not transfer fitment from another hood or from a front lip with similar model wording.

Assembly Scope: Verification Required

The source names the product a bonnet/hood cover and describes replacement-style installation using factory screws. It does not document whether the supplied assembly is a complete functional hood, an outer replacement panel or a cover requiring an existing structure. Replacement-style wording alone does not establish the inner frame, hinge reinforcements, latch provisions or complete assembly contents.

Obtain an underside specification and a complete packing and mounting list before purchase. Confirm exactly what is replaced, what original components must be retained, and whether the intended mounting arrangement is suitable for the vehicle. Do not treat this as a verified complete road-ready hood or assume adhesive-overlay installation.

Material and Finish

• Detailed source material: 3x3 weave carbon fiber.
• Source-described double-layer UV-protected gloss clear coating.
• Source-described development using 3D design, CNC moulding and vehicle trial installation.

The original title and URL use the term dry carbon, but the detailed specification identifies only carbon fiber and provides no manufacturing-process verification. Dry-carbon curing, prepreg construction, autoclave use, laminate schedule, inner-frame material and reinforcement specifications are not established. The updated product title therefore uses carbon fiber without presenting dry carbon as a verified process.

No dimensions, measured net weight, quantified weight saving, aerodynamic data, thermal testing or structural certification is supplied. UV protection does not guarantee permanent fade resistance. Improved cooling, downforce, handling, fuel economy, heat resistance or crash performance is not claimed. No functional vent or water-management arrangement is documented.

Listed Installation Information and Contents

• Carbon fiber bonnet/hood cover; the exact assembly scope and physical component count require confirmation.
• Replacement-style installation using factory screws, as stated in the source.

Using factory screws does not mean new screws are included. Hinges, latches, striker hardware, safety catches, gas struts, insulation, seals, washer fittings, reinforcement parts and additional retention devices are not itemized as supplied. Their inclusion, reuse and compatibility must be verified individually. No torque values or complete fitting procedure are provided.

Safety-Critical Professional Installation

1. Have a qualified body and mechanical specialist verify the supplied construction, mounting provisions and compatibility before removing any original hood components.
2. Confirm the correct hinge attachment, reinforcement and load paths. Verify that the bonnet support system is appropriate for the actual assembly; do not assume original gas struts are suitable for a different panel.
3. Check every fitted primary latch, striker, secondary safety catch and release mechanism. All required retention systems must engage fully and release correctly without forcing the panel.
4. Check any fitted active bonnet or pedestrian-protection equipment, sensors and wiring. Do not disable, bypass or relocate safety equipment to accommodate an incompatible part.
5. Trial-fit and check panel gaps, opening travel, windscreen and wiper clearance, surrounding bodywork, engine-bay clearance and closure alignment. Verify seals, drainage and any retained insulation or washer components.
6. Use only the verified structural fastening arrangement and specified tightening procedure. Adhesive tape and ordinary self-tapping screws are not substitutes for engineered hood retention. No such adhesive or self-tapping installation is specified for this product.
7. Before driving, have the installer verify secure retention, reliable closure, full safety-catch function and any relevant diagnostic or equipment checks. Do not use road speed as a way to test uncertain retention.

Do not install or drive if the assembly scope, latch compatibility, structural fixing or safety-system operation cannot be verified. No perfect-fit, no-modification or fixed installation-time guarantee is established. No road-use approval or crash/pedestrian-protection equivalence is documented.

Care and Inspection

Use a soft cloth and non-abrasive products compatible with the gloss finish. Avoid strong solvents and excessive concentrated pressure. Follow the verified opening and closing procedure; do not slam or load the panel. Inspect the composite, mounting areas and closure systems regularly and after impact. Stop using the vehicle if cracks, loose fixings or unreliable latching appear.

Frequently Asked Questions

Is this definitely a complete replacement hood?
No complete structural scope is supplied. The source describes replacement style but does not establish whether the item includes a complete hood assembly, an outer panel or another cover configuration.

Is dry carbon independently documented?
Dry carbon appears in the original title and URL. The detailed specification provides only 3x3 weave carbon fiber, so the production process requires confirmation.

Are new factory screws included?
The source says to use factory screws, not that new screws are supplied.

Are latches, hinges and gas struts included or verified?
No itemized supply or compatibility information is provided. Verify each required component and safety function.

Does M440i fitment establish all G22/G23 versions?
No. The source lists 420i, 430i and M440i within a 2021–2023 M Sport application. Confirm the exact vehicle and mounting geometry.

Does it guarantee lower weight or better cooling?
No supporting weight comparison, vent specification or cooling test data is supplied.
