BMW G30 LCI M Sport M550i M550d Carbon Fiber Front Lip 2021–2023

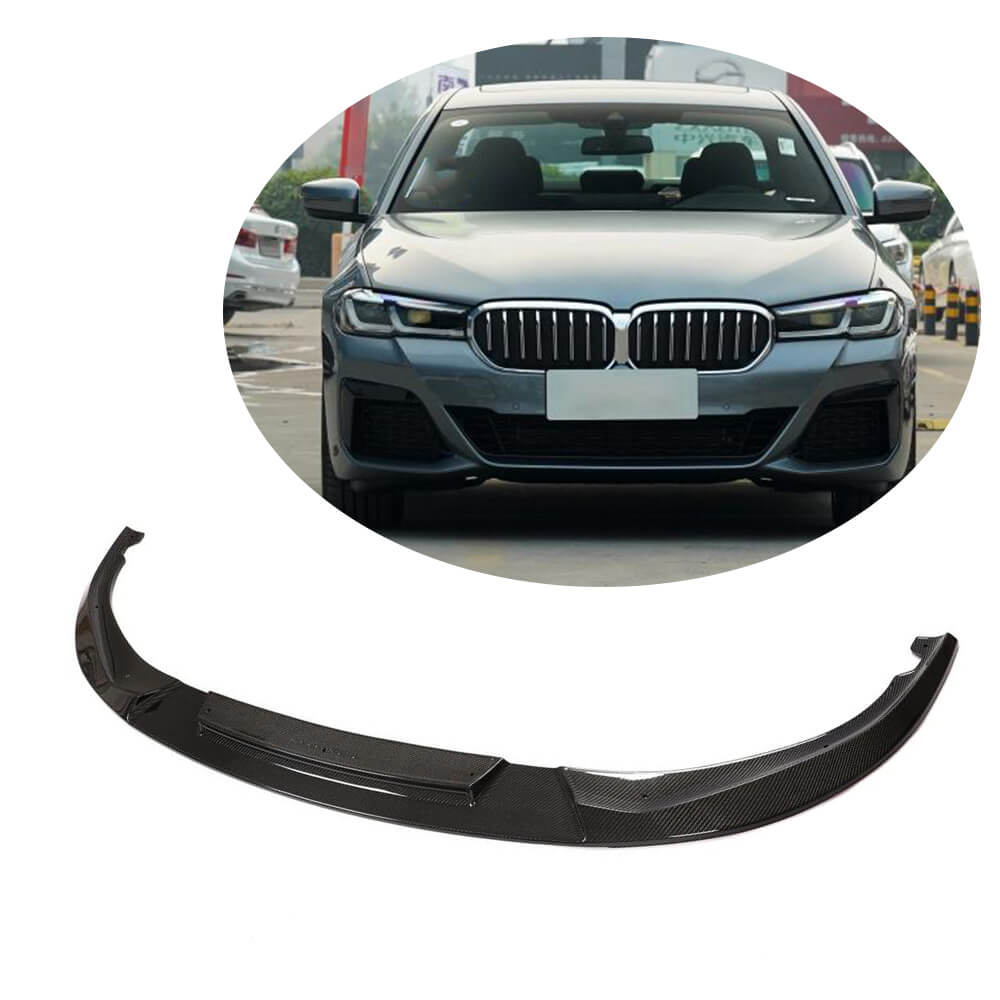

Carbon Fiber Front Bumper Lip for BMW G30 LCI

Give the lower front edge of your G30 a defined gloss woven-carbon accent. This front bumper lip is source-listed for selected BMW 5 Series G30 LCI M Sport sedans and M550i/M550d applications, with self-tapping screws and tape included.

Listed Fitment

• BMW 5 Series G30 LCI Sedan, described in the introduction as four-door.
• M Sport models listed: 520i, 530i, 540i, 520d, 525d, 530d and 540d.
• M550i and M550d are also listed.
• Detailed fitment years: 2021, 2022 and 2023.
• Explicit exclusion: G30 Base models.

The detailed 2021–2023 LCI range is used instead of the original title's incomplete 021UP wording or the introduction's open-ended 2021UP claim. The source combines engines and years without proving every model/market combination. Confirm VIN, production date, exact bumper shape and lower mounting interface, especially for the listed M550d application.

No drivetrain-specific compatibility matrix is supplied; xDrive in the URL does not establish all-wheel-drive-only or all-drivetrain fitment. Pre-LCI vehicles, G31 Touring, F90 M5, later-generation models, unlisted engines and aftermarket bumper conversions are not established applications. Tags mentioning earlier years or other engines are not fitment evidence. Do not treat M Sport, M550i and M5 bumpers as interchangeable.

Material, Finish and Development

• Source-specified 3×3 weave carbon fiber.
• Hand-laid construction using pre-impregnated carbon fiber cloth and epoxy resin, as described in the source.
• Gloss finish with source-described double-layer UV-protected clear coating.
• Development described as 3D laser scanning, CAD design, CNC molding and vehicle trial installation.

Pre-impregnated cloth does not by itself establish a dry-carbon manufacturing process. No dry-carbon, forged-carbon or carbon-only laminate claim is made. Backing composition, laminate thickness, dimensions and measured net weight are not supplied.

UV protection does not guarantee permanent gloss or freedom from fading. Development and trial-fitting statements do not guarantee perfect fit on every vehicle. No supporting test data establishes reduced front lift, added downforce, improved traction, handling or aerodynamic efficiency, so those claims are not made. This item is presented as an exterior styling accessory, not a crash-protection component.

Package and Mounting

Self-tapping screws and tape are listed as included. Exact quantities, screw dimensions, tape brand and thickness, pre-application status and a complete packing breakdown are not supplied. The source does not establish an exact physical lip piece count, brackets, reinforcement plates or other individually supplied hardware.

The intended attachment combines mechanical fastening and tape, but the source does not provide a mounting-point diagram or prove that factory holes can be reused. Included self-tapping screws do not establish a no-drilling installation. Tape inclusion does not establish pre-applied adhesive or sufficient retention without appropriate mechanical attachment. Confirm whether any original lower trim must remain or be removed before fitting.

Professional Installation Guidance

1. Inspect and trial-fit the complete supplied item before drilling or removing tape backing. Confirm the correct LCI bumper, symmetric alignment, end positions and full mating-surface contact without forcing the composite.
2. Check ground clearance, driveway approach angles and clearance around the undertray, wheel liners and nearby components. A front lip can reduce usable clearance; no installed dimensions are supplied.
3. Keep cooling inlets, ducts, tow-access provisions, parking sensors, cameras and driver-assistance equipment unobstructed. Verify the actual equipment layout rather than assuming compatible operation from exterior appearance.
4. Confirm secure mounting points and check behind any proposed hole for wiring, hoses, sensors and structural components. Follow a verified installation procedure; no torque values or fastening layout are supplied.
5. Clean and dry adhesive contact areas using finish-compatible products. Follow the actual tape manufacturer's surface-preparation, application-temperature, pressure and curing instructions. Do not assume a fixed cure time.
6. Complete the verified mechanical attachment and adhesive procedure. Check retaining points, panel gaps and clearances before driving. Perform equipment diagnostics or calibration if required by the vehicle's service procedure.
7. Reinspect after initial use and periodically thereafter, especially following scraping, impact or bodywork. Do not drive with loose, cracked or lifting components.

Professional installation is recommended. Do not use the lip as a step, lifting point or towing attachment. Do not improvise modifications to protected vehicle systems to make an incompatible part fit.

Care

Use a soft cloth and non-abrasive cleaning products compatible with the gloss coating. Avoid aggressive solvents and close-range high-pressure water at edges and attachment points. Follow tape-specific washing restrictions during curing. Inspect the laminate, coating and fasteners for damage or loosening.

Frequently Asked Questions

Which years are listed?
The detailed source specifies G30 LCI 2021–2023. Open-ended 2021UP wording does not establish additional years.

Does it fit a Base bumper or F90 M5?
G30 Base is explicitly excluded. F90 M5 fitment is not established.

Are M550i and M550d listed?
Yes, but the source does not map each model to every year and market. Verify the specific vehicle and bumper.

Is it dry carbon?
A dry-carbon process is not established. The source describes hand-laid pre-impregnated carbon fiber cloth with epoxy resin.

Are tape and screws included?
Yes, self-tapping screws and tape are listed. Exact quantities and specifications are not provided.

Does it require drilling?
No complete fitting diagram is supplied. Self-tapping screws do not prove existing-hole compatibility; have the installer verify mounting requirements.

How many pieces are included?
The source does not document an exact physical piece count.

Does it improve downforce or handling?
No supporting test data is supplied, so no performance improvement is claimed.
