BMW G14 G15 G16 M Sport M850i xDrive Carbon Front Lip 2020–2022

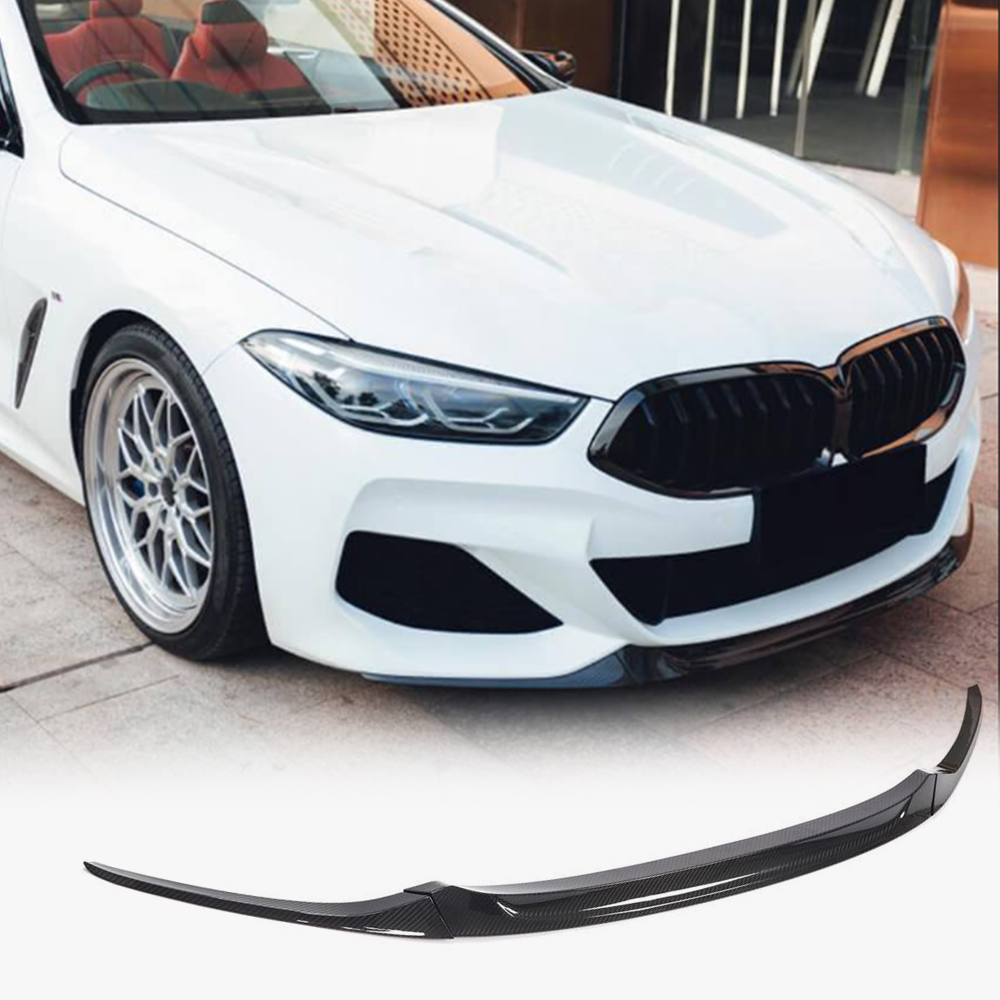

Carbon Fiber Front Lip for BMW 8 Series G14 / G15 / G16

Give your 8 Series front bumper a gloss woven-carbon accent. This front lip is listed for selected 2020–2022 G14, G15 and G16 M Sport applications and M850i xDrive models. Confirm the actual bumper and production configuration before ordering.

Listed Fitment

• BMW 8 Series G14, G15 and G16.
• Source-listed applications: 840i and 840d M Sport, plus M850i xDrive.
• Source-listed body styles: Coupe, Convertible and Sedan; two-door and four-door configurations are referenced collectively.
• Years: 2020, 2021 and 2022.
• Explicit source exclusion: Base models.

The original model string repeats 840i and combines chassis, engines and body styles rather than providing an individual compatibility matrix. It does not establish every engine/body/year combination. Verify VIN, production date, market, original bumper profile, lower mounting interface and installed equipment. Do not assume rear-wheel-drive and xDrive variants are interchangeable where the source does not specify drivetrain.

Confirm the M Sport bumper configuration for 840i/840d and the actual M850i xDrive front bumper. Base-bumper vehicles, M8, other chassis, unlisted years and aftermarket bumper conversions are not established applications. Production revisions within 2022 require individual verification rather than an assumed facelift compatibility claim.

Material and Finish

• Source-specified 3×3 weave carbon fiber.
• Authentic hand-laid carbon fiber material described with pre-impregnated carbon fiber cloth and epoxy resin.
• Gloss finish with source-described double-layer UV-protected clear coating.
• Development described as 3D laser scanning, CAD design, CNC molding and vehicle trial installation.

The previous name and URL use “dry carbon,” but the detailed material information establishes prepreg cloth and epoxy, not a separately verified dry-carbon curing process. Prepreg alone does not establish dry-carbon manufacturing. This listing therefore retains the documented construction without an unverified dry-carbon claim.

Carbon-only laminate composition, backing material, layer thickness, dimensions and measured net weight are not provided. UV protection does not guarantee permanent gloss or freedom from fading or discoloration. Exact weave or color matching to other carbon parts is not guaranteed. Scanning, CAD and trial installation do not guarantee perfect fit on every vehicle.

Styling and Package Scope

This item is a front bumper lip styling component, not a complete bumper or a confirmed body kit. No supporting test data establishes increased downforce, reduced front-end lift, reduced drag, improved traction or handling, or quantified weight savings.

Self-tapping screws and tape are explicitly listed as included. Exact quantities, screw dimensions, tape brand, thickness and pre-application status are not specified. Physical lip piece count, section layout and a complete packing breakdown are not supplied. Additional brackets, clips or reinforcement components are not individually confirmed as included.

The source does not define the full original-part retention or removal procedure. Included self-tapping screws do not establish existing-hole compatibility or drilling-free installation. Tape inclusion does not prove pre-applied adhesive or sufficient retention without verified mechanical fastening. No full mounting diagram or torque values are supplied.

Professional Installation Guidance

1. Confirm the individual vehicle and bumper configuration. Inspect and trial-fit all supplied sections before drilling or removing adhesive backing.
2. Check the lip contour, panel gaps, end alignment and mounting surfaces without forcing the composite. Verify clearance to underbody panels and any fitted air-management components.
3. Preserve cooling openings, active air shutters, cameras, radar, parking sensors, tow access and service access. Matching exterior shape does not establish compatibility with these systems. Do not disable or bypass original equipment to fit an incompatible part.
4. Verify suitable fastening locations and inspect behind proposed holes for wiring, sensors, lines and other components. Use a verified attachment procedure rather than treating the supplied materials as a complete installation plan.
5. Clean and dry adhesive contact surfaces with finish-compatible products. Follow the actual tape manufacturer's preparation, application-temperature, pressure and curing requirements; do not assume a fixed cure time.
6. Complete the verified mechanical and adhesive attachment. Check ground clearance, all retaining points and affected equipment before driving. Perform diagnostics or calibration where required by the vehicle's service procedures.
7. Reinspect periodically and after scraping, impact or nearby bodywork. Do not drive with loose, cracked or lifting components.

Professional installation is recommended. The lip is not a step, towing attachment, structural support or lifting point. Allow extra clearance at curbs, ramps and steep driveways.

Care

Use a soft cloth and non-abrasive cleaning products compatible with the gloss coating. Avoid aggressive solvents and close-range high-pressure water at edges and fasteners. Observe the actual adhesive's washing restrictions during curing. Inspect periodically for cracks, coating damage, lifting and loose attachments.

Frequently Asked Questions

Does it fit a Base bumper?
No. The source explicitly excludes Base models; verify the individual bumper profile before ordering.

Is 840d included?
The detailed source lists 840d M Sport alongside 840i M Sport and M850i xDrive. Individual year, market and body combinations still require verification.

Is it confirmed dry carbon?
The detailed construction names hand-laid prepreg cloth and epoxy. A separately verified dry-carbon process is not established.

Are screws and tape included?
Yes. Self-tapping screws and tape are specifically listed, without detailed quantities or specifications.

Is it one piece or drilling-free?
Neither an exact piece count nor existing-hole compatibility is documented.

Does it fit 2019 or every 2022 bumper revision?
The visible source lists 2020–2022. Older hidden filtering does not establish 2019 fitment, and production-specific revisions require individual verification.
