BMW X3 G01 M40i Carbon Fiber Rear Bumper Diffuser 2022+

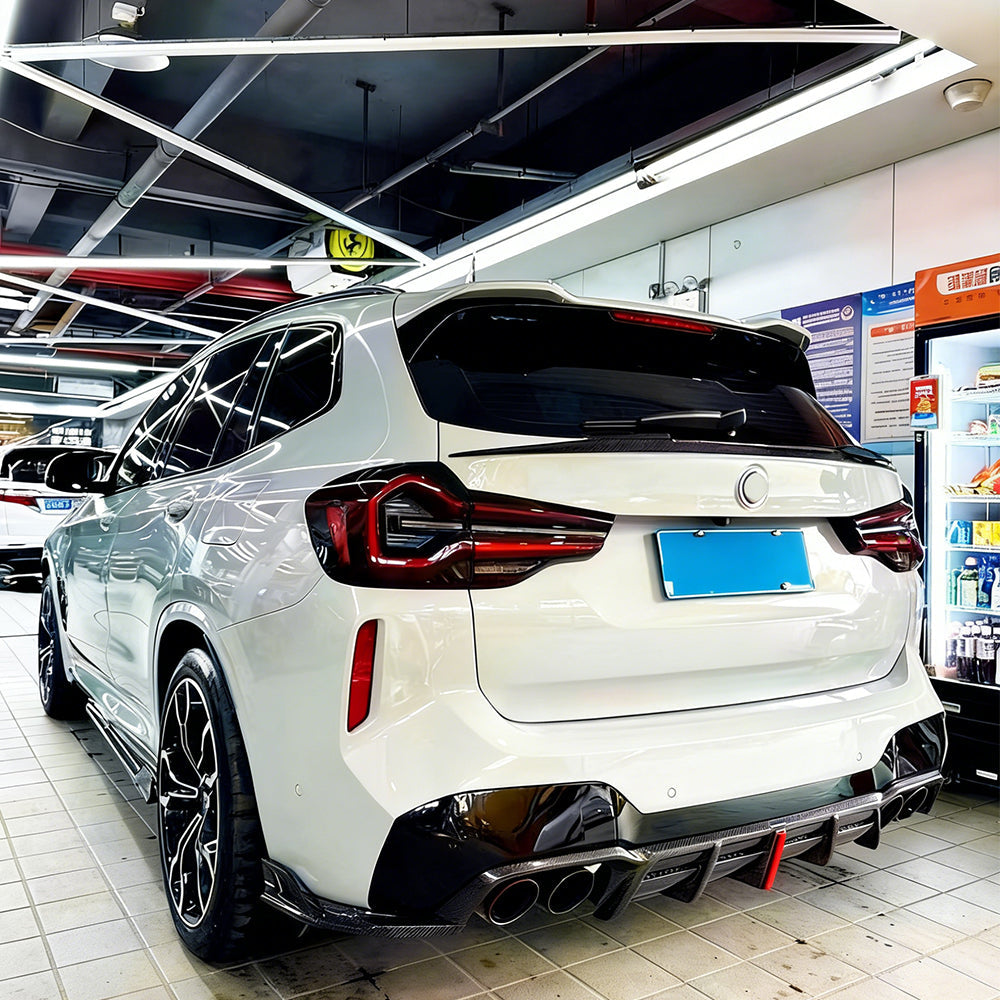

Carbon Fiber Rear Diffuser for BMW X3 G01 M40i

Add a gloss woven-carbon accent to the lower rear bumper of your X3. This rear diffuser is described as a replacement for the factory plastic diffuser on the source-listed 2022+ G01 M40i Sport Utility, rather than an overlay or complete bumper assembly.

Listed Fitment

• BMW X3 G01 M40i.
• Body style: four-door Sport Utility.
• Source-listed year range: 2022+.

Confirm VIN, production date, market, actual M40i rear bumper, original diffuser interface and exhaust layout before ordering. The open-ended year notation does not independently establish every later model year, bumper version or generation. No detailed drivetrain or equipment-configuration compatibility matrix is supplied.

The visible fitment starts at 2022+, while the existing hidden vehicle-filter entries refer to 2018–2021 G01 M40i. Those earlier entries conflict with the visible range and are not treated as confirmed compatibility. Verify earlier applications separately rather than relying on filter results.

Other X3 engines or trims, F97 X3M, X4, other chassis and aftermarket bumper conversions are not established applications. Similar exterior styling or an M Sport designation does not prove compatibility with this M40i-specific listing.

Material and Finish

• Source-described 3×3 carbon fiber construction.
• High-gloss coating with source-described UV resistance.

Dry-carbon or prepreg construction, resin chemistry, carbon percentage, backing material, laminate thickness, dimensions and measured net weight are not supplied. The source does not specify a double-layer coating for this item; that detail is not inferred from other diffusers. UV resistance does not guarantee permanent gloss or freedom from fading.

No performance test results are supplied for increased downforce, reduced drag, improved handling or quantified weight savings. Lightweight/high-strength wording is not presented as a measured specification. This item is described as an exterior styling accessory, not a proven aerodynamic upgrade.

Replacement Scope and Included Hardware

The source describes replacing the factory plastic diffuser. Confirm which original clips, shields, supports, reflectors and equipment must remain or transfer, and whether bumper removal is necessary. This is not a structural impact component or complete bumper.

• Self-tapping screws are listed as included.

Exact screw quantities, sizes, approved fixing positions and torque values are not supplied. Tape, adhesive, brackets, newly supplied factory clips, exhaust tips and pipes are not itemized as included. Exact physical piece count and section arrangement are not documented.

The source uses bolt-on wording while listing self-tapping screws, but does not provide the actual fastening procedure. This does not establish use of existing threaded holes or a no-drilling installation. Original no-cutting, no-modification, quick-installation and guaranteed-fit statements are not retained as universal promises.

Exhaust and Rear Equipment Checks

Outlet count, shape, dimensions and spacing are not documented. Compare the supplied part with the actual exhaust tips, pipes and decorative surrounds. Do not assume compatibility with a particular dual or quad outlet arrangement.

Maintain appropriate clearance for exhaust heat and movement, preserving required heat shields. Exhaust pipes and tips must remain independently supported through their proper mounts. The diffuser must not carry exhaust loads or rest against hot components; the gloss coating does not establish a heat-resistance rating.

Verify any fitted parking sensors, radar-related equipment, cameras, reflectors, tow equipment, access covers and hands-free tailgate/kick-sensor hardware. Function retention is not confirmed by the source. Do not cover, relocate or bypass original systems to accommodate an incompatible part. Follow the vehicle's service procedures for diagnostics and function checks.

Professional Installation Guidance

1. Secure the vehicle and allow the exhaust to cool. Identify the actual bumper, factory diffuser and rear equipment before dismantling.
2. Inspect the part and hardware, then trial-fit all sections before drilling or final attachment. Check mounting alignment, panel gaps and exhaust openings without forcing the composite.
3. Confirm original-part removal and transfer requirements. Inspect factory clips and mounting points for damage, preserving shields, drainage and service access.
4. Verify approved screw positions and the substrate behind them. Avoid wiring, lines, equipment and structural components. No drilling template, pilot-hole specification or torque values are supplied; obtain the correct procedure rather than improvising.
5. Complete the verified attachment method. Do not substitute adhesive or improvised hardware for required retention.
6. Check exhaust heat/movement clearance and independent support. Restore relevant equipment and verify applicable tailgate and sensor functions before driving.
7. Reinspect periodically and after washing, impact, exhaust work or bumper service. Do not drive with loose trim, exhaust contact, mounting damage or unresolved interference.

Professional installation is recommended. Never reach near hot or moving components to inspect clearances.

Care

Clean after the exhaust and adjacent surfaces have cooled. Use a soft cloth and non-abrasive products compatible with the gloss coating. Avoid aggressive solvents and close-range high-pressure water at joints and retaining points. Inspect the laminate, finish and mounts for cracks, loosening and heat-related changes.

Frequently Asked Questions

Does this fit 2018–2021 M40i vehicles?
The visible source fitment starts at 2022+. Earlier hidden-filter entries do not establish compatibility and require separate verification.

Does it fit every X3 M Sport or X3M?
No such broad compatibility is supplied. This item is listed specifically for G01 M40i.

Is this a replacement or overlay?
The source describes replacing the factory plastic diffuser. Confirm the actual removal and transfer procedure.

Are tape or exhaust tips included?
Neither is itemized. Self-tapping screws are the explicitly listed supplied hardware.

Does bolt-on mean no drilling?
No. The source lists self-tapping screws without a detailed fastening procedure.

Is this dry carbon with a double-layer coating?
Neither detail is established for this item. The source specifies 3×3 carbon fiber with a UV-resistant high-gloss coating.

Will hands-free tailgate operation be retained?
No equipment-specific confirmation is supplied. Check any fitted sensor arrangement and verify operation after installation.

How many pieces are included?
An exact physical piece count and packing breakdown are not supplied.
