BMW X3/X4 M Sport & X3M/X4M Carbon Side Skirt Extensions 2019–2021

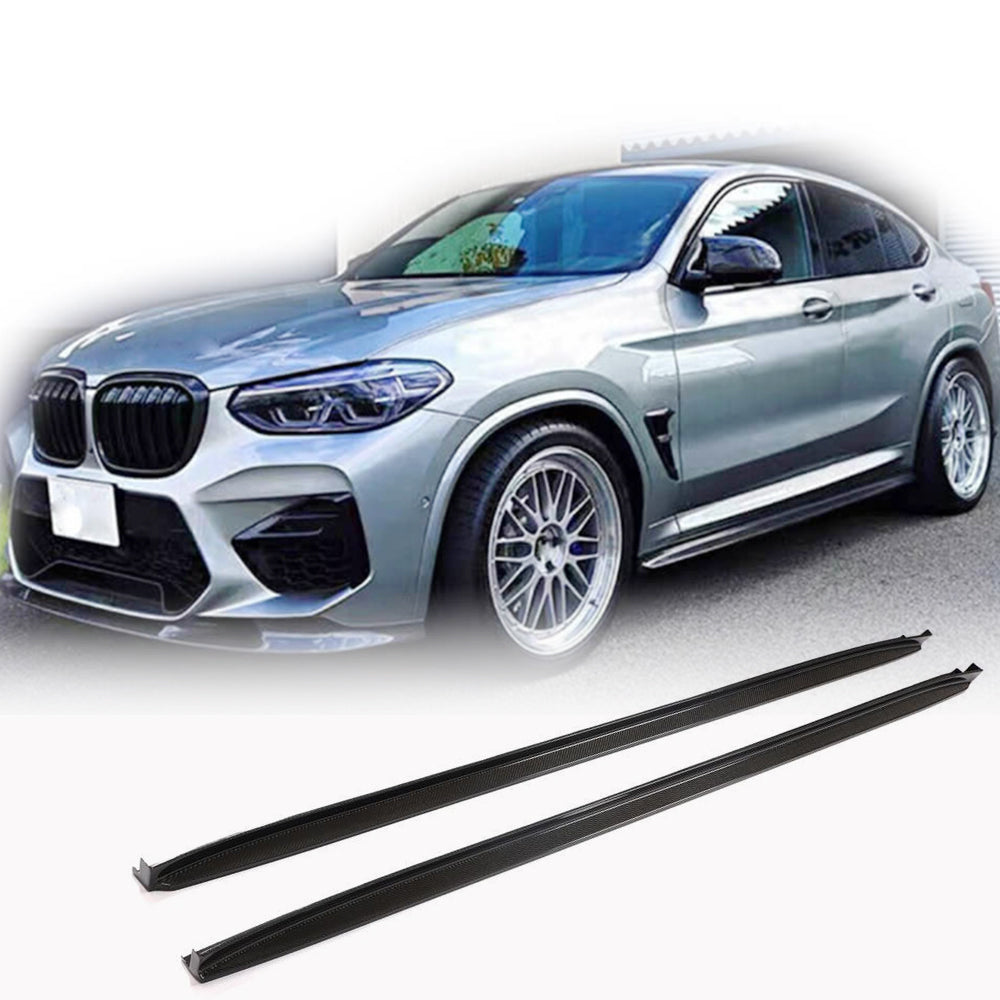

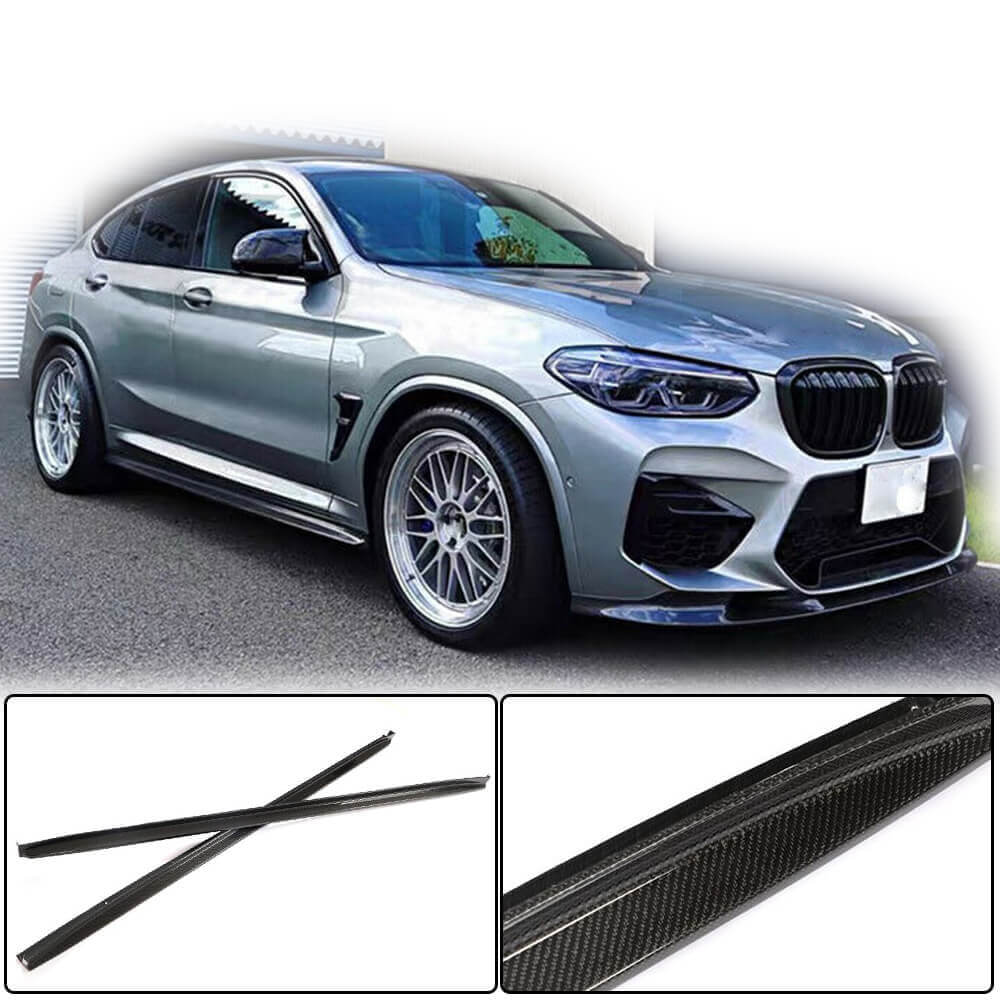

Carbon Fiber Side Skirt Extensions for BMW X3 / X4 M Sport and X3M / X4M

Add a gloss woven-carbon accent along the lower sides of your BMW. This item's source describes extensions mounted to the existing side skirts, using 3x3 weave carbon fiber reinforced with a glass-fiber composite. Two Style options distinguish whether courtesy-light holes are present.

Source-Listed Fitment

• BMW X3 G01 M Sport.
• BMW X4 G02 M Sport.
• BMW X3M F97.
• BMW X4M F98.
• Combined years: 2019, 2020 and 2021.

The detailed fitment and introduction combine these platforms, while the installation narrative and URL focus on F97/F98. This combined listing does not independently establish identical side-skirt interfaces or every model/year combination. Confirm VIN, production date, actual original side skirts, mounting surfaces and courtesy-light equipment before ordering, especially the starting-year and 2021 production configurations.

No separate market, engine, Competition or pre-LCI/LCI application map is supplied. Non-M Sport G01/G02 trims, other chassis, aftermarket side skirts and years outside 2019–2021 are not established applications. Badges and registration year alone do not prove compatibility.

Style Options: Courtesy-Light Holes

• with courtesy light hole: Source option naming indicates provision for a courtesy-light hole.
• without courtesy light hole: Source option naming indicates no courtesy-light hole.

Select the option matching the actual vehicle and intended mounting arrangement. Hole count, dimensions, location and light-unit compatibility are not documented. A hole option does not mean courtesy lamps, projectors, wiring, brackets or controllers are included. It does not establish a lighting retrofit or electrical compatibility.

Confirm that any original lamps remain securely retained and their light path is unobstructed. Do not use the no-hole option to cover required access or equipment, or improvise cutting to correct a mismatched selection. The two options are retained as listed; their prices and other variant settings are not changed.

Construction and Finish

• Source-specified 3x3 weave carbon fiber.
• Glass-fiber composite reinforcement, explicitly described in the introduction.
• High-gloss lacquer with hand and machine polishing, as described by the source.
• Double-layer UV-protected clear coating.
• Source-described development using 3D design, CNC moulding and vehicle trial installation.

The source also describes a final protective clear-coat/wax finishing step without a detailed coating-system specification. No dry/wet process, prepreg construction, resin chemistry, curing method, laminate thickness, dimensions or measured net weight is supplied. Glass-fiber reinforcement means this should not be represented as an all-carbon laminate.

UV protection does not guarantee permanent resistance to fading. Development methods do not guarantee identical fit on every vehicle. No aerodynamic or comparative weight test results are supplied. Increased downforce, improved handling, reduced drag, fuel savings and quantified weight reduction are not claimed.

Supply and Mounting Scope

• Carbon fiber side skirt extensions in the selected Style.
• Self-tapping screws.
• Installation tape.

The source does not explicitly state physical piece count, left/right coverage or sub-sections. Do not infer an exact pair from plural wording. Confirm the actual packing list. Screw quantities, tape grade, pre-application status, brackets, clips and complete hardware allocation are not documented.

The extensions attach to existing side skirts according to the source. They are not structural rocker replacements, running boards or lifting supports. Front lips and rear diffusers are mentioned as matching styling pieces, not included contents. Courtesy-light equipment is not itemized as supplied.

Professional Installation

1. Verify the exact chassis, trim, production details, original side skirts and selected courtesy-light-hole option. Inspect attachment areas for damage, repairs, coatings or modifications.
2. Identify the supplied components and trial-fit before exposing adhesive or drilling. Check full contour, contact surfaces and attachment alignment without forcing the composite.
3. Check door movement, ground clearance, drainage, courtesy-light clearance and service access. Keep original lifting points accessible. Do not improvise mounting into reinforced structural areas.
4. Inspect behind proposed screw locations for wiring, lines and other equipment. Included self-tapping screws do not establish a no-drill fit. No drilling template or torque specification is supplied.
5. Clean and fully dry compatible bonding surfaces. Follow the tape manufacturer's application temperature, pressure and full curing requirements. Included tape is not necessarily pre-applied.
6. Use the verified fastening arrangement without crushing or overtightening the laminate. Tape alone must not replace required mechanical retention.
7. Verify secure attachment, door movement, relevant lighting and operating clearances before driving. Inspect periodically and after scraping or impact.

Professional installation is recommended. The source's one-hour and no-modification wording is not treated as a universal installation promise. Do not drive with loose sections, cracked mounting areas or interference with equipment. Do not step on the extensions or use them as jack points.

Care

Clean with a soft cloth and non-abrasive products compatible with the gloss coating. Avoid strong solvents and high-pressure water directed closely at edges and bonded areas. Observe adhesive curing requirements before washing. Inspect the finish, laminate and attachment points regularly, especially after ground contact.

Frequently Asked Questions

Are these complete replacement side skirts?
The source describes extensions mounted to the existing side skirts, not structural rocker replacements.

Are M Sport and full M models independently mapped?
They appear together in the source list, but no separate interface or model-year map is supplied. Verify the actual vehicle.

Does the courtesy-light-hole option include lights?
No lamps or electrical accessories are itemized. The option names describe hole provision only.

Is this dry carbon?
No dry-carbon process is specified. The source lists 3x3 carbon fiber with glass-fiber composite reinforcement.

Are screws and tape included?
Both are listed, without quantities or tape specifications.

How many pieces are supplied?
The source does not explicitly state physical packing count or side coverage. Confirm the packing list.
