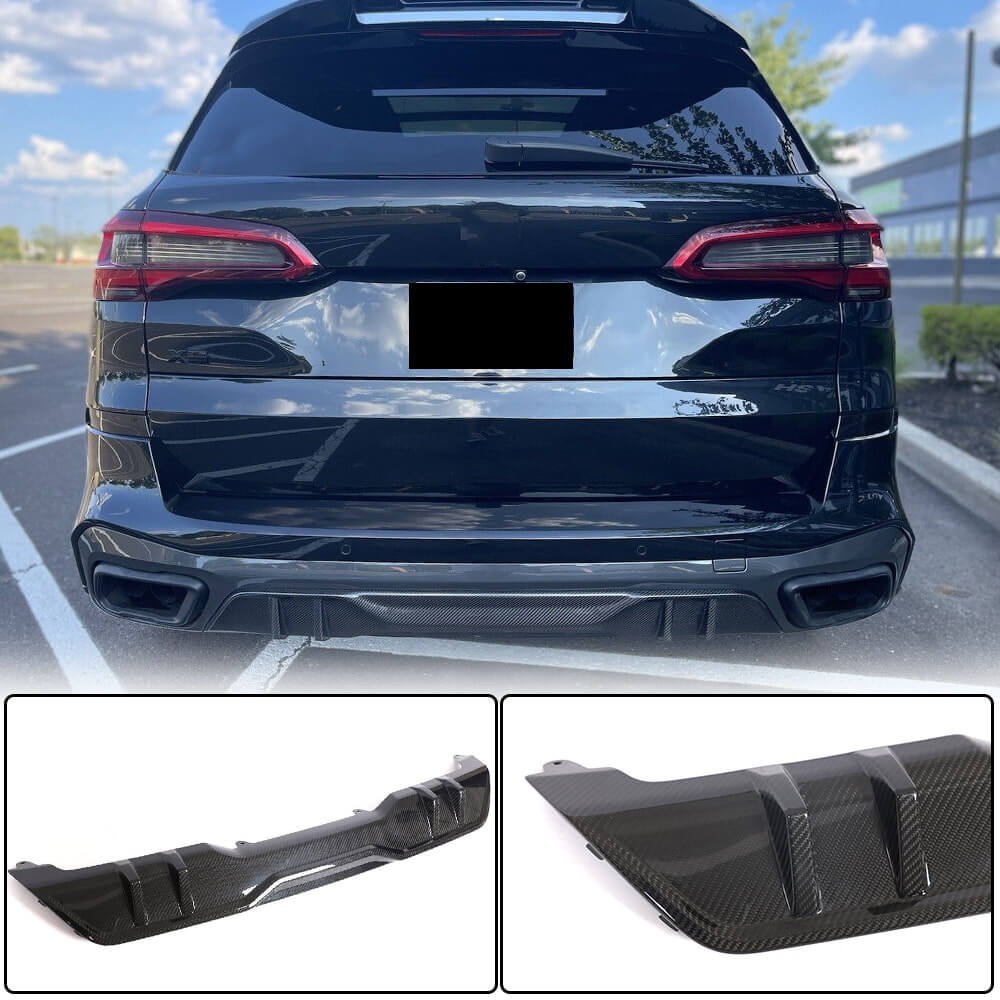

BMW X5 G05 M Sport Carbon Fiber Rear Diffuser 2019–2022

Carbon Fiber Rear Diffuser for BMW X5 G05 M Sport

Add a gloss woven-carbon accent to the lower rear bumper of your X5. This rear diffuser is described as a replacement for the factory plastic diffuser on the source-listed G05 M Sport applications, rather than an overlay or complete bumper assembly.

Listed Fitment

• BMW X5 G05 with M Sport rear bumper configuration.
• Models listed together: xDrive40i, xDrive50i, xDrive30d and M50d.
• Body style: four-door Sport Utility.
• Detailed listed years: 2019, 2020, 2021 and 2022.
• Explicit source exclusions: Base and X5M models.

The introduction and URL use 2019UP, but the detailed fitment ends at 2022. This listing uses the bounded 2019–2022 range and does not establish later-year or facelift compatibility. M Sport / M Tech naming is not proof of compatibility with every bumper sold under either label.

Confirm the VIN, production date, market, actual M Sport rear bumper and factory diffuser interface. The combined model/year list does not establish that every listed engine variant is compatible in every year or market. X5M, non-M-Sport bumpers, other chassis and aftermarket bumper conversions are not established applications.

Material and Finish

• Source-specified 3×3 weave carbon fiber.
• Gloss finish with source-described double-layer UV-protected clear coating.
• Development described as 3D design, CNC molding and vehicle trial installation.

Dry carbon appears in the original title but is not established by the detailed construction information. No dry-carbon, prepreg, resin chemistry, laminate thickness, carbon percentage or backing-material specification is asserted. Genuine-carbon wording describes the source's material claim, not genuine BMW manufacture or original-equipment certification.

The coating description does not guarantee that the finish will never fade or discolor. No measured net weight, quantified weight reduction or performance test results are supplied. Improved airflow, reduced drag, downforce and handling gains are not claimed. Trial-fit and manufacturing-process descriptions are not a universal fitment guarantee.

Replacement Scope and Included Hardware

The source describes removing the factory plastic diffuser and fitting this replacement-style part. Confirm the original components that must remain or transfer, including clips, supports, shields and any fitted equipment. This is not a structural bumper or impact component.

• Self-tapping screws are listed as included.

Exact screw quantities, sizes, mounting locations, torque values and a complete packing breakdown are not supplied. Tape, adhesive, brackets and newly supplied factory clips are not itemized as included. No exact physical piece count or one-piece construction is confirmed. Self-tapping screws do not establish a no-drilling procedure.

Exhaust and Rear Equipment Verification

Outlet count, dimensions, spacing and compatibility with specific exhaust-tip arrangements are not documented. Compare the actual diffuser openings with the vehicle's exhaust and any existing decorative surrounds. Exhaust tips, pipes and their mounting hardware are not itemized as included.

Maintain appropriate clearance for exhaust heat and movement. Keep required heat shields in place and support exhaust pipes and tips through their proper independent mounts. The diffuser must not carry exhaust loads or contact hot exhaust components; a gloss carbon surface is not a heat-resistance certification.

Check compatibility with any fitted parking sensors, radar-related equipment, cameras, reflectors, tow equipment, access covers and hands-free tailgate/kick-sensor hardware. The source does not confirm retention of these functions. Do not obstruct, relocate or bypass original equipment to accommodate an incompatible part. Complete required diagnostic or functional checks using the vehicle's service procedures.

Professional Installation Guidance

1. Secure the vehicle and allow the exhaust to cool. Identify the actual bumper, diffuser mounting interface and rear equipment before removal.
2. Inspect the supplied part and hardware. Trial-fit before drilling or final attachment; check all mounting points, panel gaps and exhaust openings without forcing the composite.
3. Confirm factory-part removal and transfer requirements. Inspect original mounts and clips for damage and preserve required shields, drainage and service access.
4. Verify approved screw positions and the material behind each fixing point. Avoid wiring, lines, equipment and structural components. No drilling template, pilot-hole specification or torque values are supplied; obtain the correct installation procedure rather than improvising.
5. Check exhaust heat/movement clearance and independent support. Do not rest tips against the diffuser or use its openings to position the exhaust.
6. Complete secure attachment and check relevant rear equipment and tailgate functions before driving. Reinspect periodically and after washing, impact, exhaust work or bumper service.

Professional installation is recommended. The original quick-installation, no-modification and guaranteed-fit claims are not retained. Do not drive with loose trim, exhaust contact, mounting damage or unresolved equipment interference. Never reach near hot or moving components to inspect clearance.

Care

Clean only after the exhaust and adjacent surfaces have cooled. Use a soft cloth and non-abrasive products compatible with the gloss clear coating. Avoid aggressive solvents and close-range high-pressure water at joints or retaining points. Inspect the laminate, coating and attachments for cracks, loosening and heat-related changes.

Frequently Asked Questions

Is this confirmed dry carbon?
No. The original title uses that term, but the detailed specification establishes only 3×3 carbon fiber and the stated coating.

Does it fit Base or X5M bumpers?
No. Base and X5M are explicitly excluded by the source.

Does 2019UP mean later years are confirmed?
No. The detailed list stops at 2022; later applications require separate verification.

Is it an overlay?
The source describes a replacement for the factory plastic diffuser. Confirm the actual removal and transfer procedure.

Are tape or exhaust tips included?
Neither is itemized. Self-tapping screws are the explicitly listed attachment hardware.

Is drilling unnecessary?
That is not established. Self-tapping screws are listed without a detailed drilling or fastening specification.

Will hands-free tailgate operation be retained?
No equipment-specific confirmation is supplied. Verify any fitted sensor arrangement and test its function after installation.

How many physical pieces are included?
An exact piece count is not supplied.
