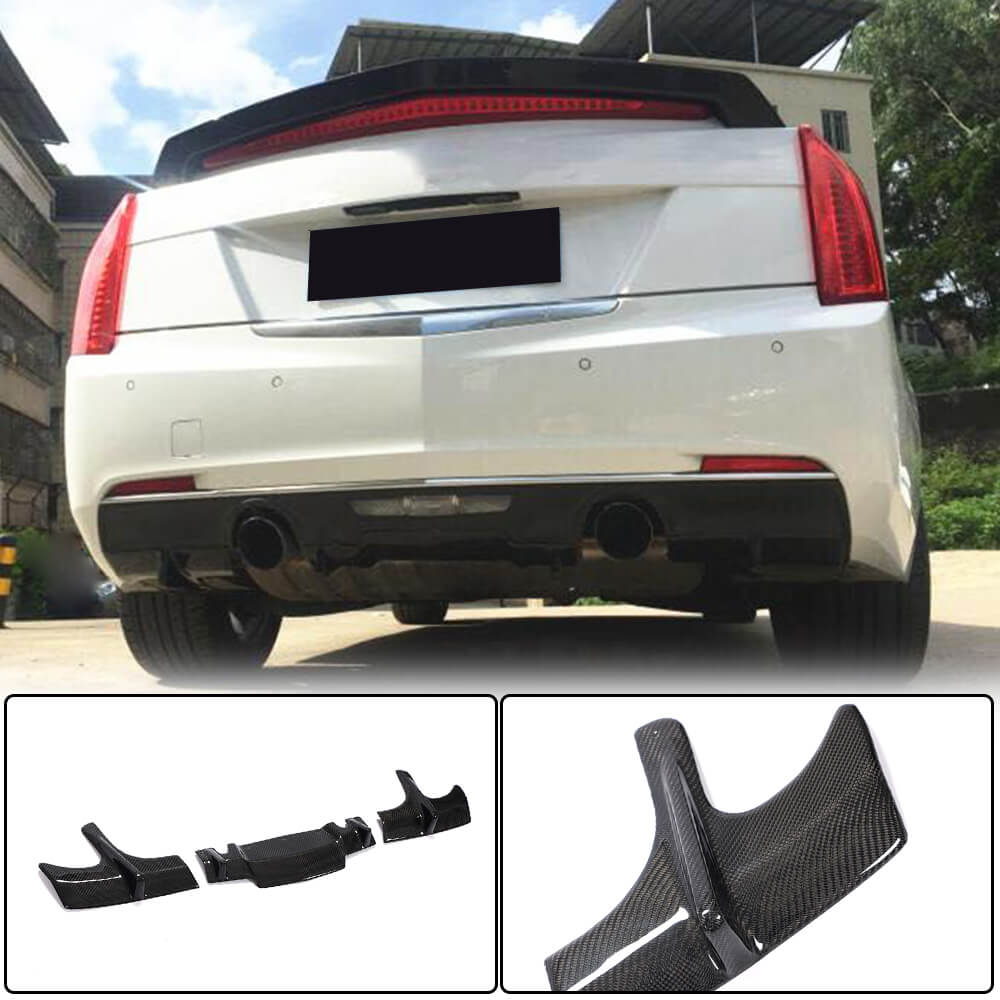

Cadillac ATS Base Sedan Carbon Fiber Replacement Rear Bumper Diffuser

Carbon Fiber Replacement Rear Diffuser for Cadillac ATS Base Sedan

Add a gloss carbon-fiber finish to the lower rear bumper of your listed ATS Base sedan. The source describes this diffuser as a replacement for the factory plastic diffuser, not a tape-on overlay, complete rear bumper or full body kit.

Listed Application and Fitment Conflicts

• Primary application in the original title and introductory description: Cadillac ATS Base Sedan, four-door.
• Source-listed combined year range: 2013–2019.
• Not for Cadillac ATS-V models.

The detailed fitment line also names Coupe/two-door applications, and the hidden filters list coupe configurations, while the title and introduction specify Sedan. This body-style conflict is unresolved. Coupe compatibility is not confirmed by this listing and must be verified separately; do not assume coupe and sedan rear bumpers or mounting points are interchangeable.

The supplied 2013–2019 range is not a verified body-style-by-year compatibility table. In particular, verify the 2019 endpoint for the actual sedan rather than applying a combined ATS range to every body style. The title and SEO therefore do not present a blanket year range.

Confirm VIN, production date, regional model year, body style, Base rear bumper profile and factory diffuser mounting footprint before ordering. Check facelift and equipment differences individually. Luxury, Performance and Premium variants appearing in filters do not independently expand the detailed Base application. ATS-L, conversion bumpers and aftermarket bumpers are not confirmed applications.

Material and Finish

• Specified material: 3×3 weave carbon fiber.
• Gloss finish with a double-layer UV-protected clear coating.

A dry-carbon process, pre-impregnated cloth, full laminate composition, dimensions, measured component weight and molded piece count are not supplied. Pure-carbon-throughout construction, quantified weight savings and permanent resistance to fading or discoloration are not established.

Replacement Structure and Package Scope

The source specifies replacement-style installation and included self-tapping screws. The original plastic diffuser must be removed as part of the verified installation procedure. Screw quantities, clips, brackets and any additional attachment requirements are not itemized. Tape is not listed as included.

Exhaust tips, exhaust pipes, reflectors, lights, sensors and wiring are not specified as included. Do not assume this diffuser converts the exhaust layout or includes a complete bumper assembly.

Exhaust Compatibility and Heat Clearance

The source does not specify exhaust-opening count, location, shape, dimensions or compatible tip sizes. Match the actual diffuser openings to your vehicle's exhaust arrangement before ordering. Do not assume compatibility with single-, dual- or quad-tip systems based on the vehicle name alone.

Have a qualified installer verify clearance around exhaust tips and hot components, allowing for exhaust movement and heat expansion. Retain appropriate factory heat shielding where required. Exhaust tips must not contact the diffuser or direct hot gases onto the panel. Exhaust modification is not represented as included or automatically required.

Installation Guidance

Professional installation is recommended. Test-fit before drilling, altering original trim or permanently transferring components. Check bumper alignment, the complete mounting footprint and underbody clearance. Do not force a mismatched panel into position.

Self-tapping screws are included, so no-drill or no-modification installation is not promised. Have the installer identify suitable mounting points and inspect behind proposed holes to avoid wiring, sensors and other components. Verify retention of any original clips or hardware required for the specific vehicle.

Preserve lights, reflectors, parking sensors, towing access, drainage and service access where fitted. The original source warns that a rear sensor-operated opening function may be obstructed after installation. If your vehicle has such equipment, verify sensor location, wiring and operation before and after installation; compatibility is not guaranteed. This warning does not establish that every ATS has that feature.

Confirm secure attachment before driving and recheck according to the installer's guidance. Quick installation, a fixed installation time and universal direct fit are not promised. Check ground clearance over ramps, speed bumps and curbs. This diffuser is not a structural guard or recovery point.

Performance Scope

No measured downforce, drag, handling, cooling or fuel-economy results are supplied. This listing describes an exterior styling replacement rather than a verified aerodynamic improvement.

Frequently Asked Questions

Is this a replacement or an overlay?
The source describes a replacement for the factory plastic diffuser.

Does it fit ATS-V?
No. The detailed source explicitly excludes ATS-V.

Is coupe compatibility confirmed?
No. The title and introduction specify Sedan, but another fitment line and filters name Coupe. Verify the body-style conflict before ordering.

Does the 2013–2019 range confirm every sedan year?
No. It is a combined source range, not a verified sedan-by-year table. Check the exact vehicle, especially the endpoint.

Are exhaust tips or installation tape included?
Neither is specified as included. Self-tapping screws are listed.

Will my exhaust tips fit the openings?
Opening dimensions and layout are not supplied. Compare the actual diffuser and exhaust configuration before ordering.
