24-Piece Engine Timing Chain Kit for Source-Listed Chevy Equinox, Buick & GMC 2.2L 2.4L

24-Piece Engine Timing Chain Kit for Source-Listed GM 2.2L / 2.4L Applications

Engine timing-chain service kit described by the source for 2009–2017 Chevrolet Equinox and unspecified Buick and GMC 2.2L / 2.4L applications. The source identifies a 24-piece alloy-steel replacement-style kit.

Critical source-data warning: The supplied fitment sentence names Chevrolet Equinox but identifies Buick and GMC only by brand, without model names. It also gives one combined 2009–2017 range and two engine sizes without mapping years, models, or engine codes. This is not enough to confirm a specific Buick or GMC vehicle, or to establish which Equinox years use the 2.2L or 2.4L application. Do not order from the title, product tags, brand, year range, or displacement alone. Confirm the VIN, exact make, model, model year, 2.2L or 2.4L engine code, production date, original timing layout, chain link counts, guide and tensioner shapes, sprocket and cam-adjuster design, oil passages, and every required component.

Fitment Information Supplied

• Chevrolet Equinox — source-associated with the combined 2009–2017 and 2.2L / 2.4L description; exact year-to-engine mapping is not supplied
• Buick — brand listed by the source, but model, individual years, engine assignment, and configuration are not supplied
• GMC — brand listed by the source, but model, individual years, engine assignment, and configuration are not supplied

Not confirmed: GMC Terrain, Buick Verano, Regal, and LaCrosse appear in product tags but not in the source fitment sentence. Those tag-based applications are not treated as confirmed. Hybrid or eAssist coverage, drivetrain, transmission, emissions specification, production-date breaks, and timing-system revisions are also not supplied.

Kit Information

• Kit type: Engine timing-chain service kit
• Source-listed quantity: 24 pieces per set
• Source-listed material: Alloy steel
• Source-associated engine sizes: 2.2L and 2.4L; model- and year-specific assignment not supplied
• Source-associated range: 2009–2017; individual model ranges not supplied

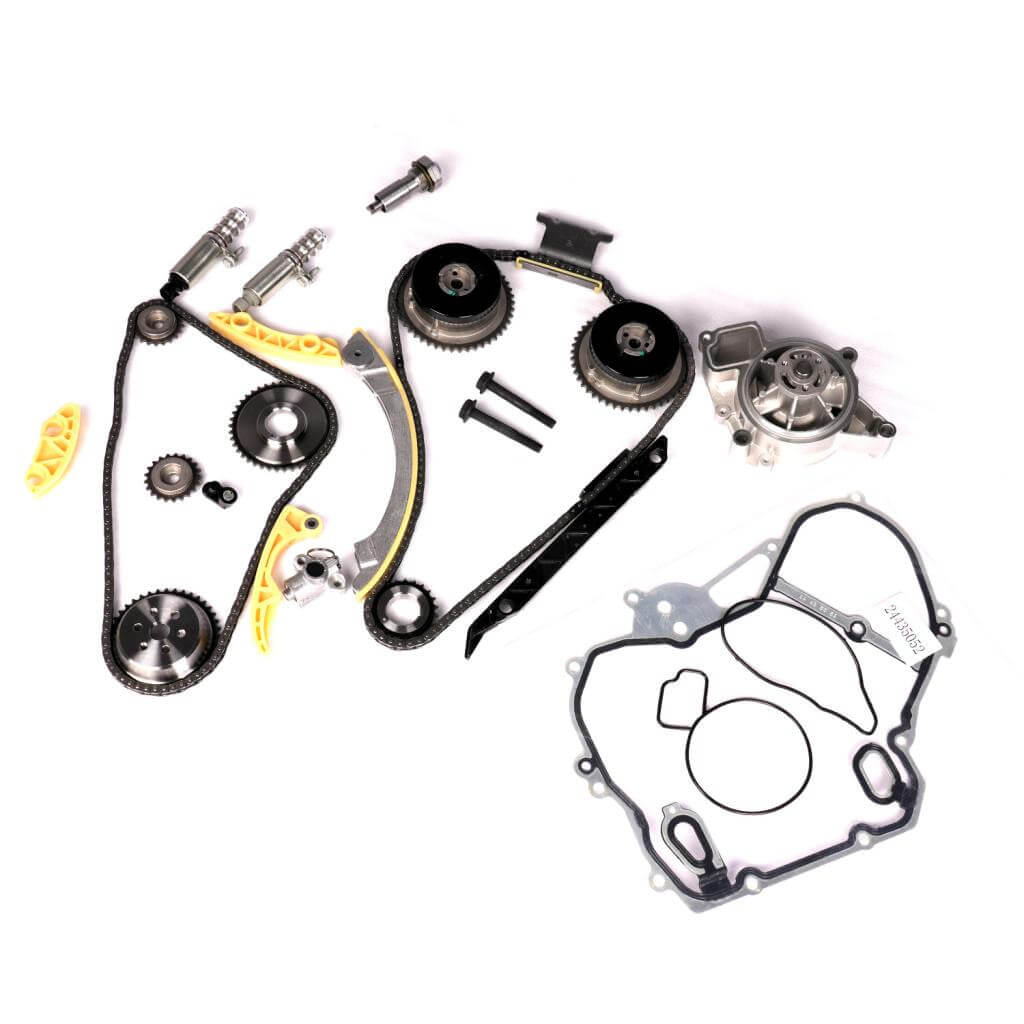

The source does not itemize the 24 pieces. It does not confirm the number of timing chains, balance-shaft or oil-pump chains, guides, tensioners, sprockets, cam adjusters, seals, gaskets, bolts, or other components. Compare the product images and received package with the VIN-specific service requirements before beginning installation.

Water Pump and Component Warning

The source contains the phrase “timing chain kit water pump set,” but it does not clearly identify a water pump in an itemized contents list. Water-pump inclusion is not confirmed. Balance-shaft or oil-pump-chain components and cam adjusters are also not separately identified. Do not assume any of these parts are included unless each required component is shown and verified.

Reference Verification

No formal GM OE or interchange reference numbers are supplied. Do not use the listing SKU or product tags as proof of interchange. A 2.2L or 2.4L displacement alone is not sufficient; match the VIN-specific engine code and complete original timing system.

Installation Notes

Timing-chain replacement is an internal-engine repair requiring GM service information, engine-specific locking and timing tools, and careful component-revision checks. Installation should be performed by a qualified engine technician only after fitment has been independently confirmed.

Before disassembly, diagnose timing noise or cam/crank correlation faults and check oil level, oil condition, oil pressure, variable-cam-timing operation, cam and crank sensors, cam adjusters, guides, and related fault codes. Follow the VIN-specific procedure for engine positioning, timing marks, tensioner activation, sealant placement, torque values, torque-angle fasteners, lubrication, and manual engine rotation. Replace all required one-time-use bolts, seals, gaskets, and fluids even when not included.

After assembly, rotate the engine manually through the required cycles and recheck all timing marks before startup. Prime the lubrication system where required, inspect for leaks, monitor oil pressure and abnormal noise, clear applicable codes, and complete specified adaptation or relearn procedures.

Frequently Asked Questions

Which Buick and GMC models does this fit?
The source does not name them. Terrain, Verano, Regal, and LaCrosse appear only in tags and are not confirmed by the supplied fitment text.

Which Equinox years use the 2.2L or 2.4L kit?
The source does not map either displacement to specific years. Verify the VIN and engine code before ordering.

Are all 24 components listed?
No. The source states 24 pieces but does not provide an itemized contents list.

Is a water pump included?
Water-pump inclusion is not clearly confirmed. Verify the product images and received package.
