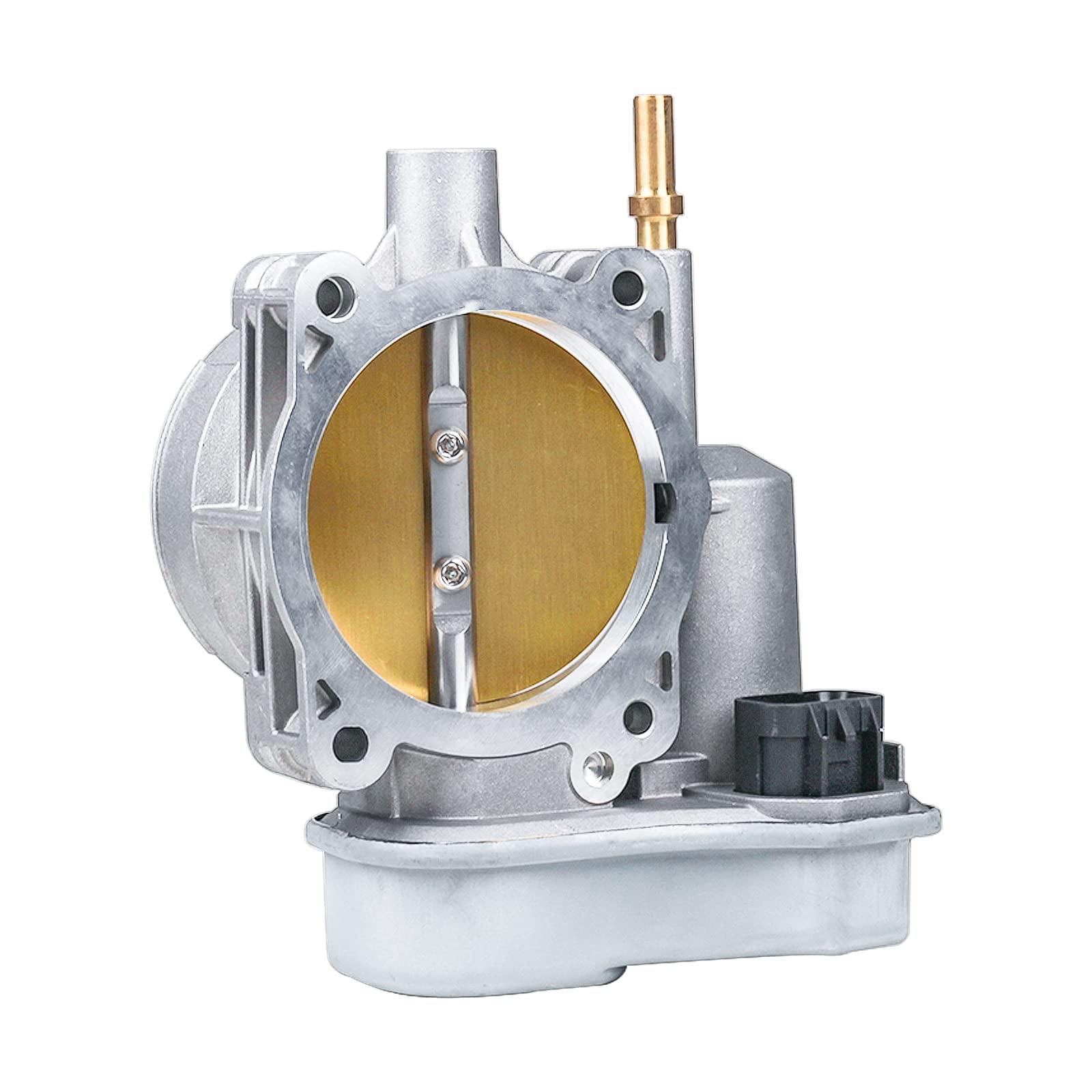

Electronic Throttle Body Assembly for Select 2003-2007 Chevy, GMC, Buick, Hummer, Pontiac, Oldsmobile, Isuzu & Saab

Electronic Throttle Body Assembly for Select 2003–2007 Applications

Electronic throttle body assembly for the exact Chevrolet, GMC, Pontiac, Buick, Hummer, Isuzu, Oldsmobile, and Saab model-year and engine applications listed below.

Critical fitment warning: Engine displacement is provided for most applications, but the source does not specify an engine for the Pontiac Grand Prix or Hummer H3 entries. The source also does not provide throttle-bore diameter, connector pin count, connector keying, throttle-angle calibration, production-date breaks, or relearn procedure. Confirm the VIN, engine displacement/code, original part number, bore, bolt pattern, connector, coolant and vacuum ports, and electronic configuration before ordering.

Chevrolet Compatibility

• 2004–2007 Chevrolet Colorado — 3.5L or 3.7L
• 2006–2007 Chevrolet Impala — 5.3L
• 2006–2007 Chevrolet Monte Carlo — 5.3L
• 2003–2007 Chevrolet TrailBlazer — 4.2L
• 2003–2006 Chevrolet TrailBlazer EXT — 4.2L

GMC Compatibility

• 2004–2007 GMC Canyon — 3.5L or 3.7L
• 2003–2007 GMC Envoy — 4.2L
• 2003–2006 GMC Envoy XL — 4.2L
• 2004–2005 GMC Envoy XUV — 4.2L

Pontiac Compatibility

• 2005–2007 Pontiac Grand Prix — engine restriction not provided; VIN and original-part verification required

Buick Compatibility

• 2004–2007 Buick Rainier — 4.2L

Hummer Compatibility

• 2006–2007 Hummer H3 — engine restriction not provided; VIN and original-part verification required

Isuzu Compatibility

• 2003–2007 Isuzu Ascender — 4.2L
• 2006 Isuzu i-350 — 3.5L
• 2007 Isuzu i-370 — 3.7L

Oldsmobile Compatibility

• 2003–2004 Oldsmobile Bravada — 4.2L

Saab Compatibility

• 2005–2007 Saab 9-7X — 4.2L

Not confirmed: Engines not explicitly listed above, other model years, or any throttle body whose part number, bore, connector, bolt pattern, and port layout do not match the original unit.

Reference Numbers

217-2296, 337-05399, 67-3006, S20064, 12568580A, 12568580, TB1022, 25312095

Reference numbers are provided for comparison. Match the complete number and physical/electrical configuration rather than relying on vehicle name alone.

Package Contents

• 1 electronic throttle body assembly

Throttle-position electronics and actuator integration should be verified from the product images and connector configuration. Gasket, seal, mounting bolts, intake duct, hoses, wiring, and installation tools are not confirmed as included.

Installation Notes

Disconnect the battery only as directed by the vehicle service procedure. Compare the replacement with the original throttle body before installation, including bore, flange, bolt spacing, connector keying and pin count, coolant or vacuum ports, and throttle-plate orientation. Inspect the intake duct, connector, wiring, grounds, vacuum hoses, and sealing surfaces. Do not force or manually move an electronically controlled throttle plate unless the service procedure specifically permits it.

Use a new gasket if required and follow vehicle-specific torque specifications. After installation, check for intake or coolant leaks and perform any required throttle/idle relearn or scan-tool setup according to the exact vehicle procedure. Clear diagnostic faults only after correcting their cause, then verify stable idle and proper throttle response in a safe area before road use.

Frequently Asked Questions

Which engine fits the Pontiac Grand Prix or Hummer H3?
The source does not specify an engine for those entries. Verify the VIN, engine code, original reference number, connector, and bore before ordering.

Is a gasket included?
Gasket inclusion is not confirmed.

Will the throttle body require relearning?
The source does not specify this. Follow the vehicle-specific service procedure; some applications may require an idle/throttle relearn or scan-tool setup.

Is this compatible with any vehicle sharing one reference number?
Not necessarily. Match the VIN, engine, full reference number, bore, bolt pattern, ports, and connector configuration.
