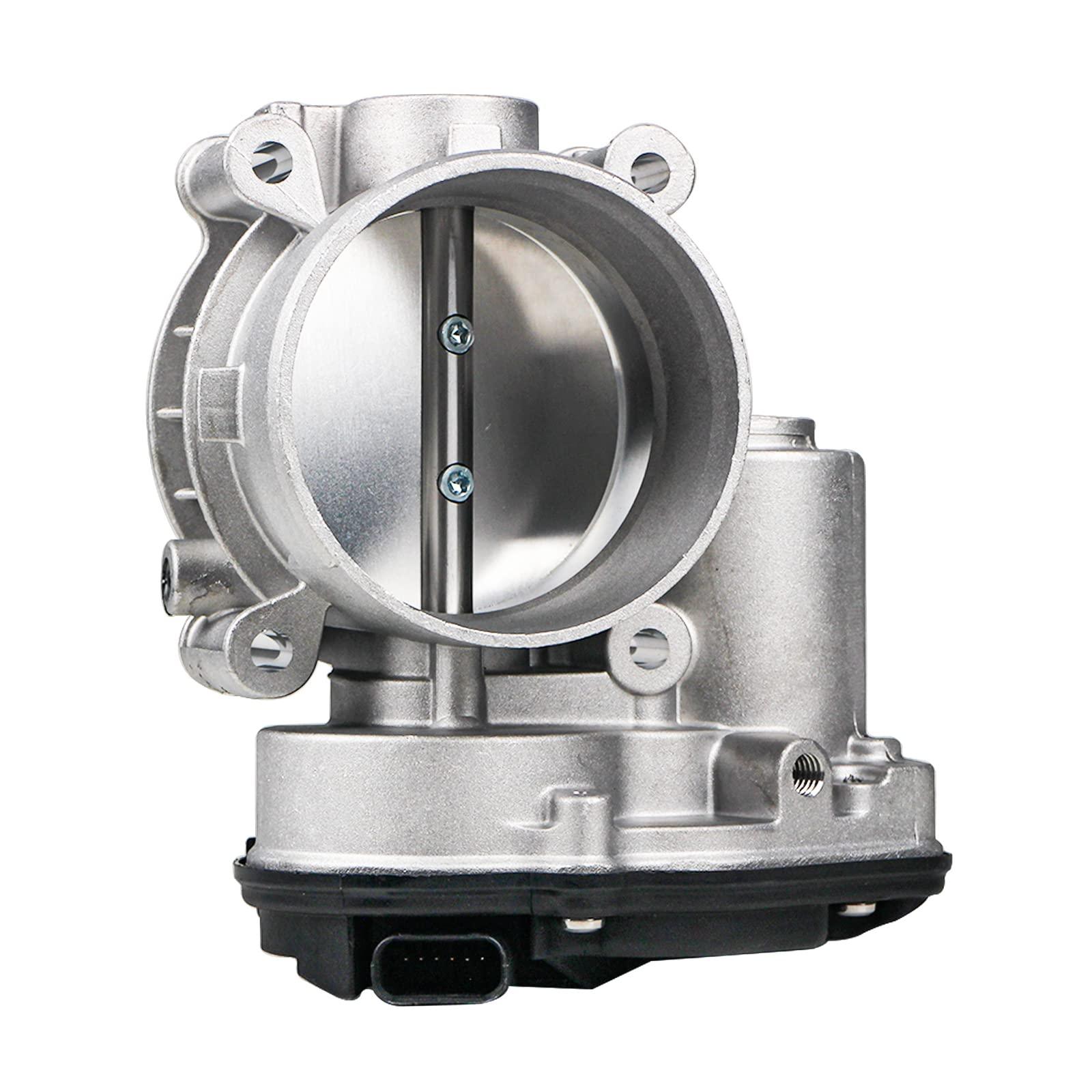

Electronic Throttle Body for Select 2011-2019 Ford & Lincoln 3.5L/3.7L Models

Electronic Throttle Body for Select Ford and Lincoln Vehicles

Electronic throttle body assembly for the specific Ford and Lincoln 3.5L and 3.7L applications listed below. Fitment varies by model, year, and engine.

Critical fitment warning: Do not order by brand or year alone. Match the exact model, model year, and engine entry below. The source does not specify turbocharged versus naturally aspirated configuration, VIN code, emissions package, production date, throttle-bore diameter, connector pin count, connector keying, mounting dimensions, or calibration requirements. Confirm the VIN, engine, original reference number, connector, bore, mounting pattern, coolant or vacuum ports, and linkage configuration before ordering.

Ford Vehicle Compatibility

• 2011–2018 Ford Edge — 3.5L
• 2011–2014 Ford Edge — 3.7L
• 2011–2018 Ford Explorer — 3.5L
• 2011–2014 Ford F-150 — 3.7L
• 2015–2017 Ford F-150 — 3.5L
• 2013–2019 Ford Flex — 3.5L
• 2011–2017 Ford Mustang — 3.7L
• 2013–2017 Ford Police Interceptor Sedan — 3.5L or 3.7L
• 2013–2018 Ford Police Interceptor Utility — 3.7L
• 2013–2019 Ford Taurus — 3.5L
• 2015–2018 Ford Transit-150 — 3.7L
• 2015–2018 Ford Transit-250 — 3.7L
• 2015–2018 Ford Transit-350 — 3.7L
• 2015–2018 Ford Transit-350 HD — 3.7L

Lincoln Vehicle Compatibility

• 2013–2016 Lincoln MKS — 3.7L
• 2013–2019 Lincoln MKT — 3.7L
• 2011–2018 Lincoln MKX — 3.7L
• 2013–2016 Lincoln MKZ — 3.7L

Other engines, model years, and vehicle configurations are not confirmed.

Reference Numbers

AT4Z-9E926A, AT4Z-9E926B, S20068, 676018, 977-328, 6472-067, TB1049

Reference numbers are provided for comparison. Match the VIN, engine, original label, electrical connector, throttle bore, mounting pattern, ports, and housing configuration. A matching year range alone does not establish fitment.

Package Contents

One electronic throttle body assembly. The source does not confirm inclusion of a mounting gasket, O-ring, bolts, intake duct seal, wiring connector, or other hardware. Inspect the product images and plan to replace any one-time-use seal required by the vehicle service procedure.

Diagnostic and Installation Notes

Throttle-body faults can overlap with wiring, connector, accelerator-pedal sensor, intake leak, airflow sensor, power supply, ground, or control-module issues. Diagnose stored fault codes and inspect the complete system before replacement. Installation should be completed by a qualified technician. Disconnect the battery only as directed by the vehicle service procedure, keep debris out of the intake, use a suitable new seal where required, and tighten fasteners evenly to specification. Do not force the electronic throttle plate by hand unless the service procedure permits it. After installation, perform any required throttle or idle relearn and clear diagnostic codes using the correct Ford or Lincoln procedure. Confirm stable idle, throttle response, absence of air leaks, and no warning lights before road use.

Frequently Asked Questions

Does this fit every 2011–2019 Ford or Lincoln?
No. It fits only the exact model, year, and engine combinations listed above.

Is a gasket included?
Gasket and hardware inclusion are not confirmed. Check the images and obtain the correct seal if required.

Will it need programming or relearning?
The source does not specify. Some vehicles may require an idle or throttle relearn after installation; follow the vehicle-specific service procedure.

What is the throttle-bore diameter and connector pin count?
Those specifications are not provided. Compare the original unit and connector before ordering.
