Timing Belt Kit with Water Pump for 1994-2003 Lexus & 1994-2004 Toyota

Timing Belt Kit with Water Pump for Select Lexus and Toyota Models

Engine timing-belt service kit with water pump, timing components, and oil seals for the specific Lexus and Toyota applications listed below.

Critical fitment warning: The available source does not specify engine displacement, engine code, transmission, production-date breakpoints, or market-specific engine variations. Do not order by make, model, and year alone. Confirm the VIN, engine label, original 211-tooth belt dimensions and profile, water-pump mounting pattern, tensioner system, seal sizes, and reference number before ordering.

Vehicle Compatibility

• 1994–2001 Lexus ES300
• 1999–2003 Lexus RX300
• 1995–2004 Toyota Avalon
• 1994–2001 Toyota Camry
• 1998–2003 Toyota Sienna
• 1999–2003 Toyota Solara

Fitment varies by model and year. Confirm the exact engine and original timing system before purchase.

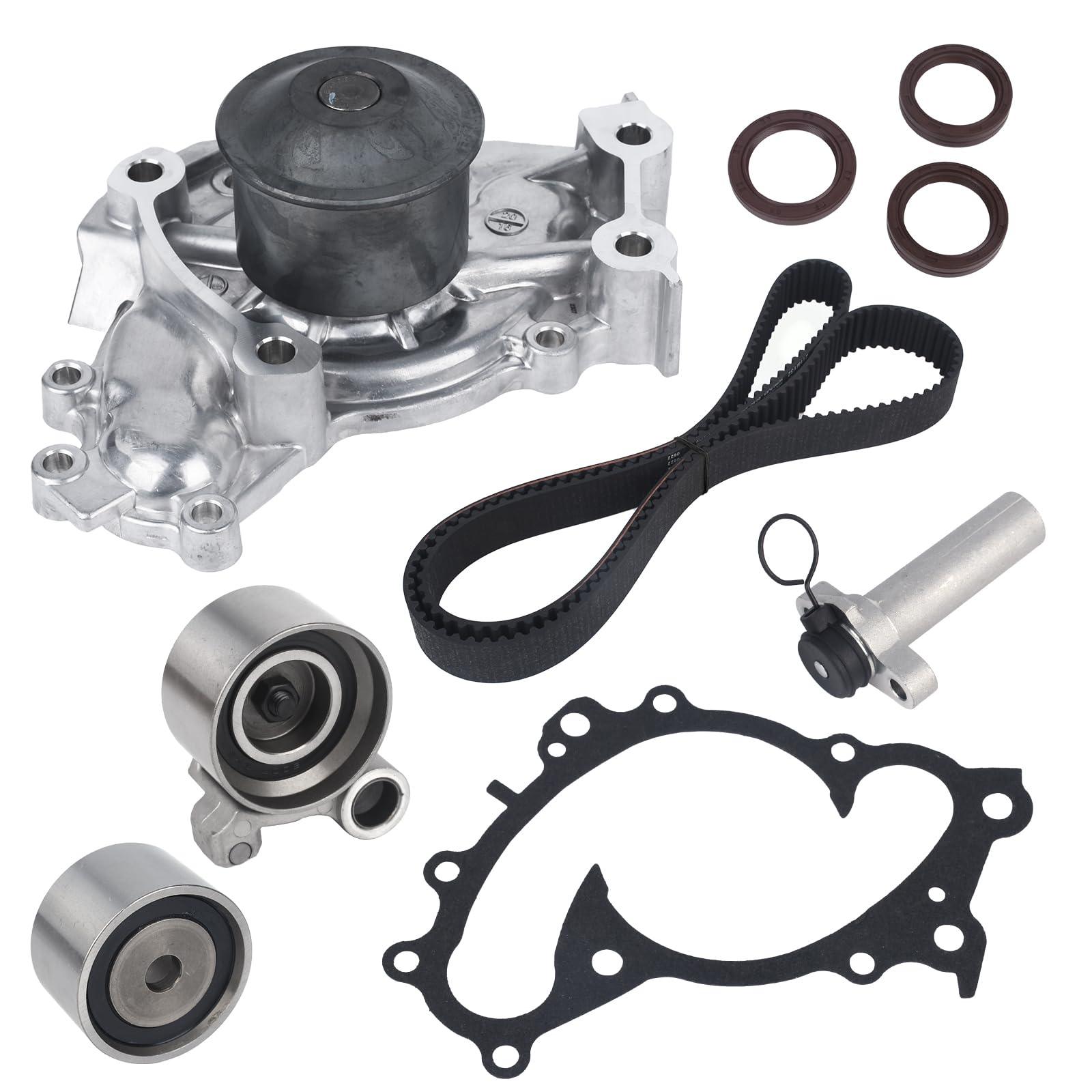

Package Contents

• One water pump with gasket
• One timing belt — 211 teeth
• One tensioner bearing
• One idler bearing
• One hydraulic tensioner
• Two camshaft seals
• One crankshaft seal

Coolant, thermostat, timing-cover gaskets, accessory belts, pulleys, mounting bolts, sealant, and other service items are not confirmed in the available source.

Reference Number

TKT-024.

Use the reference number only as one part of verification. Match the engine code, belt tooth count and dimensions, tensioner and idler design, hydraulic tensioner, pump housing, gasket, and seal sizes to the original components.

Installation Notes

Timing-belt and water-pump replacement is an advanced, safety-critical engine service. Professional installation is strongly recommended. Incorrect camshaft or crankshaft timing can cause severe engine damage. Drain and handle coolant according to local requirements. Clean the water-pump mounting surface without damaging it, and follow the correct Lexus or Toyota service procedure for engine timing, belt routing, tensioner preparation and release, seal installation, water-pump mounting, fastener torque, coolant filling, and air bleeding. Rotate the engine by hand through the specified cycles and recheck all timing marks and belt tension before starting. After start-up, inspect for coolant or oil leaks and verify normal operating temperature.

Frequently Asked Questions

Does this kit fit every engine offered in the listed vehicles?
The source does not identify engine displacement or engine code. Verify the VIN, engine label, and original timing components before ordering.

Is the hydraulic tensioner included?
Yes. The package list specifies one hydraulic tensioner, one tensioner bearing, and one idler bearing.

How many teeth does the belt have?
The included timing belt is specified with 211 teeth.
