Engine Timing Chain Kit for Nissan & Suzuki 4.0L V6, 2005-2019

Engine Timing Chain Kit for Select Nissan and Suzuki 4.0L V6 Models

Multi-chain engine timing service kit for the specific Nissan and Suzuki 4.0L V6 applications listed below.

Critical fitment restriction: This kit is for 4.0L V6 engines only. Do not order by model and year alone. Confirm the engine displacement, engine code, VIN, original chain layout, chain link count, sprocket design, guide shape, tensioner configuration, and reference numbers. The source does not state whether gaskets, seals, timing-cover hardware, camshaft bolts, crankshaft bolts, oil-pump components, or fluids are included.

Vehicle Compatibility

Nissan — 4.0L V6 Only

• 2005–2015 Nissan Frontier
• 2012–2019 Nissan NV1500
• 2012–2017 Nissan NV2500
• 2012–2017 Nissan NV3500
• 2005–2012 Nissan Pathfinder
• 2005–2015 Nissan Xterra

Suzuki — 4.0L V6 Only

• 2009–2012 Suzuki Equator

The original title ended Nissan fitment at 2015, but the available source lists NV1500 through 2019 and NV2500/NV3500 through 2017.

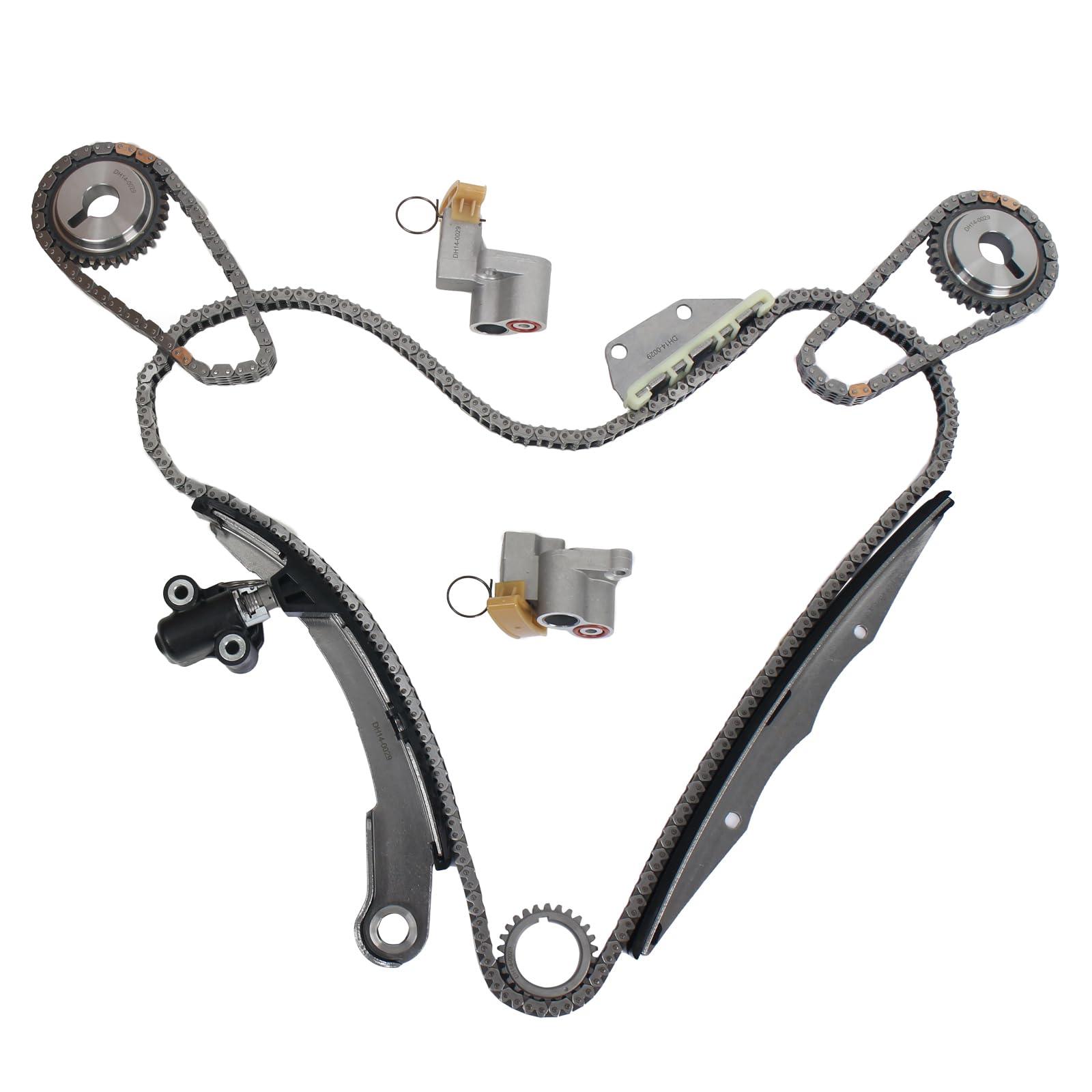

Confirmed Kit Components

• One lower timing chain — 210 links
• Two upper timing chains
• Two crankshaft sprockets
• One additional sprocket — position not identified in the source
• One tensioner-arm guide rail
• One top fixed guide rail
• One left fixed guide rail
• One lower tensioner
• One upper-left tensioner
• One upper-right tensioner

Contents warning: The source identifies one sprocket only as “Sprocket” without its location, tooth count, or bore dimensions. Review the product images and compare every chain, sprocket, guide, and tensioner with the original engine before disassembly.

Reference Numbers

TK3042, 13028-ZK01C, 13028-ZS00A, 13091-ZK00A, 13085-EA200.

Reference numbers are provided for comparison. Confirm them together with the exact 4.0L V6 engine code, chain layout, chain lengths, sprockets, guides, and tensioners.

Installation Notes

Timing-chain service is an advanced engine repair and professional installation is strongly recommended. Incorrect camshaft or crankshaft timing can cause severe engine damage. Follow the vehicle manufacturer’s procedure for locking and timing the engine, torque-to-yield fasteners, chain orientation, tensioner preparation, lubrication, sealant application, and initial start-up. Inspect the timing cover, oil passages, camshaft and crankshaft sprockets, guides, tensioners, fasteners, gaskets, seals, and oil system before assembly. Rotate the engine by hand through the specified cycles and recheck all timing marks before starting.

Frequently Asked Questions

Will this fit engines other than the 4.0L V6?
No other engine is confirmed. The source specifies 4.0L V6 applications only.

Are gaskets and seals included?
The available source does not confirm gaskets, seals, timing-cover hardware, fluids, or other service items.

What is the unidentified sprocket?
The source lists one additional sprocket but does not state its position or dimensions. Compare the product images and original engine components before ordering.
