Engine Timing Chain Kit with Oil Pump Chain for 2008-2016 Audi & Volkswagen 2.0L L4

Engine Timing Chain and Oil Pump Chain Kit for Select Audi and Volkswagen 2.0L L4 Applications

Multi-piece timing-system kit containing upper, lower, and oil-pump chains plus guides, tensioners, and a sprocket for the exact Audi and Volkswagen 2.0L L4 model-year applications listed below.

Critical fitment warning: Every listed application is restricted to the 2.0L L4, but the source does not provide engine codes, VIN digits, production dates, turbo designation, engine generation, or timing-system revision. Audi and Volkswagen 2.0L engines can use different chains, tensioners, guides, and sprockets within the same model year. Confirm the VIN, engine code, production label, original upper and lower chain layouts, oil-pump drive, tensioner design, guide shapes, sprocket profile, and reference numbers before ordering.

Audi Compatibility

• 2008–2012 Audi A3 — 2.0L L4
• 2009–2013 Audi A3 Quattro — 2.0L L4
• 2009–2015 Audi A4 — 2.0L L4
• 2009–2015 Audi A4 Quattro — 2.0L L4
• 2010–2015 Audi A5 — 2.0L L4
• 2010–2015 Audi A5 Quattro — 2.0L L4
• 2012–2015 Audi A6 — 2.0L L4
• 2013–2015 Audi A6 Quattro — 2.0L L4
• 2013–2016 Audi allroad — 2.0L L4
• 2009 Audi TT — 2.0L L4
• 2009–2015 Audi TT Quattro — 2.0L L4

Volkswagen Compatibility

• 2012–2013 Volkswagen Beetle — 2.0L L4
• 2009–2015 Volkswagen CC — 2.0L L4
• 2009–2015 Volkswagen Eos — 2.0L L4
• 2008–2014 Volkswagen GTI — 2.0L L4
• 2008–2013 Volkswagen Jetta — 2.0L L4
• 2008–2010 Volkswagen Passat — 2.0L L4
• 2009–2010 Volkswagen Passat CC — 2.0L L4
• 2009–2015 Volkswagen Tiguan — 2.0L L4

Not confirmed: Other engine sizes, model years outside these ranges, or any 2.0L L4 whose engine code and original timing-system configuration do not match this kit.

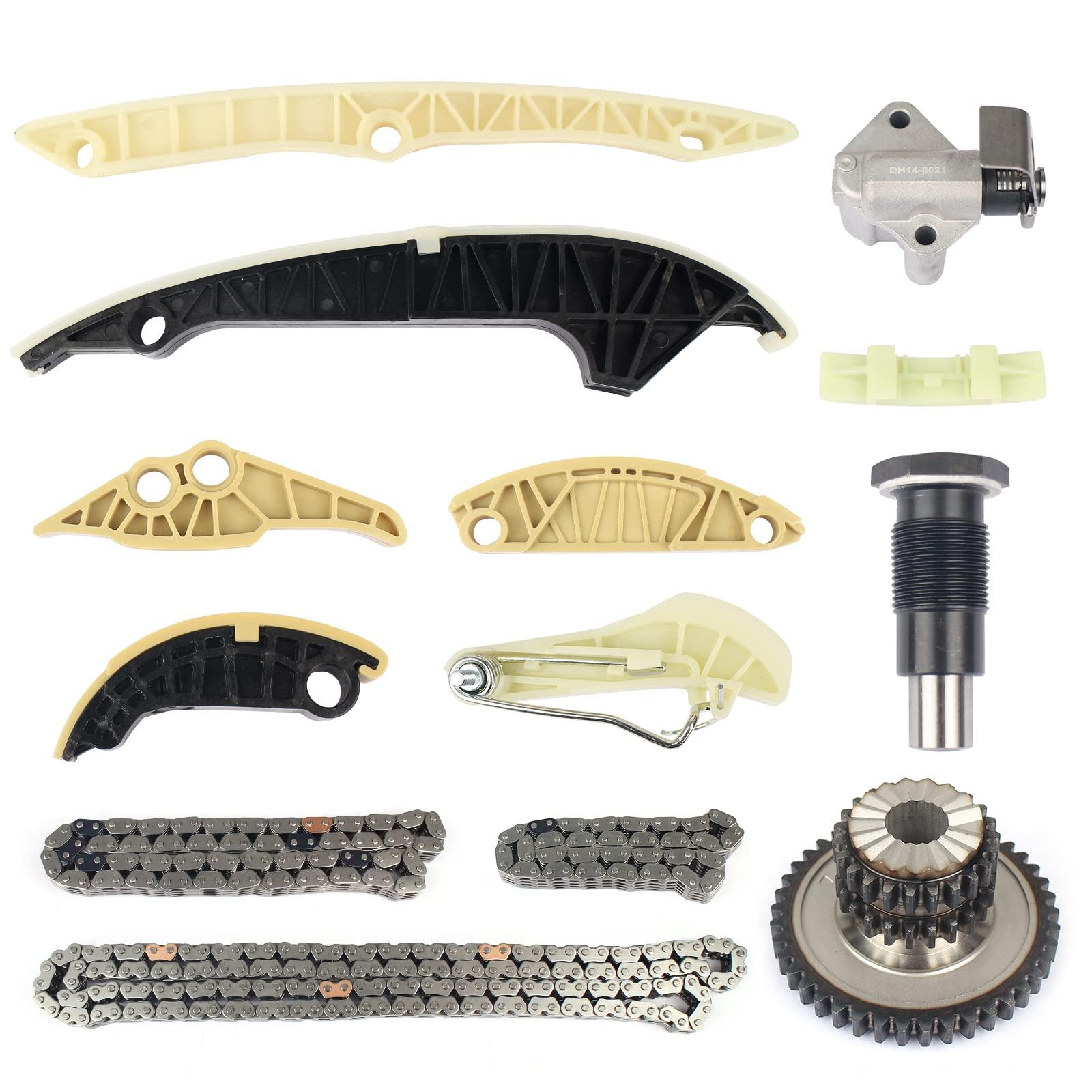

Confirmed Kit Contents

• 1 upper timing chain
• 1 oil-pump chain
• 1 lower timing chain
• 4 upper guide rails
• 3 lower guide rails
• 2 timing-chain tensioners
• 1 sprocket

The source does not identify the exact position of each tensioner or every guide. Camshaft adjusters/phasers, additional sprockets, oil-pump drive components beyond the listed chain, solenoids, seals, timing-cover gasket, valve-cover gasket, crankshaft bolt, fluids, sealant, and installation tools are not confirmed as included.

Reference Numbers

06K109467, 06K109467K, 06H109467N, 06H109467R, 06H109158N, 06H109158J, 06H109509P, 06H109507M, 06H109469AD, 06K109158AD, 06H109467AF, 06H109469AN, 06H109469AP, 06H109469T, 06H109509Q, 06H109507N, 06H105209AT, 06H115225L

Reference numbers are provided for comparison and may identify individual components rather than the complete package. Match the VIN, engine code, production date, original part numbers, chain layout, guides, tensioners, and sprocket before installation.

Installation Notes

Timing-chain service is an advanced engine repair and professional installation is strongly recommended. Obtain the exact factory procedure for the VIN and engine code before disassembly. Confirm crankshaft and camshaft timing positions, locking-tool requirements, balance-shaft and oil-pump timing where applicable, tensioner preparation, torque values, torque-angle specifications, sealant locations, and all one-time-use fasteners.

Inspect the camshaft adjusters, crankshaft and camshaft sprockets, oil-pump drive, guides, tensioners, oil passages, timing covers, and sealing surfaces. After assembly, rotate the engine by hand through the prescribed number of revolutions and recheck every timing mark before starting. Restore fluids correctly, verify oil pressure, scan for timing-related faults, and check for leaks or abnormal noise.

Frequently Asked Questions

Why does the product title extend to 2016?
The source lists 2013–2016 Audi allroad 2.0L L4 fitment. Other listed models end earlier as shown above.

Does this fit every Audi or Volkswagen 2.0L engine?
No. Engine code and timing-system revision are not provided and must be matched to the original components.

Is the oil-pump chain included?
Yes. The confirmed contents include one oil-pump chain.

Are camshaft adjusters and gaskets included?
They are not listed in the confirmed contents. Check the service procedure and obtain all required adjusters, seals, gaskets, fluids, fasteners, and tools separately.
