Engine Timing Chain & Oil Pump Chain Kit for 2008-2015 Honda & 2009-2015 Acura 2.4L L4

Engine Timing Chain and Oil Pump Chain Kit for Select Honda and Acura 2.4L L4 Applications

Multi-piece timing-system kit containing a 176-link timing chain, 62-link oil-pump chain, sprockets, guides, and tensioners for the exact 2.4L four-cylinder applications listed below.

Critical fitment warning: This kit fits 2.4L four-cylinder engines only. It is not a universal fit for every engine offered in these model-year ranges. The source does not provide engine codes, VIN digits, production dates, transmission restrictions, timing-system revisions, or hybrid details. Confirm the VIN, 2.4L engine code, original 176-link main chain, 62-link oil-pump chain, sprocket tooth counts, guide shapes, tensioners, and reference numbers before ordering.

Acura Compatibility

• 2013–2015 Acura ILX — 2.4L L4 only
• 2009–2014 Acura TSX — 2.4L L4 only

Honda Compatibility

• 2008–2012 Honda Accord — 2.4L L4 only
• 2012–2015 Honda Civic — 2.4L L4 only
• 2010–2014 Honda CR-V — 2.4L L4 only
• 2012–2015 Honda Crosstour — 2.4L L4 only

Not confirmed: Hybrid applications, V6 engines, 1.5L, 1.8L, 2.0L, or other engine sizes, model years outside these ranges, or any timing system whose chain lengths, sprockets, guides, and tensioners do not match.

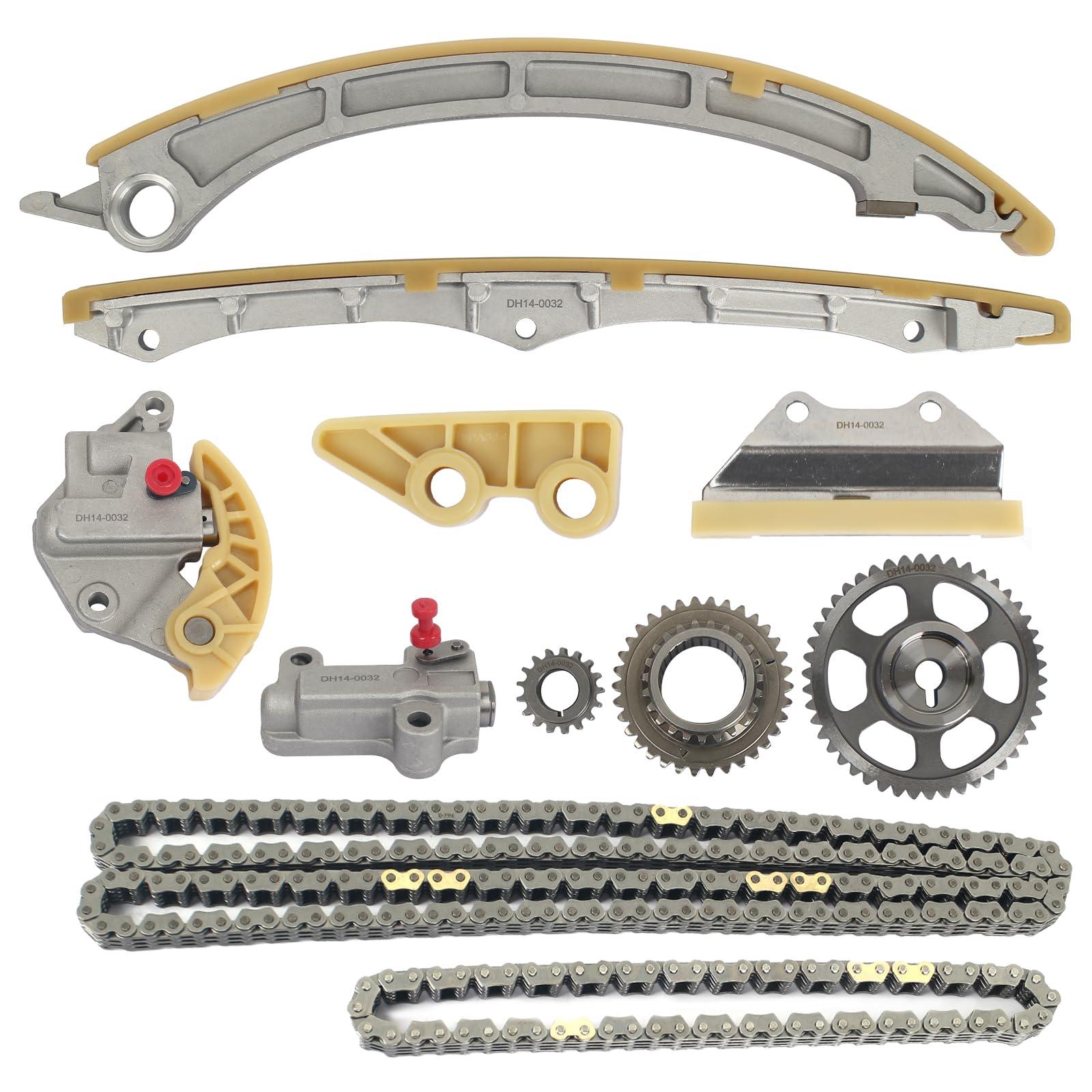

Confirmed Kit Contents

• 1 timing chain — 176 links
• 1 oil-pump chain — 62 links
• 1 camshaft timing sprocket — 46 teeth
• 1 outer crankshaft timing sprocket
• 1 oil-pump drive sprocket — 17 teeth
• 1 left-upper timing-chain guide
• 1 upper timing-chain guide
• 1 right timing-chain tensioner-arm guide
• 1 balance-shaft chain guide
• 1 timing-chain tensioner
• 1 oil-pump-chain tensioner

Camshaft phasers/actuators, additional sprockets, solenoids, seals, timing-cover gasket, valve-cover gasket, crankshaft bolt, fluids, sealant, and installation tools are not confirmed as included.

Reference Numbers

14401PPA004, 14401R40A01, 14210PNA000, 13620RAAA02, 14530RZAA01, 14540PRBA01, 14540RAAA02, 14520RAHH01, 31170RAAA02, 13441R40A01, 13441PNA004, 13432PNA000, 13460PNA004, 13460RAAA01, ZT02321, C712F, S937, S940, S939, C711F, 95570, 95790, 95571, 95572, 9-5570, 9-5790, 9-5571, 9-5572

Reference numbers are supplied for comparison and may identify individual components rather than the complete package. Match the VIN, engine code, chain links, tooth counts, guide shapes, tensioners, and original part numbers before installation.

Installation Notes

Timing-chain and oil-pump-chain replacement is an advanced engine repair and should be performed by a qualified technician. Obtain the exact Honda or Acura service procedure for the VIN and engine code before disassembly. Confirm crankshaft, camshaft, balance-shaft, and oil-pump timing positions where applicable, locking-tool requirements, chain orientation and colored-link alignment, tensioner preparation, torque values, torque-angle specifications, sealant locations, and all one-time-use fasteners.

Inspect the camshaft actuator, crankshaft and camshaft sprockets, oil-pump drive, guides, tensioners, oil passages, timing cover, and sealing surfaces. After assembly, rotate the engine by hand through the prescribed number of revolutions and recheck every timing mark before starting. Restore fluids correctly, verify oil pressure, scan for timing-related faults, and check for leaks or abnormal noise.

Frequently Asked Questions

Does this fit every engine in the listed vehicles?
No. Every listed application is restricted to the 2.4L four-cylinder engine.

Does it fit hybrid models?
Hybrid fitment is not supported by the source. Verify the VIN and engine code; do not order for a hybrid unless every original component and reference number matches.

Is the oil-pump chain included?
Yes. The kit includes one 62-link oil-pump chain and one oil-pump-chain tensioner.

Are camshaft phasers and gaskets included?
They are not listed in the confirmed kit contents.
