Engine Valve Cover for 2007-2013 BMW 1, 3, 5 Series, X3, X5 & Z4 Applications

Engine Valve Cover for Selected 2007–2013 BMW Applications

Replacement engine valve cover for the exact BMW model-year applications listed below. The supplied information includes comparison numbers for the valve cover, valve-cover gasket, and oil filler cap.

Critical fitment warning: BMW valve covers can vary by engine family and code, chassis, body style, production date, market, induction system, crankcase-ventilation design, ignition-coil layout, hose and sensor connections, and gasket profile. The source does not provide engine or chassis codes. Confirm the VIN, exact engine code, chassis code, production date, original cover shape, PCV layout, port locations, mounting pattern, gasket channel, oil-cap design, and every reference number before ordering.

Source-Listed Compatibility

• 2008–2013 BMW 128i
• 2008–2010 BMW 130i
• 2007–2011 BMW 323i
• 2007–2013 BMW 328i
• 2009–2013 BMW 328i xDrive
• 2007–2008 BMW 328xi
• 2010 BMW 525i
• 2008–2011 BMW 528i
• 2009–2010 BMW 528i xDrive
• 2008 BMW 528xi
• 2008–2010 BMW 530i
• 2012–2013 BMW 530i — retained exactly from the supplied source; verify VIN, market, chassis, and engine
• 2007–2012 BMW X3
• 2007–2010 BMW X5
• 2007–2011 BMW Z4

Not confirmed: Every engine within these model years, turbocharged applications, diesel applications, hybrid applications, M models, engine- or chassis-code interchange, market-specific variants, unlisted years or models, or any engine whose cover, PCV system, ports, oil cap, gasket channel, coil layout, or mounting pattern differs.

Product Specifications

• Product type: Engine valve cover
• Location: Top of engine / cylinder head
• Source-listed make: BMW

The source does not state the cover material, color, engine displacement, engine code, chassis code, exact PCV construction, sensor provisions, port sizes, cylinder count, bank position, or production-date splits. Do not infer those specifications from the SKU or model names.

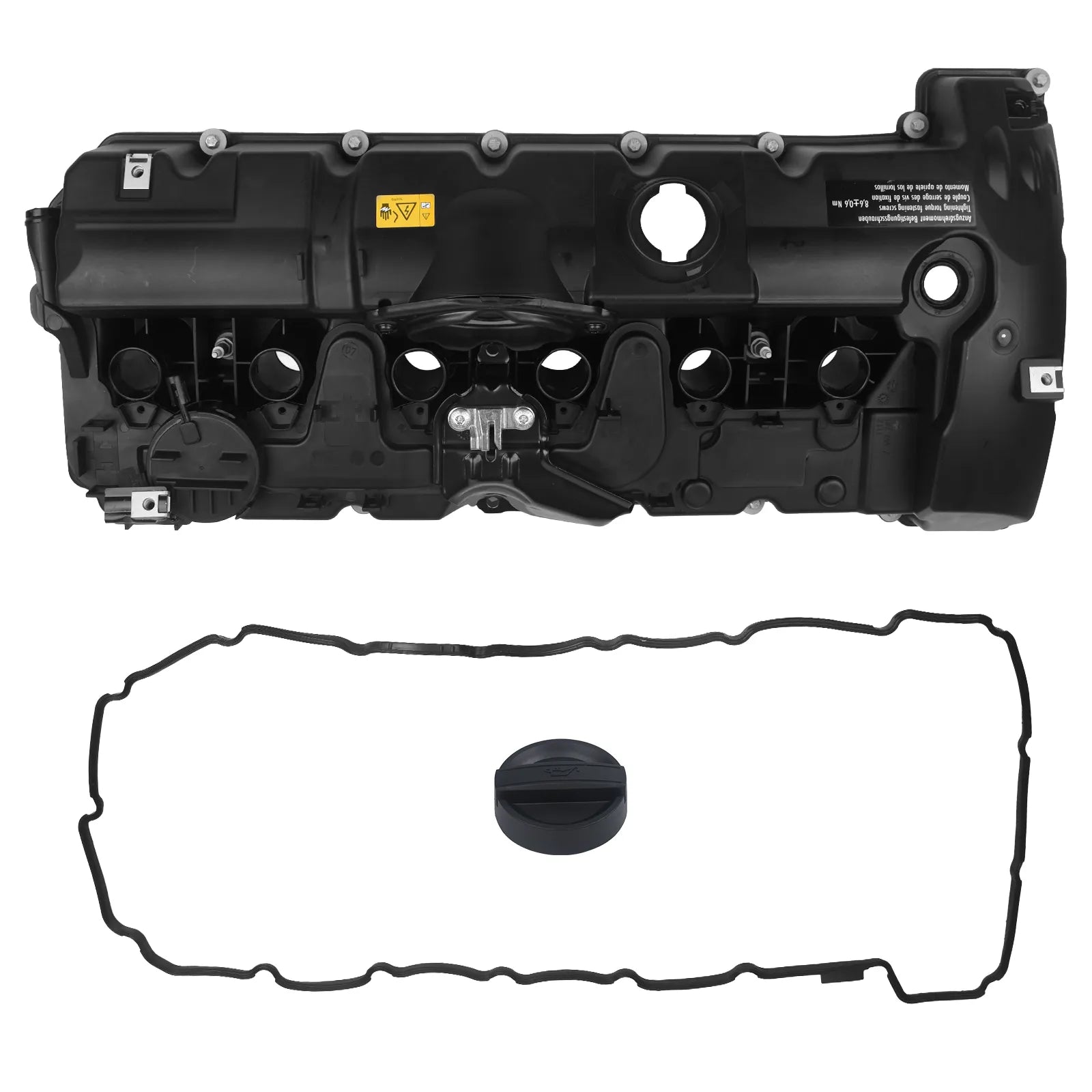

Package Contents

• Engine valve cover component or kit; exact included contents and quantity not specified

The source provides comparison numbers for a valve cover, gaskets, and oil filler caps but does not explicitly itemize the package contents. A valve-cover gasket, spark-plug-tube seals, eccentric-shaft sensor seal, bolt grommets, mounting bolts, oil filler cap, PCV valve or diaphragm, breather fittings, hoses, clamps, sensors, sealant, and installation tools are therefore not confirmed as included. Verify the product images and received package before disassembly.

Reference Numbers

Valve cover: 11127552281, 11-12-7-552-281, 264-935

Valve-cover gasket: 11127559311, 11127582245, 11-12-7-559-311, 11-12-7-582-245

Oil filler cap: 11127560482, 11128655331, 11-12-7-560-482, 11-12-8-655-331

References are retained exactly as supplied for comparison. They do not prove that every referenced gasket or cap is included, and a matching number does not override engine, chassis, production-date, PCV, port-layout, or market differences.

When to Inspect the Original Cover

Possible signs of a valve-cover or sealing-system problem include visible oil leakage around the cover, oil near ignition coils or spark-plug wells, a burning-oil odor, smoke caused by oil contacting hot surfaces, crankcase-ventilation faults, whistling or vacuum noise, or rough operation. These symptoms can have other causes. Diagnose the engine before replacing parts.

Installation Notes

Professional installation is recommended. Work only on a cool engine and follow the VIN-, engine-, chassis-, and body-specific service procedure. Remove or reposition ignition coils, wiring, ventilation hoses, brackets, the cowl, and other components only as required.

Before installation, compare the replacement with the original cover for overall shape, bolt pattern, gasket channel, oil-fill opening, coil openings, PCV and breather ports, hose connections, sensor provisions, and mounting heights. Do not install a cover with different ventilation routing, missing ports, or mismatched sealing surfaces.

Clean the cylinder-head sealing surface without scratching it or allowing debris to enter the engine. Use only the specified gaskets, seal locations, tightening sequence, and torque values for the exact engine. Excess sealant can enter oil passages, while overtightening can crack or distort the cover and cause leaks.

Inspect ignition-coil wells, hoses, fittings, sensors, fasteners, and sealing surfaces during service. After installation, start the engine and inspect for oil or vacuum leaks, warning lights, abnormal noise, and correct crankcase-ventilation operation. Recheck the sealing perimeter after reaching operating temperature and after an initial drive.

Frequently Asked Questions

Which BMW engine does this fit?
The source lists models and years but not engine or chassis codes. Confirm the VIN, engine code, chassis, original cover, PCV layout, and reference numbers.

Is the valve-cover gasket included?
Gasket reference numbers are supplied, but the source does not explicitly list a gasket as packaged. Verify the product images and received contents.

Is the oil filler cap included?
Oil-cap reference numbers are provided, but cap inclusion is not confirmed.

Does it fit turbocharged or diesel BMW engines?
Turbo and diesel compatibility is not confirmed. Match the exact engine code and original cover.

Why are two BMW 530i year ranges listed?
The source separately lists 2008–2010 and 2012–2013. Those ranges are retained as supplied, but VIN, market, chassis, engine, and original-part verification are required.
