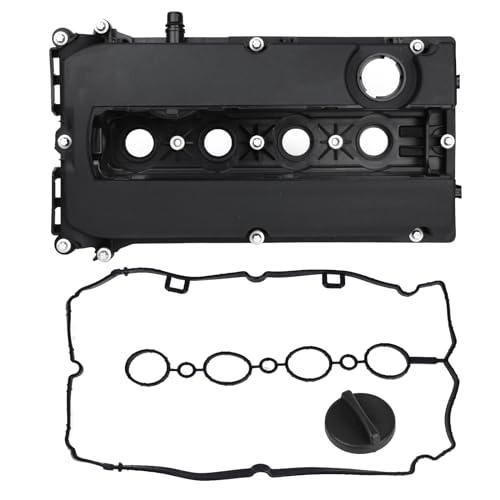

Engine Valve Cover for Chevrolet Aveo, Cruze, Sonic, Trax, Pontiac G3 & Saturn Astra

Engine Valve Cover for Selected Chevrolet, Pontiac, and Saturn Applications

Replacement engine valve cover for the exact model-year applications listed below. It is intended for vehicles whose original cover matches the replacement in shape, mounting points, ventilation connections, ignition-coil openings, sealing surfaces, and related fittings.

Critical fitment warning: Valve covers can vary by engine displacement, engine code, production date, emissions package, turbocharger configuration, crankcase-ventilation design, sensor and hose connections, ignition-coil layout, and gasket profile. The source does not provide engine size or code. Confirm the VIN, engine code, production date, original cover casting and port layout, mounting pattern, PCV configuration, and all physical details before ordering.

Chevrolet Compatibility

• 2009–2011 Chevrolet Aveo
• 2009–2011 Chevrolet Aveo5
• 2011–2016 Chevrolet Cruze
• 2016 Chevrolet Cruze Limited
• 2012–2018 Chevrolet Sonic
• 2013–2020 Chevrolet Trax

Pontiac Compatibility

• 2009–2010 Pontiac G3
• 2009 Pontiac G3 Wave

Saturn Compatibility

• 2008–2009 Saturn Astra

Not confirmed: Every engine offered within these model years, specific turbo or naturally aspirated applications, engine-code interchange, market-specific variants, vehicles outside the listed ranges, or any engine whose cover shape, PCV system, ports, coil layout, gasket channel, or mounting pattern differs.

Product Specifications

• Product type: Engine valve cover
• Location: Top of engine / cylinder head
• Source-listed makes: Chevrolet, Pontiac, Saturn

The source does not state the cover material, color, engine displacement, engine code, reference numbers, PCV design, oil-fill-cap inclusion, sensor provisions, or port sizes. Do not infer those specifications from the SKU or broad vehicle range.

Package Contents

• Engine valve cover component or kit; exact included contents and quantity not specified

The source does not confirm a valve-cover gasket, spark-plug-tube seals, bolt grommets, mounting bolts, oil filler cap, PCV valve or diaphragm, breather fittings, hose, clamps, sensors, ignition components, sealant, or installation tools. The original wording mentions replacing a cover and gasket as a repair scenario, but it does not itemize a gasket as included. Verify the product images and received package before disassembly.

When to Inspect the Original Cover

Possible signs of a valve-cover or sealing-system problem can include visible oil leakage around the cover, oil collecting near ignition components, a burning-oil odor, smoke caused by oil contacting hot surfaces, crankcase-ventilation faults, or rough operation. These symptoms can also have other causes. Diagnose the engine before replacing parts rather than assuming the cover alone is responsible.

Installation Notes

Professional installation is recommended. Work only on a cool engine. Follow the VIN- and engine-specific service procedure, and disconnect or move ignition coils, wiring, ventilation hoses, brackets, and other components only as required.

Before installation, compare the replacement with the original cover for overall shape, bolt pattern, gasket channel, oil-fill opening, coil openings, PCV and breather ports, hose connections, sensor provisions, and mounting heights. Do not install a cover with a different ventilation layout or blocked, missing, or mismatched ports.

Clean the cylinder-head sealing surface without scratching it or allowing debris to enter the engine. Remove old gasket material and oil from the sealing area. Use only the gasket, sealant locations, tightening sequence, and torque values specified for the exact engine. Excess sealant can enter oil passages, while overtightening can crack or distort the cover and cause leaks.

Inspect hoses, fittings, ignition components, fasteners, and sealing surfaces during service. After installation, start the engine and inspect for oil or vacuum leaks, abnormal noise, warning lights, and correct crankcase-ventilation operation. Recheck the sealing perimeter after the engine reaches operating temperature and again after an initial drive.

Frequently Asked Questions

Is the valve-cover gasket included?
The source does not itemize a gasket or any other accessory as included. Verify the product images and package contents before installation.

Which engine does this fit?
The source lists models and years but does not provide engine displacement or code. Confirm the VIN, engine code, original cover, PCV layout, and mounting pattern.

Does it include the PCV valve or diaphragm?
PCV components are not confirmed as included. Compare all ventilation ports and components with the original cover.

Will replacing the cover fix a rough-running engine?
Not necessarily. Rough operation can have many causes. Diagnose oil leaks, vacuum leaks, ignition faults, and crankcase-ventilation problems before replacing parts.
