23-Piece Engine Timing Chain Kit for 2011-2017 Ford F-150 & Lincoln MKX 3.5L

23-Piece Engine Timing Chain Kit for 3.5L Applications

Engine timing-chain service kit identified for 2011–2017 Ford F-150 and Lincoln MKX vehicles equipped with a 3.5L engine. The source describes a 23-piece alloy-steel kit intended as a replacement-style assembly.

Critical fitment warning: The source provides one combined 2011–2017 range but does not state separate model-year coverage for the F-150 and MKX. It also does not provide an engine code, VIN designation, EcoBoost versus naturally aspirated compatibility, turbocharger configuration, production date, drivetrain, timing-system revision, or OE reference numbers. A 3.5L displacement match alone does not confirm fitment. Verify the VIN, exact engine code and aspiration, production date, original timing layout, sprocket and phaser design, chain link counts, guide and tensioner shapes, oil passages, and every included component before ordering.

Source-Listed Vehicle Applications

• 2011–2017 Ford F-150 — 3.5L; exact engine variant and individual year coverage require verification
• 2011–2017 Lincoln MKX — 3.5L; exact engine variant and individual year coverage require verification

Not confirmed: Ford Mustang, Explorer, Expedition, Edge, other Ford or Lincoln models, other engine sizes, or any 3.5L engine whose original timing components do not match. Product tags or a shared displacement are not sufficient proof of fitment.

Kit Information

• Kit type: Engine timing-chain service kit
• Source-listed quantity: 23 pieces per set
• Source-listed material: Alloy steel

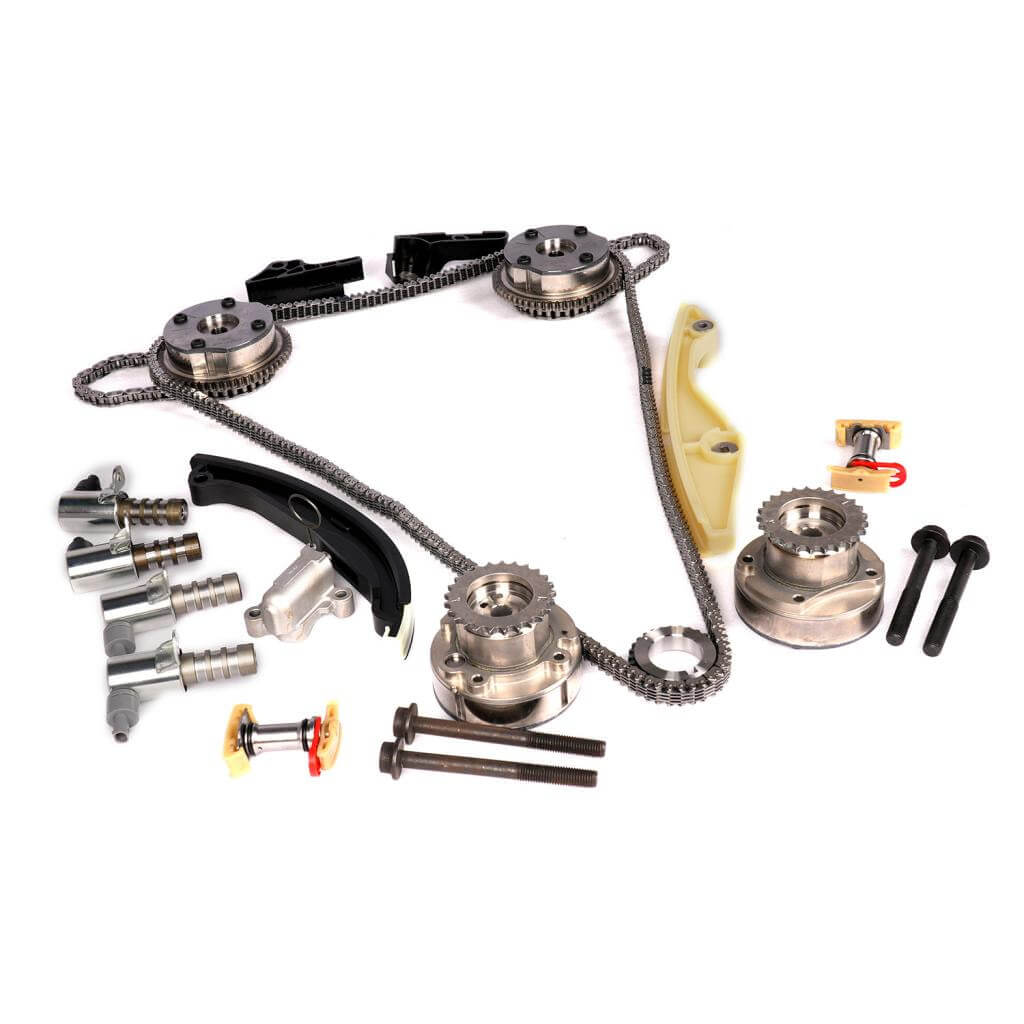

The source does not itemize the 23 pieces. It does not confirm the number of chains, guides, tensioners, sprockets, cam phasers, seals, gaskets, bolts, or other components. Compare the product images and received package with the vehicle’s required service parts before beginning installation.

Water Pump and Component Warning

The source contains the phrase “timing chain kit water pump set,” but it does not clearly list a water pump as an included component. Water-pump inclusion is therefore not confirmed. Do not assume a pump, gasket, seal, thermostat, or other cooling-system part is included unless it is shown and verified in the package contents.

Reference Verification

No formal OE or interchange reference numbers are supplied. Do not use the listing SKU, product tags, model name, or 3.5L displacement alone as proof of interchange. Match the VIN-specific engine and the complete original timing system.

Installation Notes

Timing-chain replacement is an internal-engine repair that requires model-specific service information, precision timing tools, and careful verification of timing marks and component revisions. Installation should be performed by a qualified engine technician.

Before disassembly, diagnose the cause of timing noise or correlation faults and check oil level, oil condition, oil pressure, variable-cam-timing operation, cam and crank sensors, phasers, and related fault codes. During installation, follow the service procedure for engine positioning, chain timing, tensioner activation, sealant placement, torque values, torque-to-yield fasteners, lubrication, and manual engine rotation. Replace any one-time-use bolts, seals, gaskets, or fluids required by the applicable procedure even when they are not included in this kit.

After assembly, rotate the engine manually through the required cycles and recheck all timing marks before startup. Prime the lubrication system where required, inspect for leaks, monitor oil pressure and abnormal noise, clear applicable codes, and complete the specified relearn procedures.

Frequently Asked Questions

Does this fit every 2011–2017 F-150 and MKX with a 3.5L engine?
That cannot be confirmed from the source. Verify the VIN, engine code, EcoBoost or naturally aspirated configuration, production date, and original timing components.

Are all 23 components listed?
No. The source states 23 pieces but does not provide an itemized contents list. Verify the product images and received package.

Is a water pump included?
Water-pump inclusion is not clearly confirmed. Do not assume it is included without package verification.

Does this fit Explorer, Mustang, Expedition, or Edge?
No such fitment is supported by the source description. Product tags alone do not confirm compatibility.
