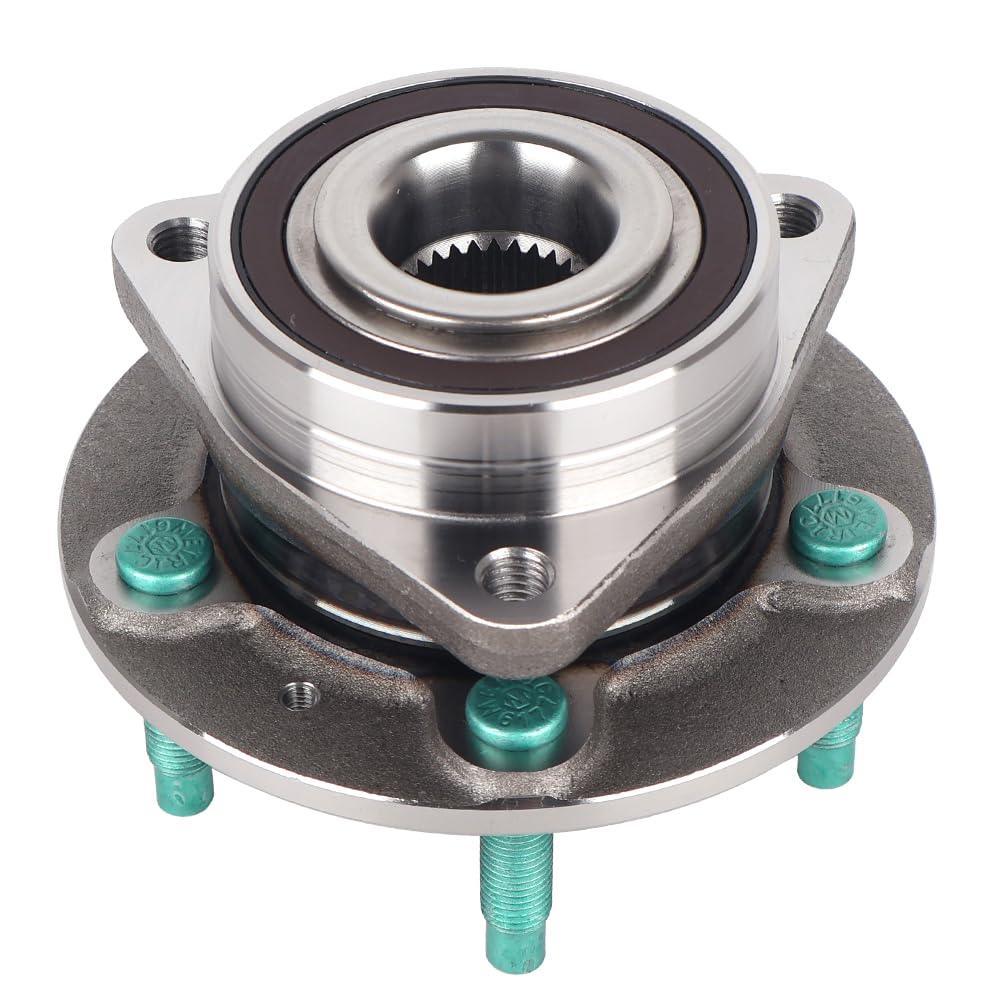

Wheel Hub & Bearing Assembly for Chevy Cruze, Volt, Cadillac ATS, Buick Verano & Cascada 2011-2017 (5-Lug with ABS)
Available in stock (20)
Wheel Hub & Bearing Assembly for Chevrolet, Cadillac & Buick
A complete hub and bearing unit shared across GM's Delta II and Alpha platform cars. A failing bearing gives itself away as a hum or growl that rises with road speed and changes when you sway the car left and right, and on ABS-equipped vehicles it can also set wheel speed sensor faults. The bearing is pressed into the hub as one sealed assembly, so replacement is a bolt-off, bolt-on job with no press work, and each unit is quality tested to meet or exceed OEM performance standards.
Fitment
Front wheel:
- Chevrolet Cruze 2014-2015
- Chevrolet Volt 2011-2015
- Chevrolet Orlando 2012-2014
- Cadillac ATS 2013-2017
- Cadillac ELR 2014-2016
- Buick Verano 2012-2017
- Buick Cascada 2016-2017
Rear wheel:
- Cadillac ATS 2013-2017
- Quantity: 1 piece
- Not for: rear applications on any model other than the Cadillac ATS, non-ABS vehicles, or model years outside those listed above
Only the Cadillac ATS is covered at the rear. On every other model listed this is a front hub. Confirm your model, year and axle by VIN, or match the dimensions and part numbers below, before ordering.
Replaces part numbers
- 328001, 0328001, 328021
- 13502829, 13583479
- 513316, HA590404
Specifications
- Flange diameter: 5.75 in
- Flange offset: 1.66 in
- Bolt circle diameter: 4.53 in
- Studs: 5 lug
- ABS: Yes, for ABS-equipped vehicles
- Quality: Tested to meet or exceed OEM performance standards
Installation notes
- Installation should be carried out by a qualified technician.
- No press work is needed, as the bearing is already assembled into the hub.
- Torque the hub and axle fasteners to the vehicle's factory specifications.
- Check that the ABS warning light clears, then test the vehicle in a safe area.
FAQ
Can I use it at the rear of a Cruze or Verano? No. The rear application covers the Cadillac ATS only.
Is the bearing included? Yes. The bearing is pressed into the hub as a single sealed assembly.
Does it suit a non-ABS car? No. This hub is for ABS-equipped vehicles.
How do I confirm fitment? Cross-reference 513316 or 13502829, and check the 4.53 in bolt circle and 5-lug pattern against your existing hub.
