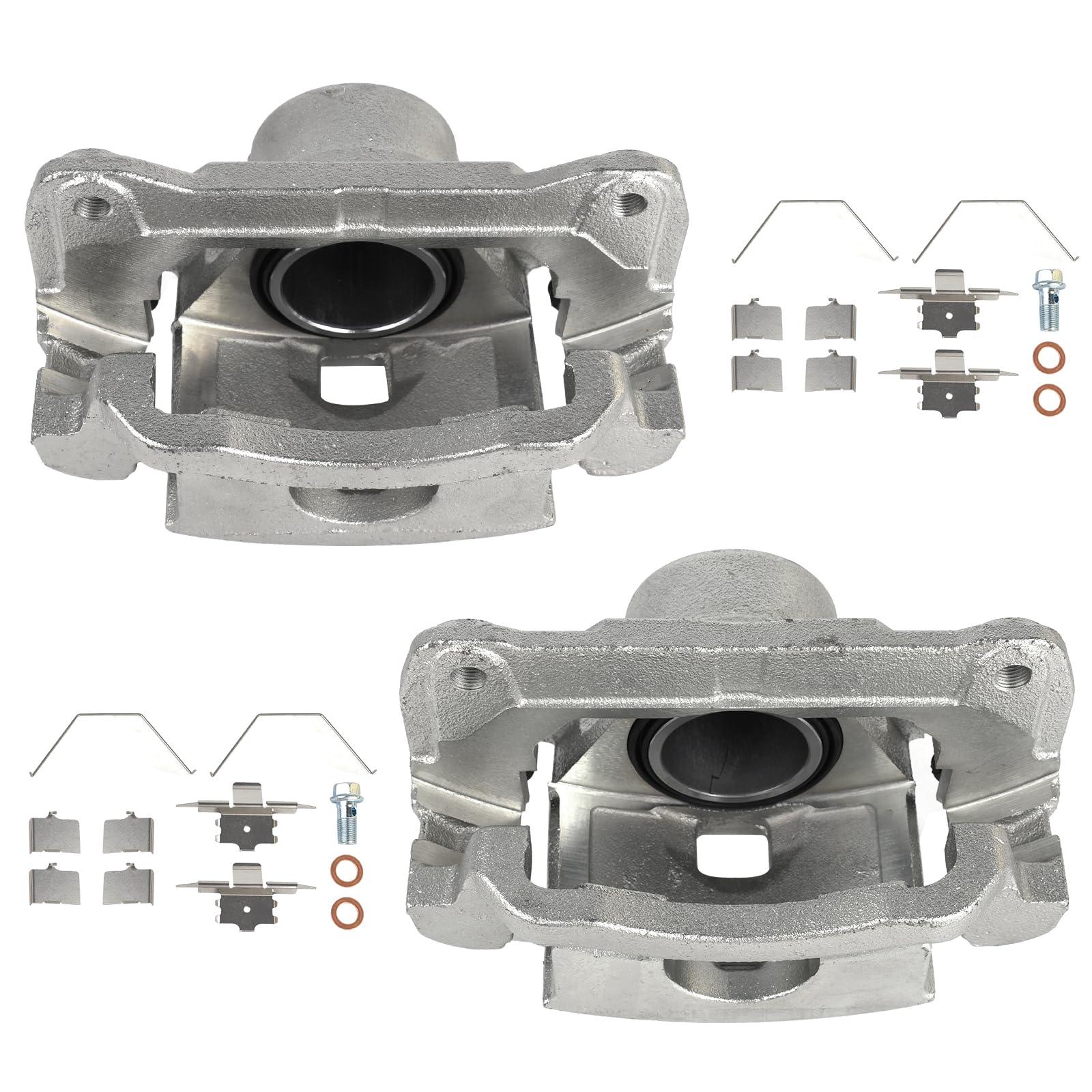

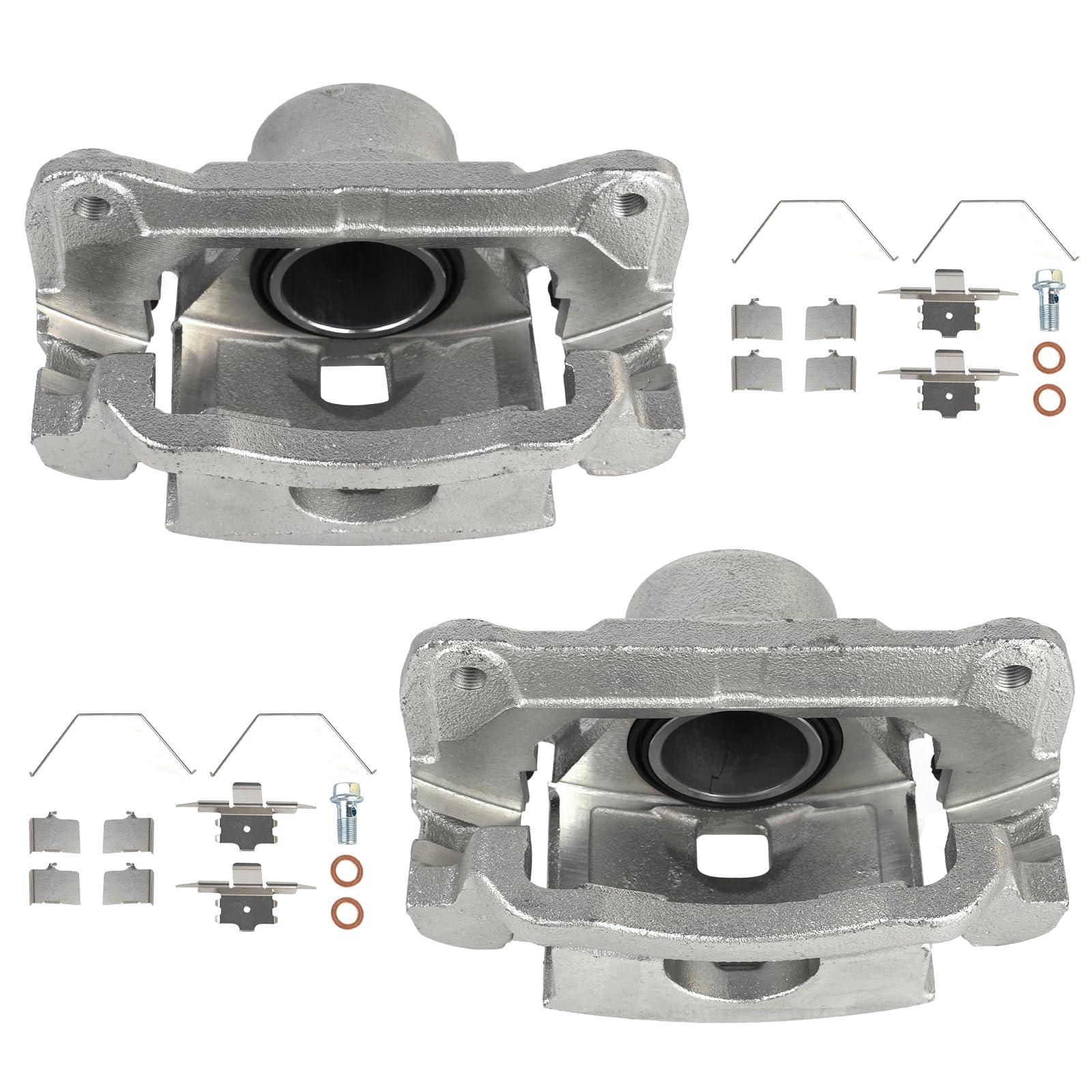

Front Brake Caliper for Ford Fusion, Lincoln MKZ / Zephyr, Mazda 6 & Mercury Milan

Front Brake Caliper Application for Ford, Lincoln, Mazda and Mercury

Front brake caliper replacement application for the source-listed Ford Fusion, Lincoln MKZ and Zephyr, Mazda 6, and Mercury Milan model years below. Reference numbers 18B5000 and 18B5001 are provided for comparison.

Critical fitment warning: Brake calipers can vary by front-left or front-right position, engine, trim, wheel and brake package, rotor diameter and thickness, piston configuration, hose connection, bracket design, and production date. Confirm the VIN, exact vehicle configuration, original caliper casting and reference numbers, mounting points, hose-port location, bleeder position, piston count, bracket spacing, and rotor specifications before ordering.

Source-Listed Compatibility

• 2006–2012 Ford Fusion
• 2007–2012 Lincoln MKZ
• 2006 Lincoln Zephyr
• 2006–2013 Mazda 6
• 2006–2011 Mercury Milan

The source does not distinguish engines, FWD or AWD drivetrains, Hybrid or non-Hybrid models, performance packages, wheel sizes, rotor sizes, production dates, or other brake-system options within these ranges. The Mazda 6 range must also be checked carefully for generation, body style, and production differences.

Reference Numbers

• 18B5000
• 18B5001

Reference numbers are supplied only for cross-checking. The source does not map either number to front-left or front-right, and the two references do not by themselves confirm that two calipers are included. Match the original part number, casting, dimensions, hose connection, bleeder location, and mounting geometry.

Position and Package Verification

• Axle position: Front
• Exact side: Not specified
• Package quantity: Not specified
• Caliper bracket: Not separately confirmed
• Brake pads: Not confirmed
• Mounting hardware: Not confirmed

The source does not specify caliper material, finish, piston count or diameter, inlet thread, bleeder thread, mounting-bolt spacing, bracket inclusion, pad hardware, banjo bolt, crush washers, lubricant, fluid, or installation hardware. Confirm the product images and received components before disassembly.

Installation Notes

Professional brake-system installation is strongly recommended. Safely support the vehicle and follow the exact model-, drivetrain-, and brake-package-specific service procedure. Brake fluid can damage painted surfaces; use appropriate protection and dispose of fluid according to local requirements.

Before installation, compare the replacement component with the original caliper for side orientation, casting, piston and bore arrangement, bracket and slide-pin design, mounting-hole spacing, rotor clearance, brake-hose port, banjo-bolt or threaded fitting, bleeder-screw location, pad shape, wear-sensor provisions, and wheel clearance. The bleeder must be positioned so trapped air can be removed correctly.

Inspect the brake hose, rotor, pads, wheel bearing, dust shield, mounting bolts, slide pins, seals, and mating surfaces. Replace damaged or manufacturer-designated single-use parts as required. Never allow the caliper to hang from the brake hose. Use new sealing washers where required and do not contaminate friction surfaces.

Install and torque all fasteners and hose fittings to the vehicle manufacturer's specifications. Bleed the brake system using the specified fluid and sequence, restore the reservoir level, and check thoroughly for leaks. Pump the brake pedal until normal firmness is restored before moving the vehicle.

Test braking at low speed in a controlled area before road use. Confirm a firm pedal, even braking, correct wheel rotation, no leaks, no warning lights, and no contact between the caliper, rotor, hose, wheel, or suspension. Follow the brake-pad and rotor manufacturer's bedding procedure when applicable.

Frequently Asked Questions

Is this for the front axle?
Yes. The source identifies a front brake caliper application.

Is it front-left or front-right?
The source does not provide a verified side assignment. Do not determine the side from the SKU or reference-number order alone.

Are two calipers included?
Package quantity is not stated. Two reference numbers do not independently prove that the package contains a pair.

Is the mounting bracket included?
The source does not separately confirm the bracket, pads, banjo bolt, washers, slide hardware, or mounting bolts. Confirm from the product images and received package.

Does it fit every vehicle in the listed year ranges?
Not automatically. Verify the VIN, engine, drivetrain, trim, brake package, rotor dimensions, original caliper, and production date.

Must the brake system be bled after installation?
Yes. Any time the hydraulic circuit is opened, bleed it using the vehicle manufacturer's procedure and specified brake fluid.
