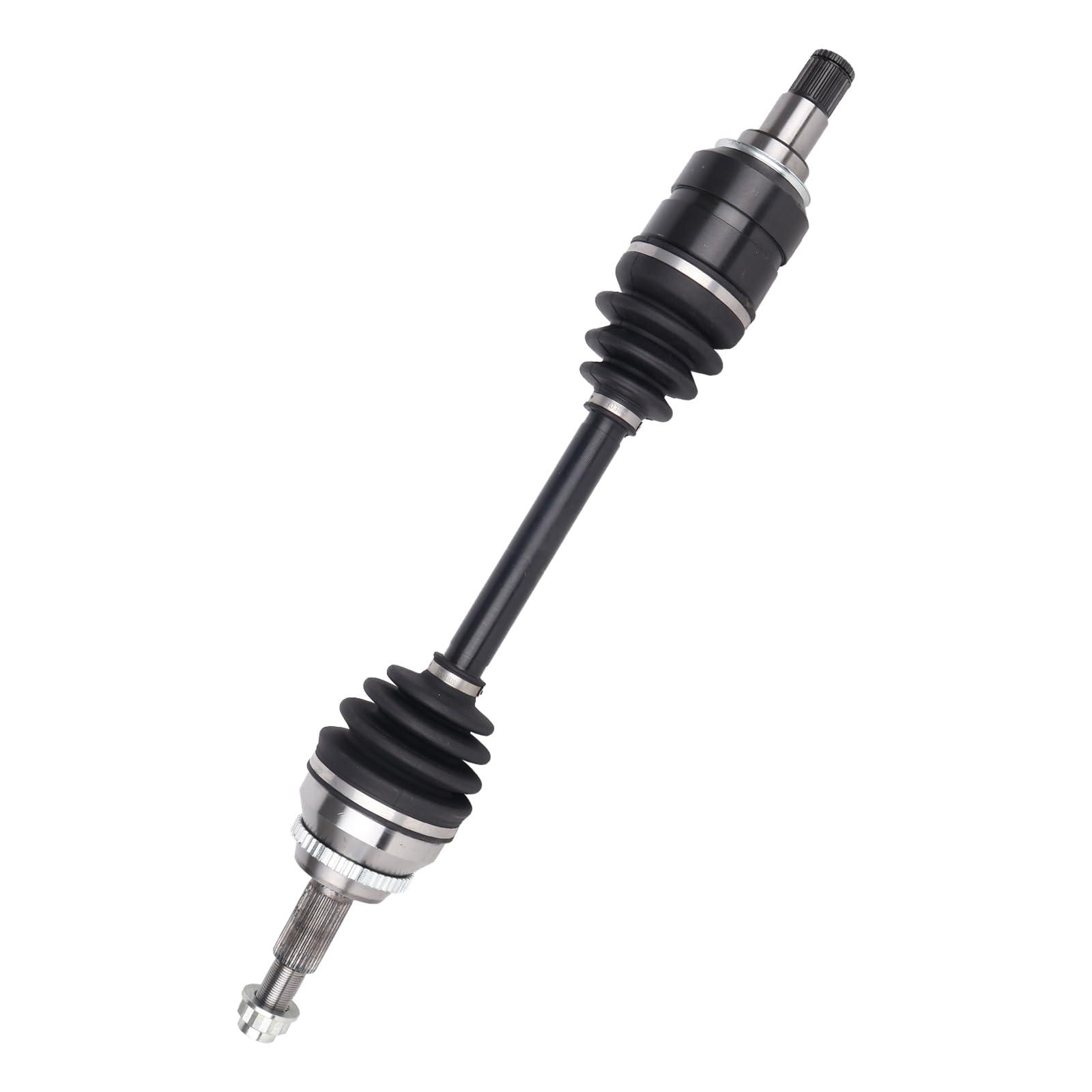

Front Left CV Axle for 2007-2017 Toyota Camry, 2008-2018 Avalon & 2007-2022 Lexus ES350

Front Left CV Axle Shaft Assembly

Front-left, driver-side CV axle shaft assembly for listed Toyota Camry, Toyota Avalon, and Lexus ES350 applications.

Critical fitment warning: The source confirms model-year ranges and front-left position but does not specify engine, FWD or AWD, hybrid or gasoline powertrain, transmission, trim, production date, ABS configuration, inner and outer spline counts, compressed length, seal-surface diameter, inboard joint design, or intermediate-shaft connection. Confirm the VIN, front-left position, engine and powertrain, transmission, drivetrain, original axle number, spline counts, compressed length, ABS design, seal surface, and inner-joint configuration before ordering. Hybrid and AWD applications are not confirmed unless the original axle and reference match.

Vehicle Compatibility

• 2007–2017 Toyota Camry — front left / driver side
• 2008–2018 Toyota Avalon — front left / driver side
• 2007–2022 Lexus ES350 — front left / driver side

Engine, gasoline/hybrid, transmission, drivetrain, trim, production-date, and ABS restrictions are not provided. Match the VIN and original axle rather than relying on year and model alone.

Reference Numbers

4342006510, 4342006770, 4342006830, 4342006860, 4342006A90, 4342006B00, 434200W210, 4342033290, NCV69453, 665279, 66-5279

Reference numbers are provided for comparison. Match them together with the VIN, engine and powertrain, transmission, drivetrain, axle dimensions, spline counts, seal surface, ABS configuration, and inboard-joint design.

Position and Quantity

• Axle: Front
• Side: Left / driver side
• Quantity: One CV axle assembly

Package Contents

One front-left CV axle shaft assembly. Axle nut, retaining clips, seals, intermediate shaft, support bearing, brackets, ABS components, transmission or differential fluid, and installation hardware are not confirmed unless shown in the product images.

Installation Notes

CV axle replacement affects steering, suspension, wheel-bearing retention, and transmission or differential sealing; professional installation is strongly recommended. Compare the replacement with the original before installation, including overall and compressed length, inner and outer spline counts, joint and seal-surface diameters, ABS configuration, and inboard connection. Inspect the wheel bearing and hub, ball joint, control arms, tie-rod end, transmission or differential seals, and engine/transmission mounts. Use a new axle nut or retaining hardware where required, follow Toyota or Lexus torque specifications, refill any lost fluid with the specified type, and check for leaks. Do not allow vehicle weight to rest on the wheel bearing while the axle is loose. Complete an alignment check if suspension geometry was disturbed.

Frequently Asked Questions

Which side does this fit?
This is for the front-left, or driver-side, position.

Does it fit hybrid models?
Hybrid compatibility is not confirmed. Verify the VIN, powertrain, original reference, dimensions, splines, and inboard joint.

Does it fit AWD models?
AWD compatibility is not confirmed. Match the VIN, drivetrain, original axle number, and physical configuration.

Is an axle nut included?
Not confirmed. Review the product images and obtain any required single-use hardware before installation.
