Front Left 4WD Wheel Hub Bearing Assembly for 2004-2008 Colorado & Canyon, Isuzu i-350/i-370, 6-Lug ABS

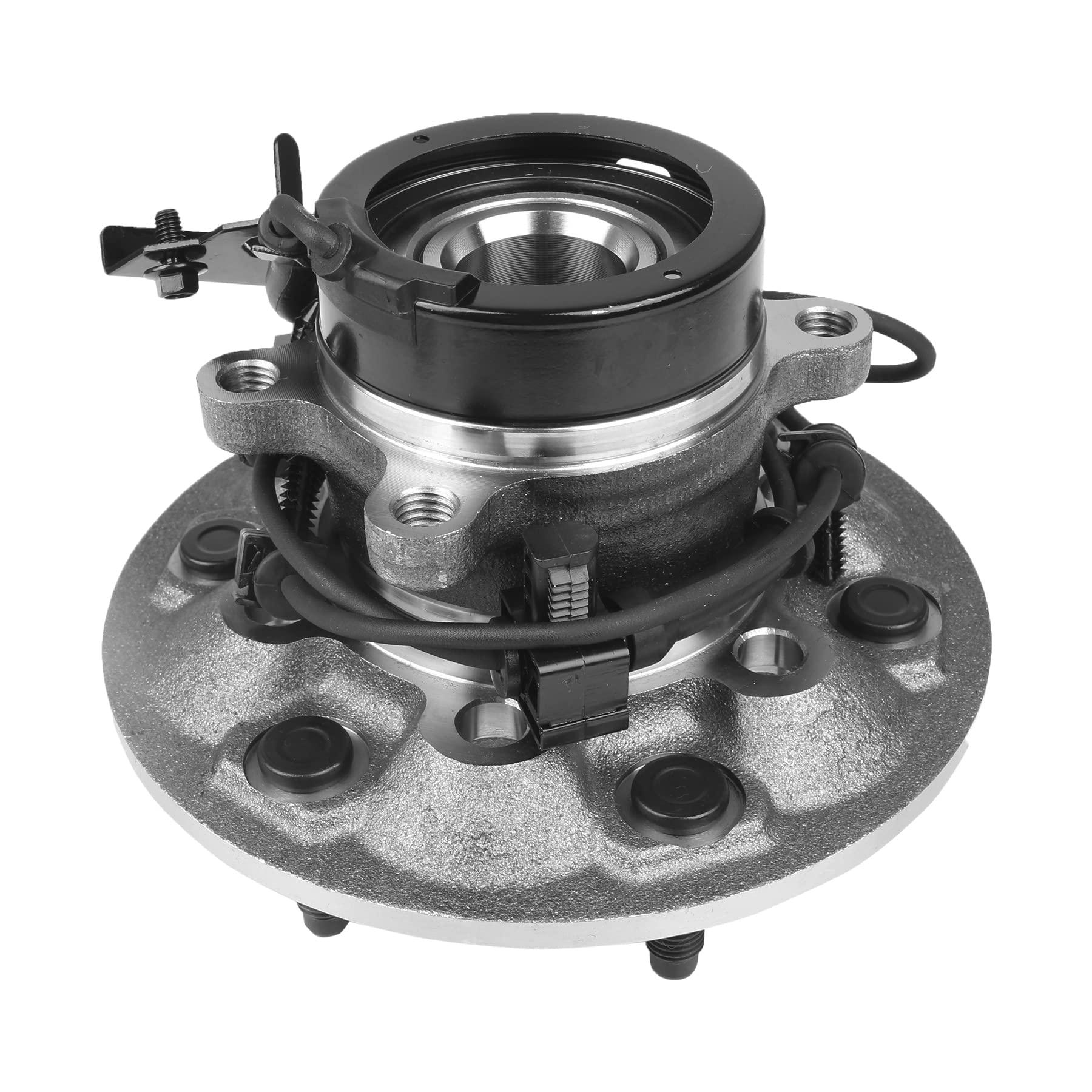

Front Left 4WD Wheel Hub and Bearing Assembly with ABS

Single front-left wheel hub and bearing assembly for the listed Chevrolet Colorado, GMC Canyon, Isuzu i-350, and Isuzu i-370 4WD applications. The source specifies a 6-lug configuration and ABS compatibility.

Critical fitment warning: This assembly is for the front left side and 4WD vehicles only. It is not confirmed for 2WD models or the front-right side. The source does not specify engine, transmission, trim, cab style, wheelbase, production date, spline count, ABS connector shape, wire length, or mounting-bolt thread. Confirm the VIN, 4WD drivetrain, left-side position, original reference number, 6-lug pattern, flange dimensions, splines, mounting points, ABS connector, and sensor configuration before ordering.

Vehicle Compatibility

• 2004–2008 Chevrolet Colorado — 4WD, front left
• 2004–2008 GMC Canyon — 4WD, front left
• 2006 Isuzu i-350 — 4WD, front left
• 2007–2008 Isuzu i-370 — 4WD, front left

Not confirmed: 2WD vehicles, front-right installation, or any model, year, drivetrain, or configuration not listed above.

Confirmed Specifications

• Position: Front left
• Drivetrain: 4WD only
• Wheel studs: 6-lug configuration
• ABS: ABS-compatible assembly
• Flange diameter: 7.25 in
• Flange offset: 2.65 in
• Bolt-circle diameter: 5.5 in

Spline count, wheel-stud thread, ABS connector, sensor wire length, mounting-bolt pattern dimensions, and axle-nut specifications are not provided.

Reference Numbers

515110, HA590060, BR930703, 8151002750

Reference numbers are provided for comparison. Match them together with the VIN, drivetrain, side, lug pattern, flange dimensions, splines, mounting points, ABS connector, and sensor configuration.

Package Contents

• One front-left wheel hub and bearing assembly

ABS compatibility is stated, but the source does not separately confirm the sensor, harness, mounting bolts, axle nut, dust shield, seals, or other hardware. Check the product images and compare the complete assembly with the original part before installation.

Installation Notes

Wheel-bearing service affects steering, braking, ABS operation, and wheel retention. Professional installation is recommended. Inspect the steering knuckle, CV axle, axle splines, ABS wiring, brake components, and mounting surfaces before installation. Compare the flange, offset, bolt circle, connector, wire routing, and mounting points with the original hub. Follow vehicle-specific torque procedures for the axle nut, hub fasteners, brake components, and wheel nuts. Do not use an impact tool for final axle-nut torque unless the service procedure permits it. After installation, verify wheel rotation, end play, ABS operation, brake operation, wheel-nut torque, and the absence of warning lights or abnormal noise.

Frequently Asked Questions

Is this for the front left or front right?
This listing is specifically for the front-left side.

Does it fit 2WD models?
No 2WD fitment is confirmed. The source specifies 4WD only.

How many hubs are included?
One front-left hub and bearing assembly is included.

Is the ABS sensor included?
The assembly is specified for ABS applications, but sensor and harness inclusion are not separately confirmed. Check the images and connector configuration before ordering.
