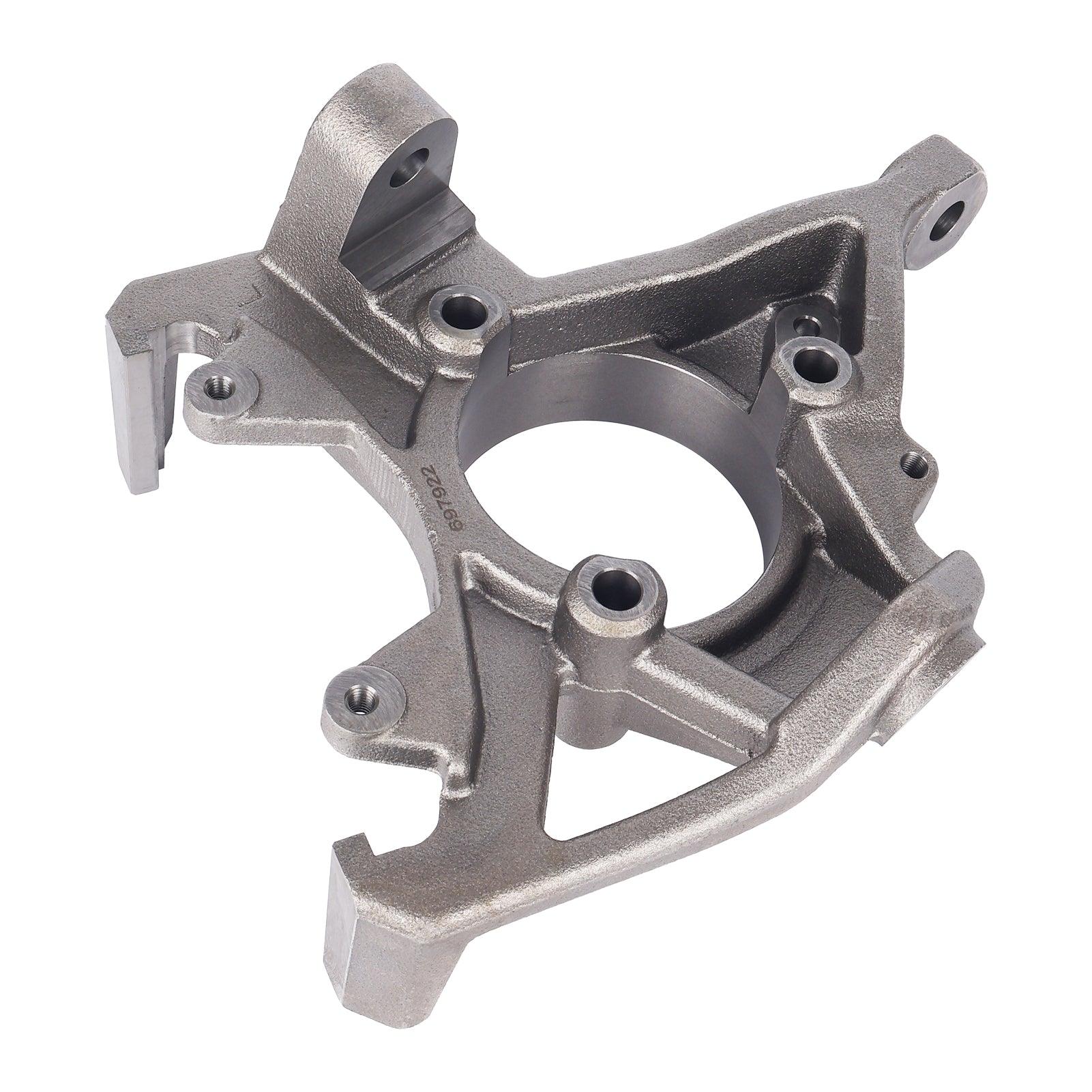

Front Left Steering Knuckle Assembly for Select Jeep Cherokee, Comanche, Grand Cherokee & TJ

Front Left Steering Knuckle Assembly for Select Jeep Applications

Front driver-side / left steering-knuckle assembly application for the source-listed Jeep Cherokee, Comanche, Grand Cherokee, Grand Wagoneer, TJ, and Wagoneer configurations below. Fitment depends on drivetrain, transfer-case series, ABS configuration, and model year.

Critical fitment warning: This is not a universal 1990–2006 Jeep part. Confirm the VIN, exact model and year, front-left position, RWD/2WD or 4WD drivetrain, front axle, 231 or 242 transfer case where specified, ABS type, original casting and reference number, hub bore, caliper mounts, ball-joint tapers, tie-rod location, dust-shield pattern, and all mounting dimensions before ordering.

Source-Listed Compatibility

• 1990–1993 Jeep Cherokee 4WD — with 231 Series or 242 Series transfer case
• 1991–1993 Jeep Cherokee RWD — source also states 4-wheel ABS; verify this exact configuration
• 1994–2001 Jeep Cherokee — source states all models
• 1990–1992 Jeep Comanche 4WD — with 231 Series or 242 Series transfer case
• 1991–1992 Jeep Comanche RWD
• 1993–1998 Jeep Grand Cherokee — source states all models
• 1993 Jeep Grand Wagoneer — source states all models
• 1997–2006 Jeep TJ
• 1990 Jeep Wagoneer — non-ABS with 242 Series transfer case
• 1990 Jeep Wagoneer — with 231 Series transfer case; ABS requirement not separately clear in the source

The source punctuation around the 1991–1993 Cherokee RWD and “4-Wheel ABS” wording is not fully clear. Treat 4-wheel ABS as a required verification item rather than assuming it applies to every Cherokee in the surrounding ranges.

The source explicitly lists TJ but does not separately name Wrangler. A Wrangler tag alone is not used to expand fitment beyond the source-listed TJ designation. Other Jeep models and configurations outside the list above are not confirmed.

Position and Package Verification

• Axle position: Front
• Side: Left / driver side
• Product type: Steering-knuckle assembly
• Package quantity: Not separately itemized
• ABS sensor provisions: Not specified
• Hub and bearing: Not separately confirmed
• Ball joints: Not separately confirmed
• Brake dust shield: Not separately confirmed
• Mounting hardware: Not confirmed

The term “assembly” does not confirm every attached component. The source does not separately itemize the steering-knuckle casting, hub and bearing, wheel studs, ABS sensor, tone ring, dust shield, ball joints, spindle, seals, snap rings, caliper bracket, axle nut, cotter pin, or mounting fasteners. Confirm the product images and received package before disassembly.

Fitment Checks

• Confirm driver-side / front-left orientation from the steering arm, tie-rod location, caliper mounts, and sensor routing.
• Verify RWD/2WD or 4WD configuration and the exact front axle design.
• Identify the transfer case where the source requires 231 Series or 242 Series.
• Confirm ABS or non-ABS configuration, sensor mounting point, wiring route, connector, and tone-ring compatibility.
• Compare the hub bore, bearing interface, wheel-stud pattern, axle-shaft or spindle interface, and axle-nut arrangement.
• Compare upper and lower ball-joint tapers, tie-rod taper and direction, steering-stop design, and all mounting dimensions.
• Verify brake-caliper mounting-ear spacing, rotor size and offset, dust-shield pattern, and wheel clearance.

Installation Notes

Professional steering and suspension installation is strongly recommended. Safely support the vehicle and follow the exact model-, axle-, drivetrain-, ABS-, and front-left-specific service procedure. Steering, suspension, brake, and wheel-bearing components directly affect vehicle control.

Before installation, compare the replacement assembly with the original front-left part for casting, steering-arm direction, ball-joint tapers, tie-rod mounting direction, hub and bearing interface, axle opening, ABS provisions, caliper-ear dimensions, dust-shield holes, steering stops, and all offsets.

Inspect the wheel hub and bearing, axle shaft or spindle, CV joint where applicable, ball joints, tie-rod end, brake rotor and caliper, dust shield, ABS sensor and wiring, seals, cotter pins, and all mounting hardware. Replace damaged or manufacturer-designated single-use components as required.

Use the vehicle manufacturer's procedures and torque specifications for ball-joint nuts, tie-rod hardware, hub and bearing fasteners, axle nut, caliper hardware, wheel fasteners, and all related components. Never use an impact tool to establish final bearing preload or axle-nut torque unless the service procedure specifically allows it.

After installation, bleed the brake system if the hydraulic circuit was opened, verify ABS wiring and sensor clearance, and check wheel-bearing operation. Perform a wheel alignment and inspect steering-wheel position, toe, camber and caster where adjustable, brake operation, ABS warning lights, abnormal noise, and fastener security. Conduct the initial road test at low speed in a controlled area.

Frequently Asked Questions

Is this for the front-left side?
Yes. The source title identifies a front-left steering-knuckle assembly.

Does this fit every Jeep from 1990 through 2006?
No. Only the exact source-listed models and configurations above are supported.

Is this for 2WD/RWD or 4WD?
The answer varies by model and year. Some Cherokee and Comanche applications are explicitly separated by 4WD and RWD, and some 4WD applications require a 231 or 242 transfer case.

Does it fit ABS vehicles?
ABS requirements vary. The source specifically mentions 4-wheel ABS near the 1991–1993 Cherokee RWD application and non-ABS for one 1990 Wagoneer configuration. Verify the original sensor and tone-ring system.

Are the hub bearing and ball joints included?
The source does not separately itemize the hub, bearing, ball joints, ABS sensor, dust shield, or hardware. Confirm from the product images and received components.

Is alignment required?
A wheel alignment should be performed after steering-knuckle replacement and corrected to the vehicle specifications.
