8-Piece Front Control Arm, Ball Joint & Tie Rod Kit for 2002-2006 Honda CR-V
Available in stock (20)
8-Piece Front Suspension and Steering Kit for 2002–2006 Honda CR-V
Front-end replacement kit for 2002–2006 Honda CR-V. The package combines left and right lower control arms with lower ball joints and inner and outer tie rod ends.
Fitment warning: The available source does not specify FWD/AWD configuration, engine, transmission, trim, steering-rack variation, production-date breakpoints, or reference numbers. Compare the original control arms, ball joints, and tie rods for left/right shape, mounting points, stud dimensions, thread size and direction, taper, length, and steering-rack connection. Verify by VIN and review the product images before ordering.
Vehicle Compatibility
- 2002–2006 Honda CR-V
Confirm drivetrain, steering-rack configuration, and original front suspension geometry before ordering.

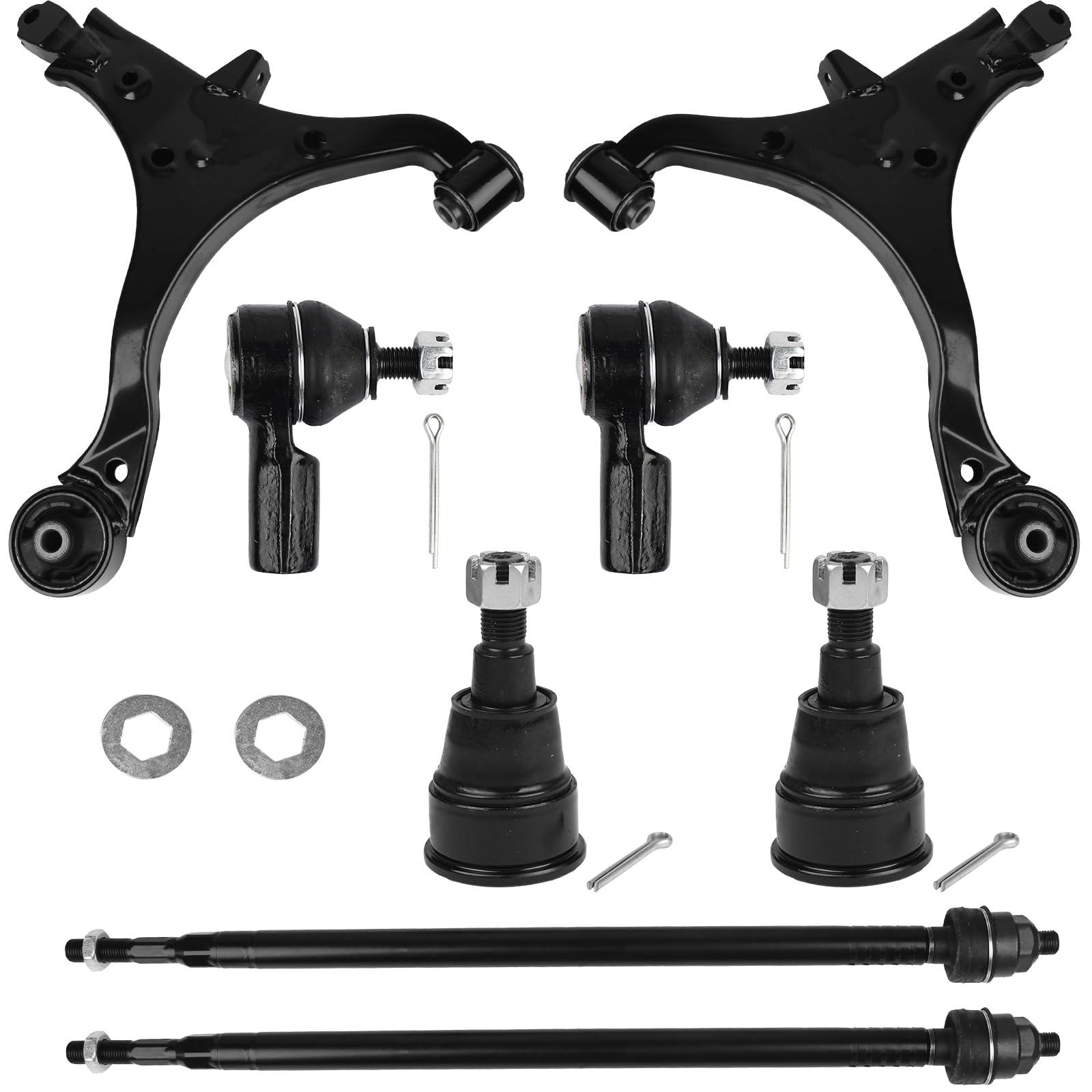

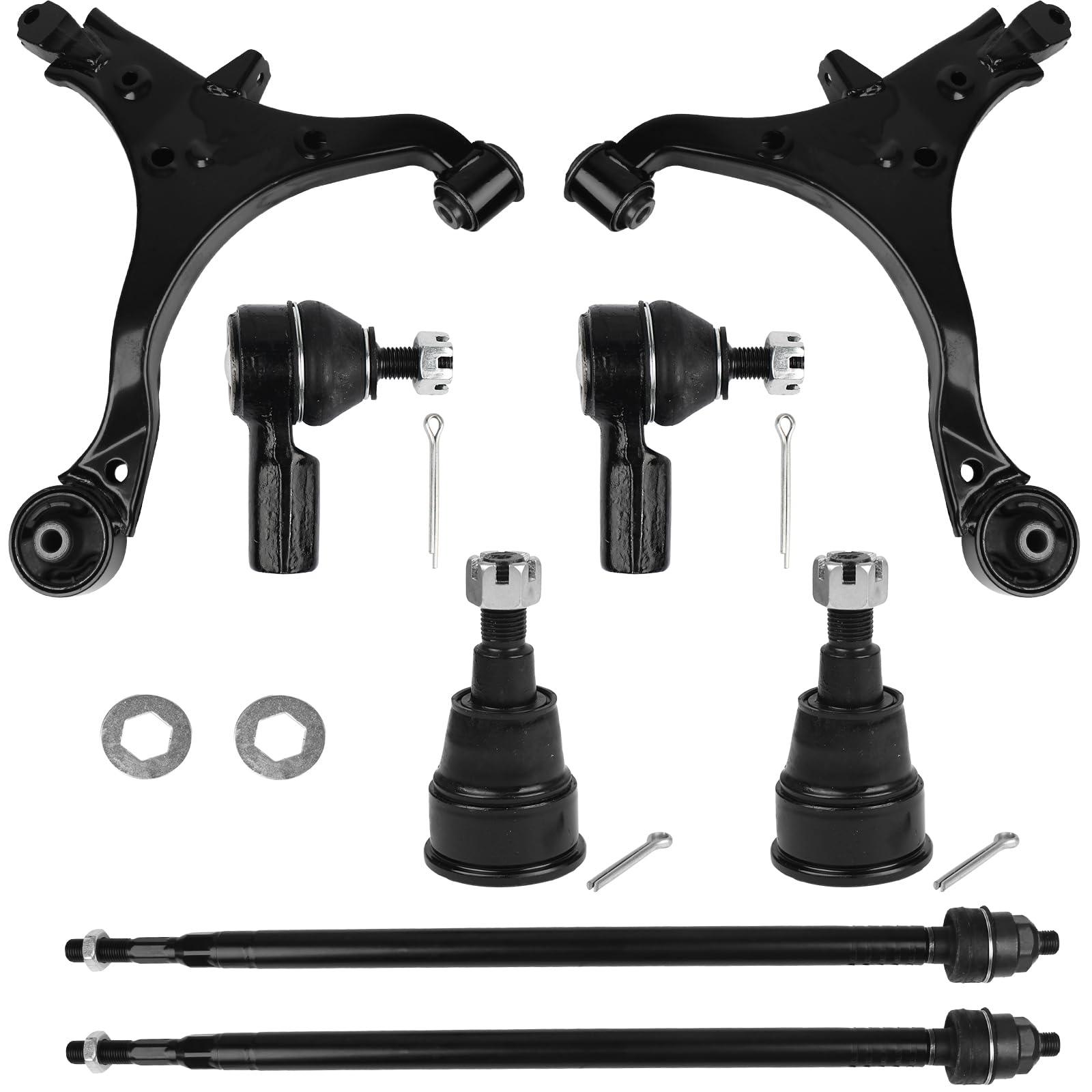

Package Contents
- One front-left lower control arm
- One front-right lower control arm
- Two front lower ball joints
- Two front outer tie rod ends
- Two front inner tie rod ends
- Total: Eight front suspension and steering components
The listed components are confirmed by the source. Control-arm bushings, ball-joint hardware, tie-rod boots, clamps, jam nuts, cotter pins, mounting bolts, and other installation hardware are not separately confirmed.
Common Front-End Symptoms
- Clunking or knocking over bumps
- Steering looseness, wander, or delayed response
- Uneven or accelerated front tire wear
- Excess movement at a control-arm bushing, ball joint, or tie rod
- Alignment that will not remain within specification
Similar symptoms may also be caused by struts, wheel bearings, sway-bar links, subframe bushings, steering-rack wear, tires, or alignment. Inspect the complete front suspension and steering system before replacement.
Installation Notes
Professional installation is strongly recommended. Measure or mark the original tie-rod positions before removal, but do not rely on those measurements as a substitute for alignment. Inspect the steering rack, rack boots, subframe mounting points, steering knuckles, struts, sway-bar links, CV axles, and wheel bearings. Follow Honda’s torque procedures. Where required, tighten bonded-rubber control-arm bushing fasteners at normal ride height. Install cotter pins and locking hardware where specified. A four-wheel alignment is required after installation, followed by a controlled low-speed safety check before normal road use.
Frequently Asked Questions
How many parts are included?
Eight total: two control arms, two lower ball joints, two outer tie rod ends, and two inner tie rod ends.
Are both left and right sides covered?
Yes. The package includes left and right lower control arms plus two of each listed ball-joint and tie-rod component.
Does this fit both FWD and AWD models?
The source does not state drivetrain restrictions. Verify the VIN, steering-rack configuration, and original component dimensions.
