10-Piece Front Suspension Kit for 2009-2014 Ford F-150 4WD, Non-Raptor

10-Piece Front Suspension and Steering Kit for 2009–2014 Ford F-150 4WD

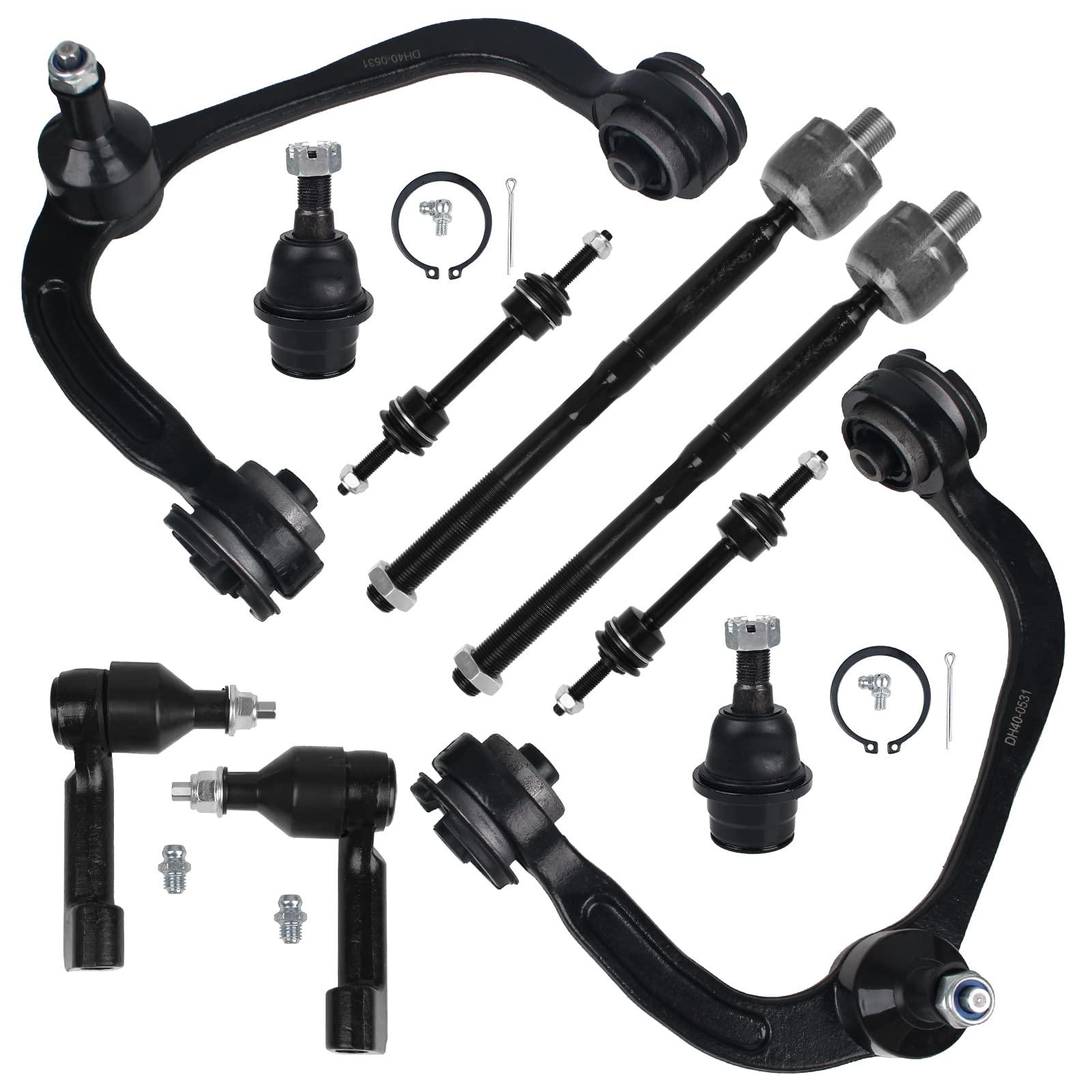

Front-end replacement kit for 2009–2014 Ford F-150 4WD models. The package combines left and right upper control arms with ball joints, sway-bar links, inner and outer tie rod ends, and lower ball joints.

Important fitment restriction: This kit is for 4WD models only and is not for SVT Raptor models. The available source does not specify engine, cab style, wheelbase, trim, steering-rack variation, suspension package, production-date breakpoints, or reference numbers. Compare the original components for left/right shape, mounting points, stud dimensions, thread size and direction, taper, length, and steering-rack connection. Verify by VIN before ordering.

Vehicle Compatibility

• 2009–2014 Ford F-150 4WD — excludes SVT Raptor

Package Contents

• One front-left upper control arm with ball joint
• One front-right upper control arm with ball joint
• Two front stabilizer sway-bar links
• One front-left outer tie rod end
• One front-right outer tie rod end
• Two front inner tie rod ends
• Two front lower ball joints
• Total: Ten front suspension and steering components

The listed components are confirmed by the source. Control-arm bushings, ball-joint hardware, tie-rod boots, clamps, jam nuts, cotter pins, mounting bolts, and other installation hardware are not separately confirmed.

Common Front-End Symptoms

• Clunking or knocking over bumps
• Steering looseness, wander, or delayed response
• Uneven or accelerated front tire wear
• Excess movement at a control-arm bushing, ball joint, tie rod, or sway-bar link
• Alignment that will not remain within specification

Similar symptoms may also be caused by struts, wheel bearings, lower control arms, steering-rack wear, tires, or alignment. Inspect the complete front suspension and steering system before replacement.

Installation Notes

Professional installation is strongly recommended. Measure or mark the original tie-rod positions before removal, but do not use those measurements as a substitute for alignment. Inspect the steering rack, rack boots, lower control arms, steering knuckles, struts, CV axles, wheel bearings, and frame mounting points. Follow Ford’s torque procedures. Where required, tighten bonded-rubber control-arm bushing fasteners at normal ride height. Install cotter pins and locking hardware where specified. A four-wheel alignment is required after installation, followed by a controlled low-speed safety check before normal road use.

Frequently Asked Questions

Does this fit 2WD F-150 models?
No. The available fitment specifies 4WD models only.

Does this fit an F-150 SVT Raptor?
No. Raptor models are explicitly excluded.

How many components are included?
Ten total: two upper control arms with ball joints, two sway-bar links, two outer tie rod ends, two inner tie rod ends, and two lower ball joints.
