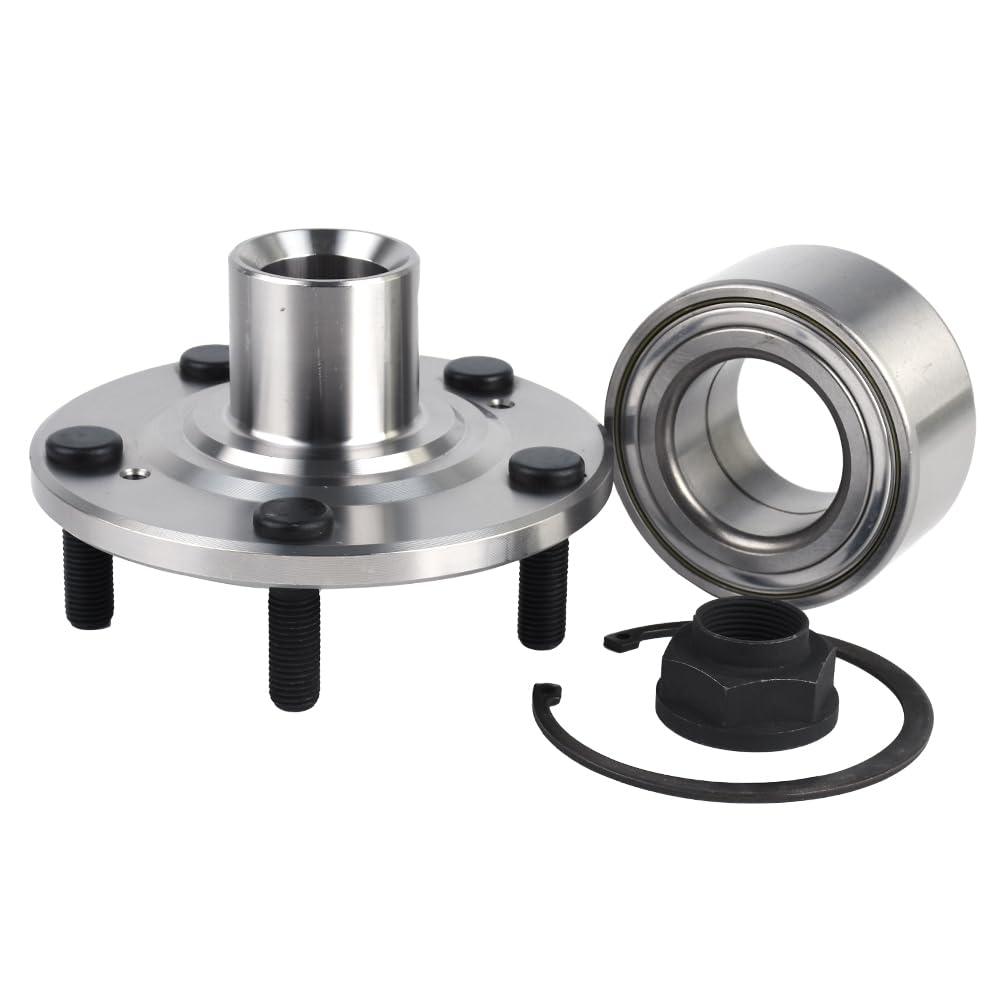

Front 5-Lug Wheel Bearing & Hub Assembly for 2002-2006 Honda CR-V & 2003-2011 Element

Front 5-Lug Wheel Bearing and Hub Assembly for Honda CR-V and Element

Front wheel bearing and hub assembly for the exact source-listed Honda CR-V and Honda Element model-year ranges below.

Critical fitment warning: Fitment is model-, year-, drivetrain-, and brake/ABS-system-specific. The source does not state front-left versus front-right, package quantity, FWD versus AWD, ABS compatibility, sensor or encoder-ring inclusion, axle spline count, production-date breaks, brake configuration, or engine. Confirm the VIN and compare the original hub, side application, drivetrain, ABS system, flange and pilot dimensions, bolt circle, axle splines, mounting method, and reference numbers before ordering.

Vehicle Compatibility

• 2002–2006 Honda CR-V — front application
• 2003–2011 Honda Element — front application

Not confirmed: Universal interchange across FWD and AWD, all ABS configurations, unlisted years, or vehicles whose original hub dimensions, splines, mounting method, sensor arrangement, or brake hardware differ.

Specifications

• Axle position: Front
• Wheel lug count: 5
• Flange diameter: 5.48 in
• Bolt circle diameter: 4.5 in
• Hub pilot diameter: 1.77 in
• Wheel pilot diameter: 2.52 in
• Side: Not specified by the source
• Package quantity: Not specified by the source

Measurements are retained exactly as supplied. Verify the measuring points and compare all dimensions with the original component before installation.

Reference Numbers

295-96036, BR930580K

Reference numbers are retained as supplied after removing an unrelated formatting character. A matching reference alone does not override drivetrain, ABS, spline, dimension, mounting, or production differences.

Included Components

• Front wheel bearing and hub assembly application; exact package quantity not specified

The source does not confirm an ABS sensor, encoder ring, axle nut, wheel studs, snap ring, seals, knuckle, dust shield, mounting bolts, or other installation hardware. Verify the product images and received package before disassembly.

Installation Notes

Wheel-bearing and hub service is safety-critical and should be performed by a qualified technician using the Honda procedure for the specific VIN and drivetrain. Determine whether the assembly is press-fit or bolt-on before beginning work and use appropriate bearing, hub, and axle tools.

Inspect the steering knuckle, axle splines and threads, CV joint, ABS components, wheel studs, dust shield, brake rotor, caliper, ball joint, tie-rod end, and fasteners. Clean and inspect all mating surfaces. Install the bearing and hub in the correct direction, protect any magnetic encoder, and apply force only to the specified race during pressing.

Use new single-use hardware where required and follow Honda torque specifications for the axle nut, hub or bearing retainers, brake components, and wheel fasteners. After installation, verify wheel rotation and end play, ABS operation, brake function, and the absence of noise or looseness. Check wheel alignment if steering or suspension geometry was disturbed.

Frequently Asked Questions

Does this fit the front-left or front-right?
The source identifies a front application but does not specify side interchange. Compare the original hub and verify the required side.

Is one assembly or a pair included?
Package quantity is not stated. Do not assume a pair from the title or reference numbers.

Does it include an ABS sensor?
ABS sensor and encoder-ring inclusion are not confirmed.

Does it fit both FWD and AWD?
Drivetrain coverage is not stated. Verify the VIN, axle splines, and original hub configuration.
