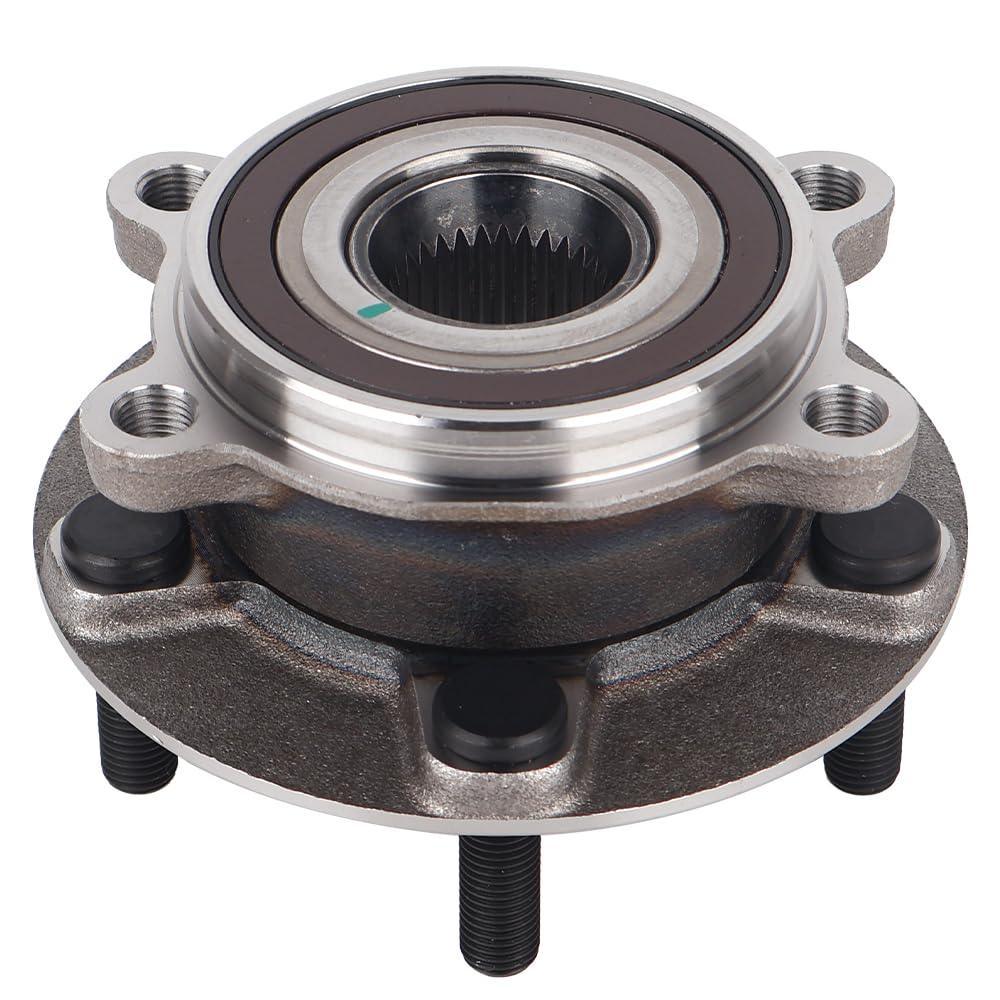

Front Wheel Hub & Bearing Assembly for Mazda 6 2014-2019 & CX-5 2013-2022 (5-Lug, ABS)

Front Wheel Hub & Bearing Assembly for Mazda 6 & CX-5

A front hub and bearing assembly supplied as one sealed unit, so the bearing, hub flange and ABS sensor ring come pre-assembled and correctly preloaded rather than needing to be pressed together. A failing front bearing usually announces itself as a hum or growl that rises with road speed and changes as the car is steered from side to side, sometimes with an ABS warning light if the sensor ring is damaged. Each assembly is quality tested to meet or exceed OEM performance standards.

Fitment

• Mazda 6 2014-2019
• Mazda CX-5 2013-2022
• Position: Front axle, fits either side
• Quantity: 1 piece
• Not for: rear applications, the 2013 Mazda 6, or years outside those listed for each model

The two models have different year ranges, so check yours against the list above. Confirm by VIN, or match part number 513347 against your existing hub, before ordering. Replacing hubs in pairs is good practice even when only one side is noisy.

Specifications

• Lugs: 5
• ABS: Yes, for vehicles with an ABS system
• Bolt circle diameter: 114.3 mm
• Flange diameter: 138.6 mm
• Flange offset: 42.7 mm
• Replaces: 513347, KD353304XD, KD353304XC
• Standards: Quality tested to meet or exceed OEM performance standards

Installation notes

• Replacement should be carried out by a qualified technician.
• The assembly arrives pre-assembled, so no bearing press work is required.
• Torque the axle nut and hub fasteners to the vehicle's factory specifications.
• Take care not to damage the ABS sensor or its wiring during removal and refitting.

FAQ

Does it fit left or right? Either side of the front axle.

How many are included? One assembly. Order two if you are doing both front corners.

Is the ABS ring included? Yes, this is the ABS version and comes as a complete sealed unit.

Why are the Mazda 6 and CX-5 listed together? They share a platform of this era and use the same front hub.
