Front Wheel Hub Bearing Assembly for Chevy Tahoe, Silverado, GMC Yukon, Sierra, Cadillac Escalade, Etc.
Available in stock (20)

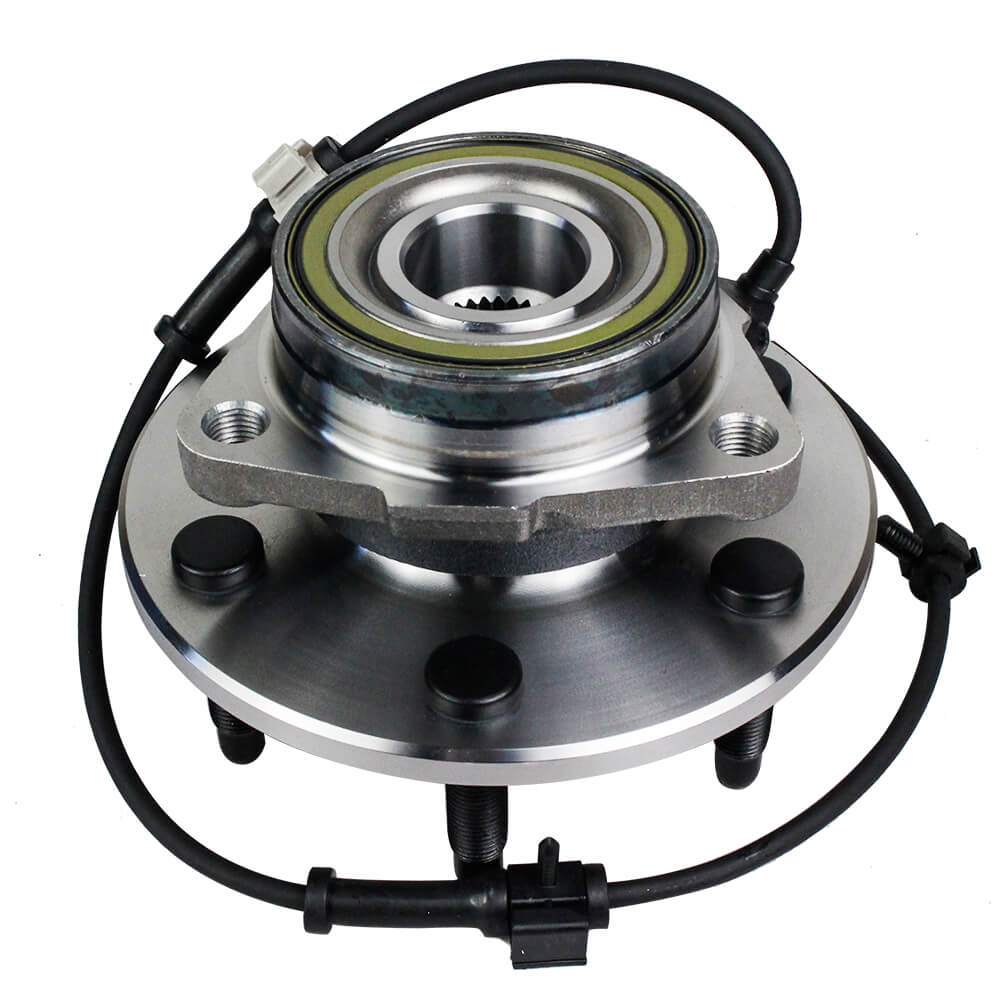

4WD / AWD Front Wheel Hub Bearing Assembly — 515036 (4WD / AWD Only, 6-Lug, ABS, Front) — 1999–2013 Chevrolet / GMC / Cadillac — GMT800 Platform
Full Vehicle Compatibility — GMT800 Platform (4WD / AWD Only), 1999–2013
| Make | Model | Years |
|---|---|---|
| Chevrolet | Avalanche 1500 | 2002–2006 |
| Chevrolet | Express 1500 | 2003–2013 |
| Chevrolet | Express 2500 | 2003–2005 |
| Chevrolet | Silverado 1500 | 1999–2006 |
| Chevrolet | Silverado 1500 Classic | 2007 |
| Chevrolet | Suburban 1500 | 2000–2006 |
| Chevrolet | Tahoe | 2000–2006 |
| Cadillac | Escalade | 2002–2006 |
| Cadillac | Escalade ESV | 2002–2006 |
| Cadillac | Escalade EXT | 2002–2006 |
| GMC | Savana 1500 | 2003–2013 |
| GMC | Savana 2500 | 2003–2005 |
| GMC | Sierra 1500 | 1999–2006 |
| GMC | Sierra 1500 Classic | 2007 |
| GMC | Yukon | 2000–2006 |
| GMC | Yukon XL 1500 | 2000–2006 |
All fitments above: 4WD / AWD only. Confirm drivetrain configuration before ordering. Contact us with your VIN for fitment verification if unsure.
4WD / AWD vs 2WD Hub — Why These Are Different Parts
On GMT800 full-size trucks and SUVs, the front hub assembly differs between 4WD/AWD and 2WD/RWD configurations. The 4WD/AWD hub (515036) includes the front CV axle stub interface and larger bearing geometry required for driven front axle use. The 2WD/RWD hub (515054) is a lighter assembly without this interface. Installing the wrong specification results in incorrect fitment. If your vehicle is 2WD/RWD, see our separate SA-515054 listing.
Part Specifications
| Specification | Details |
|---|---|
| Part Number | 515036 |
| SKU | SA-515036HD (single unit) |
| Replaces OEM / Cross Reference | 19209040 (GM OEM), 15233113 (GM OEM), 15112382 (GM OEM), SP500300, H515036, FW291, 515036 |
| Position | Front (single unit — left or right) |
| Drivetrain | 4WD / AWD Only (NOT 2WD / RWD) |
| Lug Count | 6 Lugs |
| ABS | Yes — ABS sensor ring integrated |
| Flange Diameter | 7.08 in (179.8 mm) |
| Flange Offset | 1.96 in (49.8 mm) |
| Bolt Circle Diameter | 4.96 in (126.0 mm) |
| Weight | ~5.97 kg (single unit) |
Key Features
- GMT800 4WD / AWD Front Hub — Widest Platform Coverage: One part number covers the complete 4WD/AWD front hub specification across all GMT800 Silverado 1500, Sierra 1500, Tahoe, Yukon/YukonXL 1500, Suburban 1500, Avalanche 1500, Escalade/ESV/EXT, Express 1500–2500, and Savana 1500–2500 — spanning 1999–2013.
- Three GM OEM Cross-References: Replaces GM OEM parts 19209040, 15233113, and 15112382 — plus aftermarket references SP500300, H515036, and FW291. Direct fit for all 4WD/AWD GMT800 front hub positions, no modification required.
- OEM-Equivalent Quality: Meets or exceeds OEM performance standards. Tested for load rating, bearing clearance, and ABS sensor signal integrity before shipment.
- ABS-Compatible: Integrated ABS tone ring — maintains factory ABS, traction control, and stability control on all compatible 4WD/AWD GMT800 vehicles.
- Complete Assembly: Hub, bearing, and ABS ring pre-assembled — no press-fit or bearing packing required.
Installation Notes
- Professional installation recommended. Requires standard hub/knuckle removal including front CV axle disengagement for GMT800 4WD/AWD front suspension.
- Torque all fasteners to OEM specification. Verify ABS sensor connector seating after installation.
- Confirm 4WD/AWD drivetrain before installation. 2WD/RWD variants require SA-515054.
- For both front corners, order quantity 2.
Note: Single unit. 515036, 4WD/AWD only, 6-lug, ABS. Replaces GM OEM 19209040 / 15233113 / 15112382 / SP500300 / H515036 / FW291. Fits 1999–2013 GMT800 Chevy/GMC/Cadillac 4WD/AWD vehicles listed above. Confirm 4WD/AWD drivetrain before ordering.
