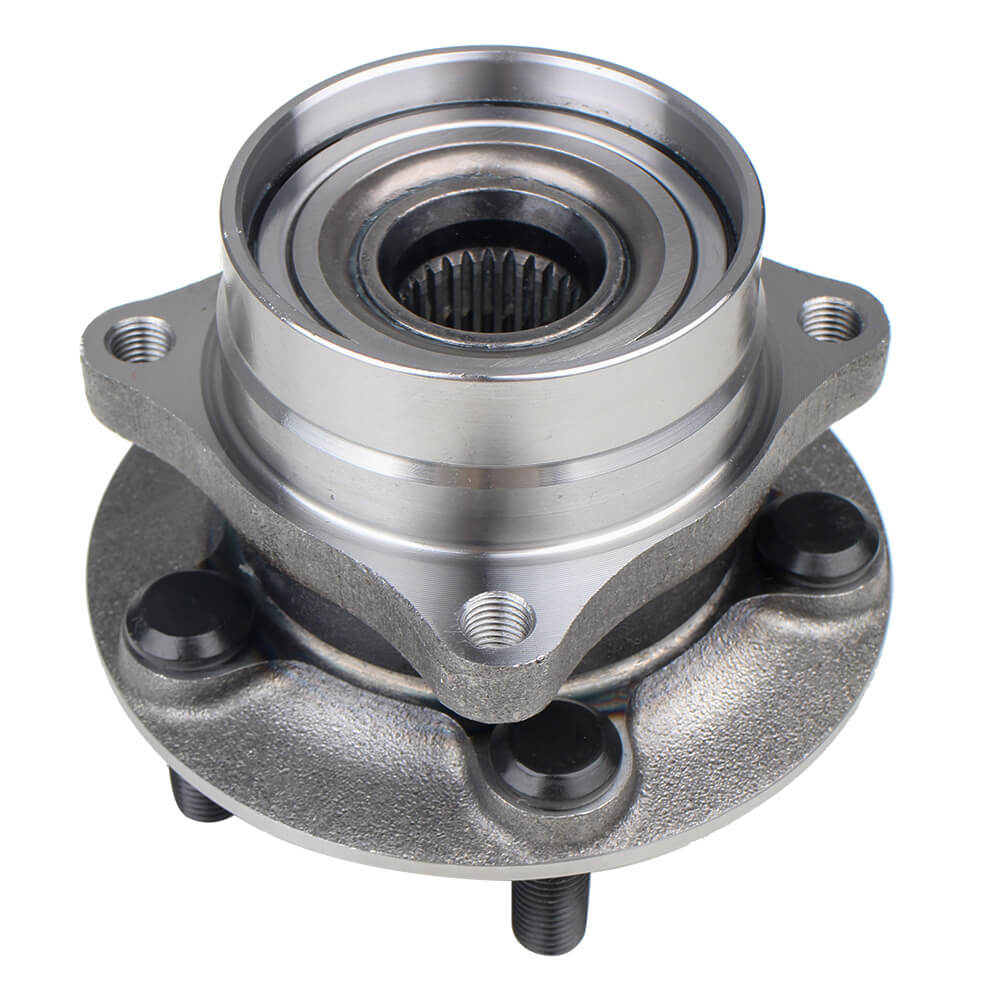

Front Wheel Hub Bearing Assembly for 2004-2009 Toyota Prius
Available in stock (20)
Front Wheel Hub Bearing Assembly — 513265 (5-Lug, Non-ABS, Front) — 2004–2009 Toyota Prius (XW20 / NHW20)
This hub assembly does NOT include an ABS sensor ring. It is designed for Prius XW20 variants without an ABS-integrated hub sensor. Most 2004–2009 Prius models are equipped with ABS — however, some configurations use a separate ABS sensor mounted at a different location rather than an integrated hub ring. Installing this Non-ABS hub on a vehicle that requires an ABS-integrated hub will result in ABS system malfunction and warning lights. Confirm your Prius XW20's hub ABS sensor configuration before ordering. Contact us with your VIN if unsure.
Full Vehicle Compatibility — Toyota Prius XW20 Platform
| Make | Model | Generation | Years |
|---|---|---|---|
| Toyota | Prius | Second Generation (XW20 / NHW20) | 2004–2009 |
Fits the second-generation Toyota Prius (XW20 / NHW20) across all trim levels (Standard, Touring, etc.) for the 2004–2009 model years. Does NOT fit the first-generation Prius (NHW11, 2001–2003) or third-generation Prius (ZVW30, 2010+). Confirm your Prius generation and hub ABS sensor configuration before ordering.
Part Specifications
| Specification | Details |
|---|---|
| Part Number | 513265 |
| SKU | SA-513265 (single unit) |
| Replaces OEM / Cross Reference | 513265, WE60949, HA590064 |
| Position | Front (single unit — left or right) |
| ABS | Non-ABS — No integrated ABS sensor ring |
| Lug Count | 5 Lugs |
| Flange Diameter | 4.92 in (124.9 mm) |
| Flange Offset | 1.65 in (41.9 mm) |
| Bolt Circle Diameter | 3.94 in (100.0 mm) — Toyota standard 5×100 |
| Weight | ~2.83 kg (single unit) |
Key Features
- Toyota Prius XW20 (2004–2009) Front Hub: Correct specification for second-generation Prius (XW20/NHW20) front hub position on Non-ABS hub configurations. NOT for first-generation (NHW11) or third-generation (ZVW30) Prius.
- Non-ABS Construction: No integrated ABS tone ring. For Prius XW20 configurations where the ABS sensor is not hub-integrated. Confirm your hub ABS configuration via VIN before ordering.
- Toyota 5×100 Bolt Pattern: Fits the standard Toyota 5×100 bolt pattern used on the Prius XW20 platform.
- OEM-Equivalent Quality: Meets or exceeds OEM performance standards. Tested for load rating and bearing clearance before shipment.
- Complete Assembly: Hub and bearing pre-assembled — no press-fit or bearing packing required.
Installation Notes
- Professional installation recommended for Toyota Prius front hub replacement.
- Confirm Non-ABS hub configuration before installation. Installing a Non-ABS hub where an ABS-integrated hub is required will cause ABS system faults.
- Torque all fasteners to OEM specification.
- For both front corners, order quantity 2.
Note: Single unit, front position. Non-ABS. 513265, 5-lug, 5×100. Replaces WE60949 / HA590064. Fits 2004–2009 Toyota Prius XW20 / NHW20 (second generation) — Non-ABS hub configuration only. Verify ABS hub configuration via VIN before ordering.
