Front Wheel Hub Bearing Assembly for 07-15 Chevy, 07-09 Pontiac, 08-10 Saturn, 07-09 Suzuki
Available in stock (20)

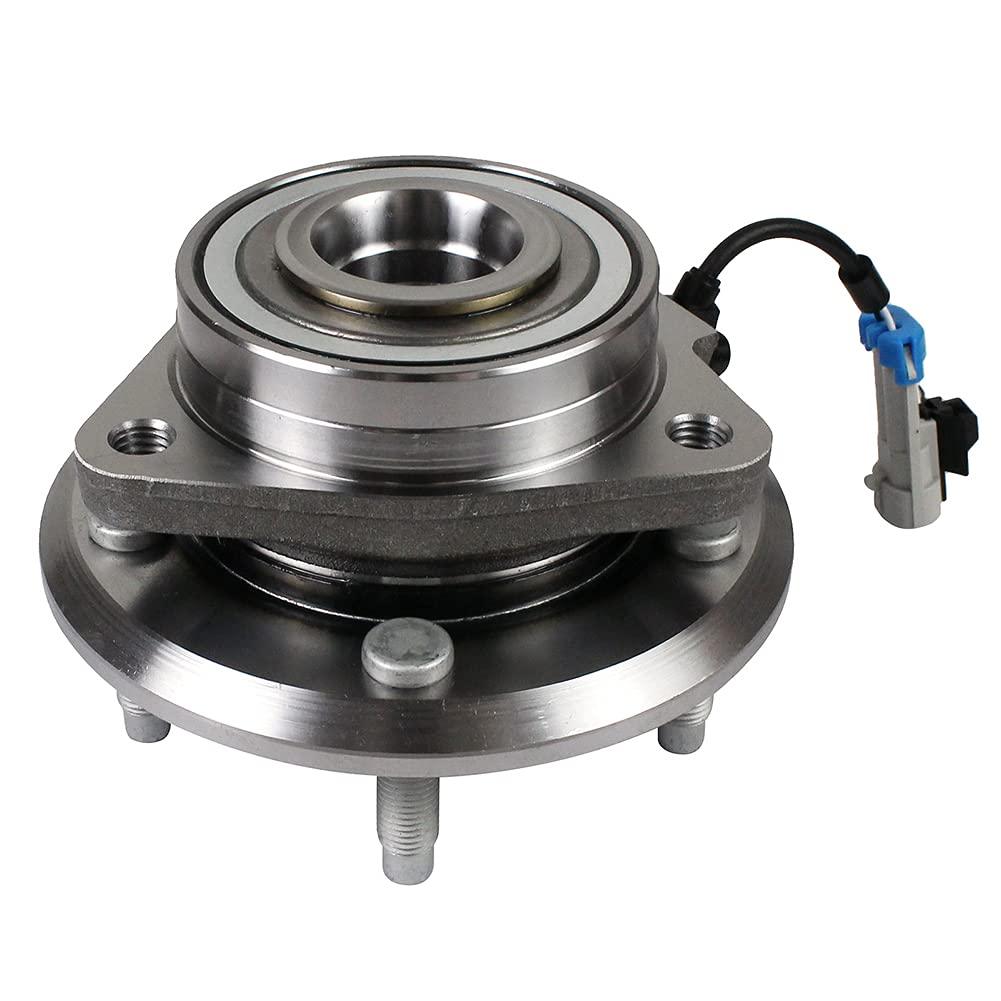

Front Wheel Hub Bearing Assembly — 513276 (5-Lug, ABS, Front) — 2007–2009 Chevy Equinox / 2012–2015 Captiva Sport / 2007–2009 Pontiac Torrent / 2008–2010 Saturn Vue / 2007–2009 Suzuki XL-7
Full Vehicle Compatibility — GM Theta Platform (Second Generation)
| Make | Model | Years | Notes |
|---|---|---|---|
| Chevrolet | Equinox | 2007–2009 | Theta platform, first generation (late) — all trims |
| Chevrolet | Captiva Sport | 2012–2015 | Theta platform — fleet/rental market variant |
| Pontiac | Torrent | 2007–2009 | Theta platform — Equinox sister model |
| Saturn | Vue | 2008–2010 | Theta platform, second generation — NOT first-generation Vue (2002–2007) |
| Suzuki | XL-7 | 2007–2009 | Theta platform second generation — NOT earlier XL-7 (Grand Vitara-based) |
- Saturn Vue: This hub fits the 2008–2010 Vue (second generation, Theta platform) only. The 2002–2007 Vue (first generation) uses a different hub specification (513189). Confirm your Vue model year before ordering.
- Suzuki XL-7: This hub fits the 2007–2009 XL-7 (Theta platform) only. The earlier Suzuki XL-7 (2001–2006, Grand Vitara-based) uses a different hub specification. Confirm your XL-7 generation before ordering.
- Chevy Equinox: This hub fits the 2007–2009 Equinox. The 2005–2006 Equinox uses a different hub (513189) and the 2010–2017 second-generation Equinox uses yet another specification. Confirm your Equinox year range.
Part Specifications
| Specification | Details |
|---|---|
| Part Number | 513276 |
| SKU | SA-513276 (single unit) |
| Replaces OEM / Cross Reference | 96626339 (GM OEM), VKBA7437 (SKF), 713644890 |
| Position | Front (single unit — left or right) |
| Lug Count | 5 Lugs |
| ABS | Yes — ABS sensor ring integrated |
| Flange Diameter | 5.94 in (150.9 mm) |
| Flange Offset | 1.66 in (42.2 mm) |
| Bolt Circle Diameter | 4.53 in (115.1 mm) |
| Weight | ~4.40 kg (single unit) |
Key Features
- GM Theta Platform Coverage — 2007–2015: Covers the Chevy Equinox (2007–2009), Captiva Sport (2012–2015), Pontiac Torrent (2007–2009, Equinox sister model), Saturn Vue second generation (2008–2010), and Suzuki XL-7 Theta-platform variant (2007–2009) — all sharing the same front hub geometry.
- GM OEM Cross-Reference: Replaces GM OEM part 96626339, SKF reference VKBA7437, and aftermarket reference 713644890. Direct fit, no modification required.
- OEM-Equivalent Quality: Meets or exceeds OEM performance standards. Tested for load rating, bearing clearance, and ABS sensor signal integrity before shipment.
- ABS-Compatible: Integrated ABS tone ring — maintains factory ABS and stability control on all compatible vehicles.
- Complete Assembly: Hub, bearing, and ABS ring pre-assembled — no press-fit or bearing packing required.
Installation Notes
- Professional installation recommended. Requires standard hub/knuckle removal for GM Theta platform front suspension.
- Torque all fasteners to OEM specification. Verify ABS sensor connector seating after installation.
- For both front corners, order quantity 2.
Note: Single unit, front position. 513276, 5-lug, ABS. Replaces GM OEM 96626339 / VKBA7437 / 713644890. Fits 2007–2009 Chevy Equinox, 2012–2015 Captiva Sport, 2007–2009 Pontiac Torrent, 2008–2010 Saturn Vue (2nd gen only), 2007–2009 Suzuki XL-7 (Theta platform only). Confirm generation and year before ordering.
