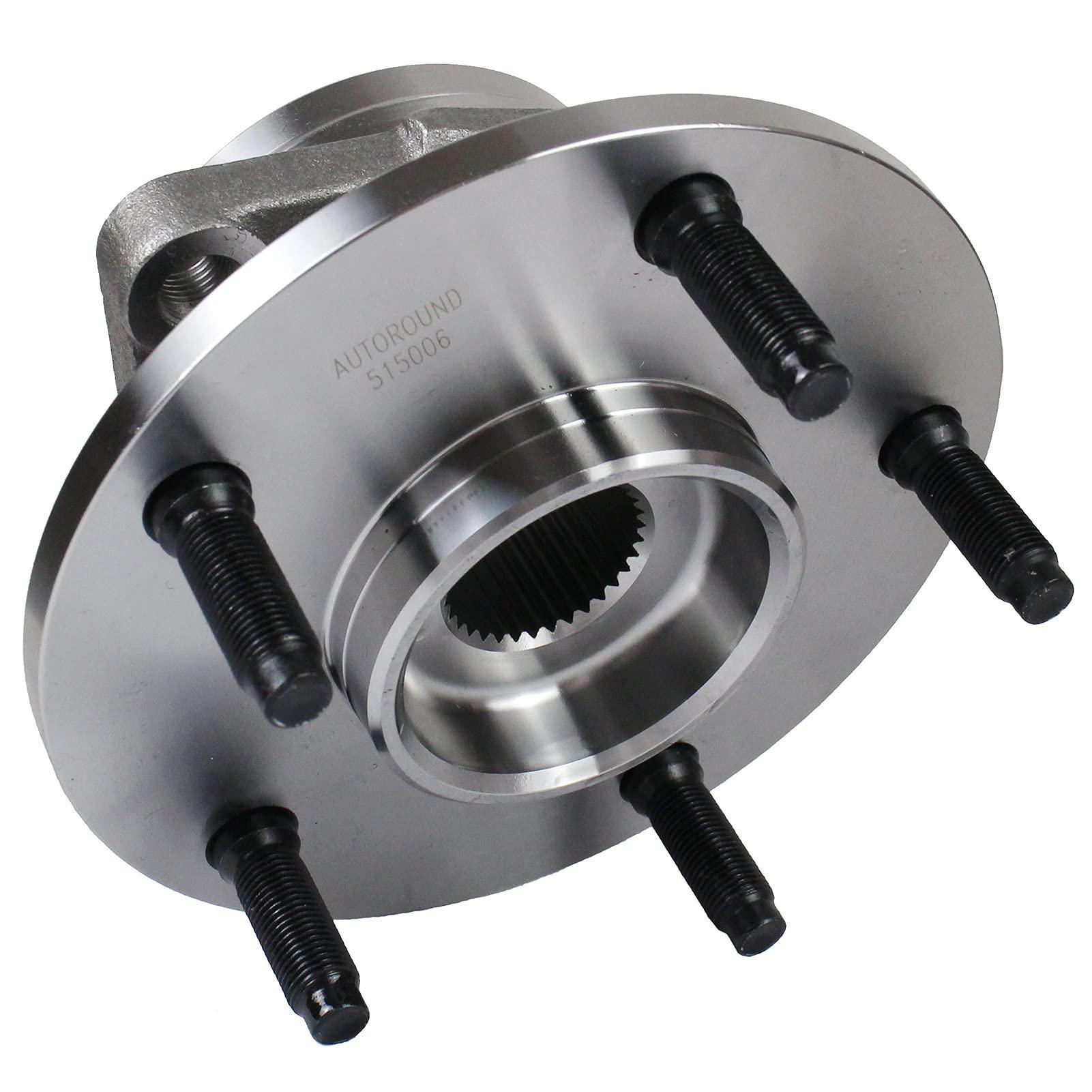

Front Wheel Hub & Bearing Assembly for Dodge Ram 1500 1994-1999, 4WD, 5-Lug

Front Wheel Hub & Bearing Assembly for Dodge Ram 1500 (1994-1999)

A complete front hub and bearing unit for the second generation four-wheel-drive Ram 1500. On these trucks a worn bearing usually announces itself as a hum or growl that climbs with road speed and changes as you sway the truck left and right, and it can progress to noticeable play at the wheel. Because the bearing comes pressed into the hub as a single sealed unit, the repair is bolt-off, bolt-on with no press work, and each assembly is quality tested to meet or exceed OEM performance standards.

Fitment

• Dodge Ram 1500 1994-1999
• Drivetrain: 4WD only
• Wheel studs: 5-lug
• Position: Front axle
• Quantity: 1 piece
• Not for: 2WD Ram 1500, Ram 2500 or 3500, 8-lug trucks, rear applications, or model years outside 1994-1999

This is the 4WD, 5-lug hub. 2WD trucks and the heavier 2500 and 3500 models use different parts. Confirm your drivetrain and stud count, or match the dimensions and part numbers below, before ordering.

Replaces part numbers

• 515006
• 52008220
• BR930256

Specifications

• Flange diameter: 6.78 in
• Flange offset: 3.85 in
• Bolt circle diameter: 5.5 in
• Studs: 5 lug
• Quality: Tested to meet or exceed OEM performance standards

Installation notes

• Installation should be carried out by a qualified technician.
• No press work is needed, as the bearing is already assembled into the hub.
• Torque the hub and axle fasteners to the vehicle's factory specifications.
• Test the truck in a safe area before returning it to normal use.

FAQ

Does it fit a 2WD Ram? No. This hub covers 4WD trucks only.

Does it fit a Ram 2500 or 3500? No. Those heavier trucks use a different hub, usually with an 8-lug pattern.

Is the bearing included? Yes, pressed into the hub as one sealed assembly.

How do I confirm fitment? Cross-reference 515006, Mopar part 52008220 or BR930256, and check the 5.5 in bolt circle against your existing hub.
