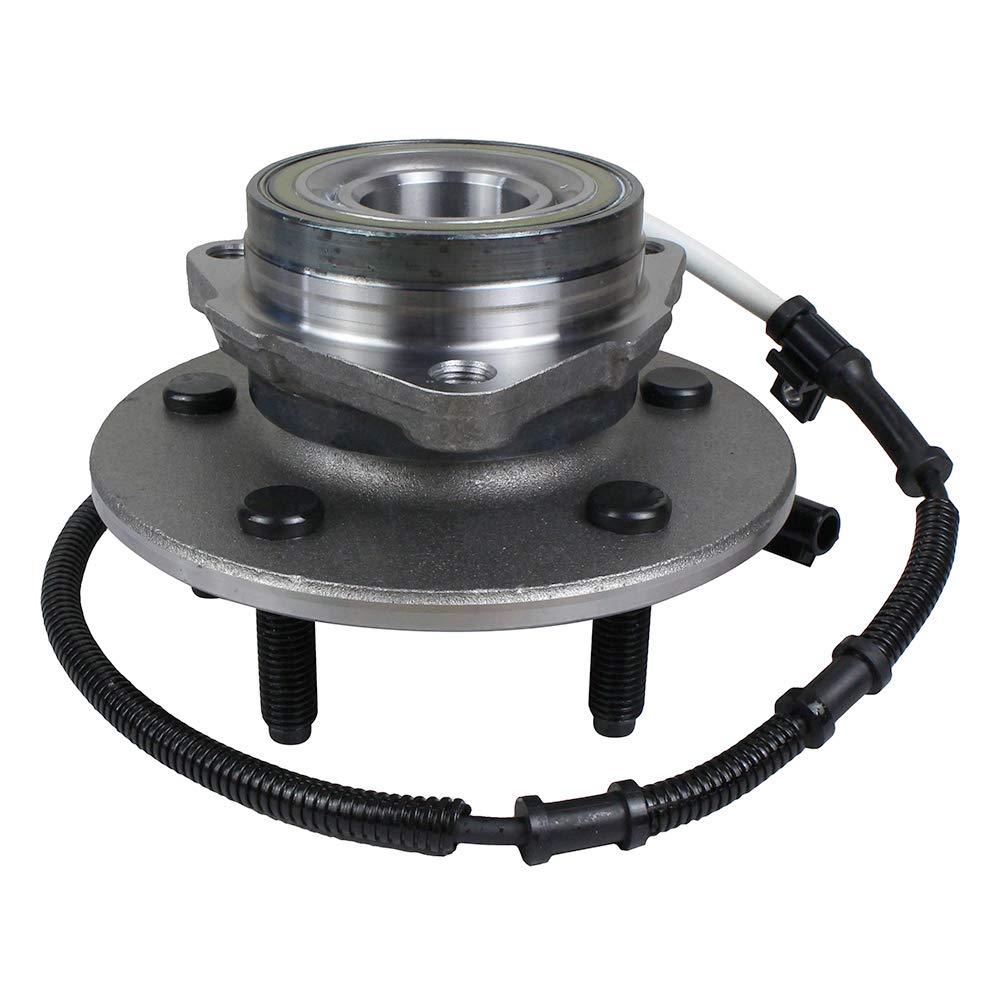

Front Wheel Hub Bearing Assembly for 2000-2003 Ford F-150, 2004 F-150 Heritage
Available in stock (20)
4WD Front Wheel Hub Bearing Assembly — 515029 (4WD Only, 5-Lug, 4-Wheel ABS, Front) — 2000–2003 Ford F-150 (Tenth Generation) / 2004 Ford F-150 Heritage
Full Vehicle Compatibility — Ford P120/P121 Tenth Generation (4WD, 4-Wheel ABS)
| Make | Model | Years | Notes |
|---|---|---|---|
| Ford | F-150 | 2000–2003 | Tenth generation (P120/P121 platform) — 4WD + 4-Wheel ABS only |
| Ford | F-150 Heritage | 2004 | Tenth generation carry-over — 4WD + 4-Wheel ABS only. NOT for 2004 new-gen F-150 (use SA-515046). |
Confirm drivetrain (4WD), ABS type (4-Wheel ABS), and model name (F-150 vs F-150 Heritage for 2004) before ordering. Contact us with your VIN for fitment verification.
10th Gen vs 11th Gen F-150 — Front Hub Reference
| Generation | Platform | Years | Lug Count | Bolt Pattern | Hub |
|---|---|---|---|---|---|
| Tenth Gen (this listing) | P120/P121 | 1997–2003; 2004 Heritage | 5-Lug | 5×135 mm | 515029 |
| Eleventh Gen | P221 | 2004–2008 (non-Heritage) | 6-Lug | 6×135 mm | 515046 (SA-515046) |
Part Specifications
| Specification | Details |
|---|---|
| Part Number | 515029 |
| SKU | SA-515029 (single unit) |
| Replaces / Cross Reference | SP450303, 22841380, 515097, H515097, FW345, BR930693 |
| Position | Front — left or right (single unit) |
| Drivetrain | 4WD Only (NOT 2WD / RWD) |
| ABS Requirement | 4-Wheel ABS models only (NOT Rear ABS only / RABS) |
| Lug Count | 5 Lugs |
| Bolt Circle Diameter | 5.31 in (134.9 mm) — Ford 5×135 |
| Flange Diameter | 7.13 in (181.1 mm) |
| Flange Offset | 1.95 in (49.5 mm) |
| Weight | ~5.73 kg (single unit) |
Key Features
- Ford 10th Gen F-150 4WD Front Hub: Designed for 4WD + 4-Wheel ABS variants of the 2000–2003 Ford F-150 and 2004 F-150 Heritage. Direct fit for all P120/P121 platform 4WD configurations with 4-Wheel ABS.
- Ford 5×135 Bolt Pattern: The tenth-generation F-150 uses the Ford 5×135 mm bolt pattern. The 2004 eleventh-generation F-150 switched to 6×135 mm — confirm your lug count before ordering.
- OEM-Equivalent Quality: Tested for load rating, bearing clearance, and ABS signal integrity before shipment.
- ABS-Compatible: Integrated ABS tone ring for 4-Wheel ABS systems on compatible F-150 variants.
- Complete Assembly: Pre-assembled with bearing and ABS ring — no press-fit required.
Installation Notes
- Professional installation recommended. Requires front CV axle disengagement and hub/knuckle removal for F-150 4WD front suspension.
- Torque all fasteners to OEM specification per F-150 P120/P121 service manual.
- Verify ABS sensor connector seating after installation. Confirm 4-Wheel ABS system compatibility before installation.
- For both front corners, order quantity 2.
Note: Single unit, front position. 515029, 4WD only, 5-lug, 4-Wheel ABS, Ford 5×135. Replaces SP450303, 515097, H515097, FW345, BR930693. Fits 2000–2003 Ford F-150 and 2004 F-150 Heritage — 4WD + 4-Wheel ABS only. NOT for 2WD, NOT for Rear ABS only (RABS), NOT for 2004 new-gen F-150 (use SA-515046).
