Front 4WD 8-Lug ABS Wheel Hub Bearing Assembly for 2003-2005 Ford Excursion & 2003-2004 F-250 F-350 Super Duty

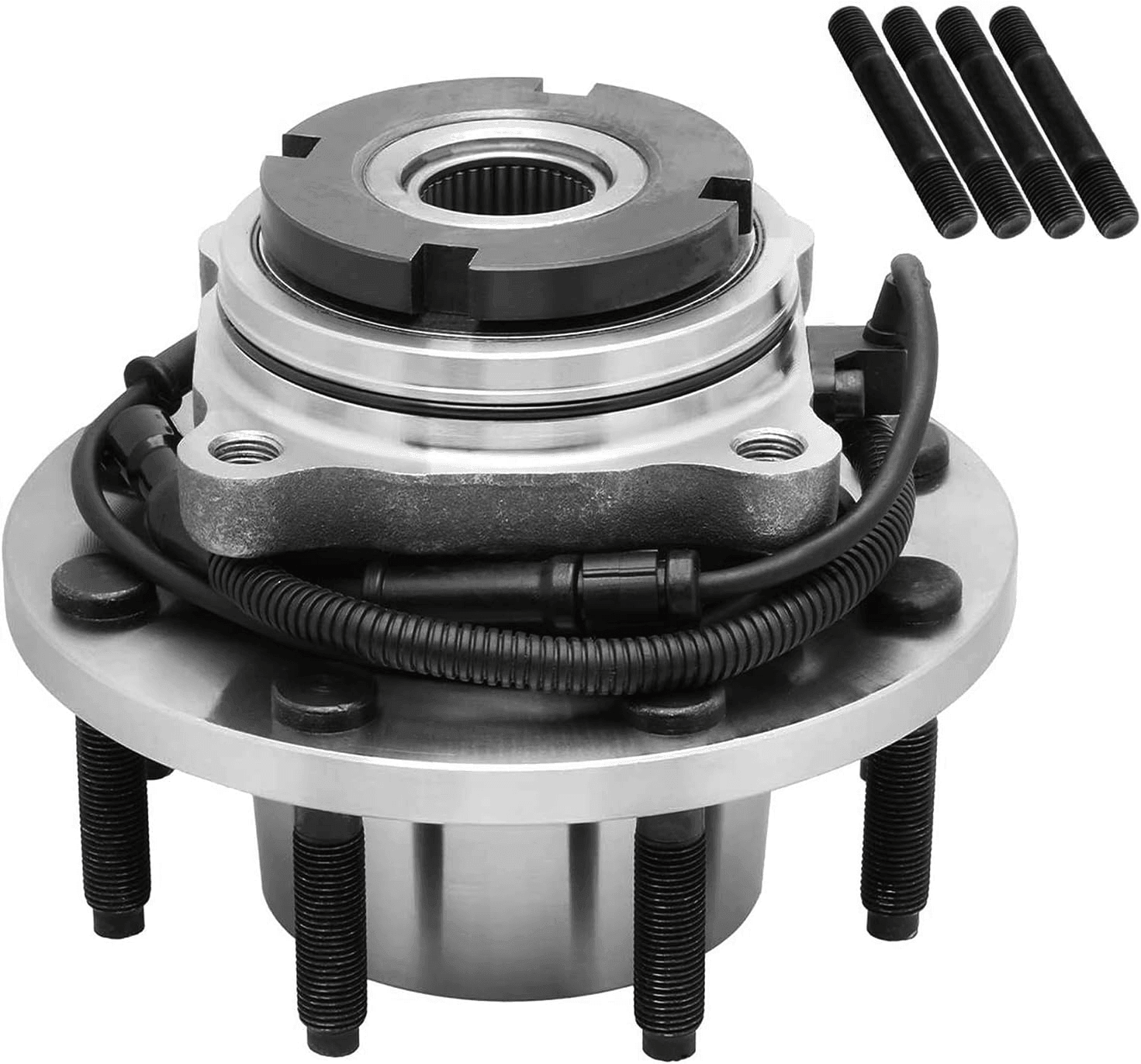

Front 4WD 8-Lug ABS Wheel Hub and Bearing Assembly

Front wheel hub and bearing assembly for the exact Ford Excursion, F-250 Super Duty, and F-350 Super Duty applications listed below. This version is specifically identified for 4WD vehicles with an 8-lug wheel pattern and ABS.

Critical fitment warning: 4WD only. 8-lug and ABS applications only. Do not order for 2WD vehicles or a different lug pattern. The source does not specify left versus right side, single or pair package quantity, engine, GVWR, axle code, production date, dual-rear-wheel compatibility, or whether an ABS sensor and harness are included. Confirm the VIN, drivetrain, axle and brake configuration, lug count, original hub reference, flange dimensions, electrical connector if applicable, and package contents before ordering.

Vehicle Compatibility

• 2003–2005 Ford Excursion — 4WD, 8-lug, ABS
• 2003–2004 Ford F-250 Super Duty — 4WD, 8-lug, ABS
• 2003–2004 Ford F-350 Super Duty — 4WD, 8-lug, ABS

Not compatible or not confirmed: 2WD vehicles, non-ABS applications, non-8-lug configurations, other model years, or vehicles whose original flange dimensions and hub references do not match. F-250/F-350 axle, GVWR, and single- versus dual-rear-wheel restrictions are not provided.

Position and Configuration

• Axle position: Front
• Drivetrain: 4WD only
• Wheel studs: 8-lug configuration
• Brake system: ABS application
• Side: Not specified; verify left/right interchange
• Quantity: Not specified; verify package contents

Confirmed Dimensions

• Flange diameter: 7.99 in
• Flange offset: 2.15 in
• Bolt-circle diameter: 6.69 in
• Bolt-pilot diameter: 5.08 in

Measure and compare the original hub before installation. The source does not provide spline count, pilot bore, wheel-stud thread, mounting-bolt pattern, connector pin count, or ABS-wire length.

Reference Numbers

515056, BR930438, SP580205, FW756

Reference numbers are provided for comparison. A matching number alone does not override drivetrain, ABS, lug-count, dimensional, axle, or production differences.

Included Components

• Front wheel hub and bearing assembly

ABS sensor, wiring harness, wheel studs, mounting bolts, axle nut, seals, dust shield, and other hardware are not separately confirmed by the source. Verify the product images and received package before installation.

Installation Notes

Wheel-hub service affects steering, braking, wheel retention, ABS operation, and vehicle stability and should be performed by a qualified technician. Before installation, compare the new and original hub dimensions, spline interface, flange, mounting pattern, stud pattern, connector, and wire routing.

Inspect the axle shaft, steering knuckle, brakes, ABS wiring, seals, and fasteners. Clean mating surfaces and follow Ford procedures and torque specifications for the hub fasteners, axle nut, brake components, and wheel nuts. Do not use an impact tool where the service procedure prohibits it. After installation, verify bearing operation, wheel runout, ABS warning-light status, wiring clearance, and brake function before road use.

Frequently Asked Questions

Does this fit a 2WD truck?
No. The source specifies 4WD only.

Is this for the front or rear?
This is a front-axle hub and bearing assembly.

Does it include an ABS sensor and wire?
The product is specified for ABS applications, but sensor and harness inclusion is not separately confirmed. Verify the images and package contents.

Can it fit either side?
The source does not specify side interchange. Compare the original hub, connector, wire routing, and mounting geometry before ordering.
