Front Wheel Hub Bearing Assembly for 2004-2005 Ford F-150
Available in stock (20)

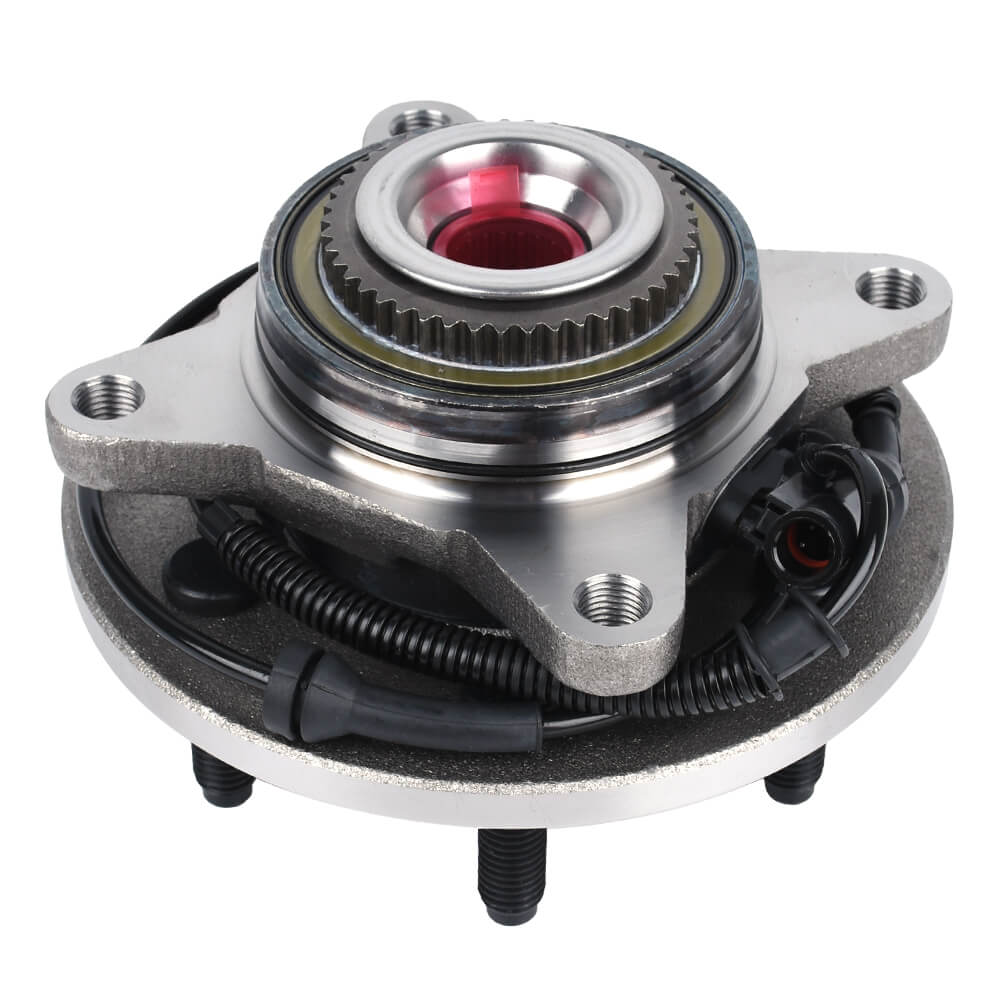

Front Wheel Hub Bearing Assembly — 515046 (6-Lug, ABS, 4WD Only, Front) — 2004–2005 Ford F-150 / 2005 Ford F-150 Heritage (Eleventh Generation)
Full Vehicle Compatibility — Ford F-150 Eleventh Generation (4WD, ABS, Front Hub)
| Make | Model | Years | Notes |
|---|---|---|---|
| Ford | F-150 | 2004–2005 | 4WD + ABS. Eleventh generation P221 — 6-lug 6×135. 2WD uses different hub. |
| Ford | F-150 Heritage | 2005 | 4WD + ABS. 2005 Heritage only — based on previous-gen body style. 2004 Heritage confirm via VIN. |
Confirm drivetrain (4WD), model year, and ABS before ordering. Contact us with your VIN for fitment verification.
Ford F-150 Generation Reference — 5-Lug to 6-Lug Transition
| Generation | Years | Lug Count | Bolt Pattern | Notes |
|---|---|---|---|---|
| Tenth Gen | 1997–2003 | 5-Lug | 5×135 | Different hub — see SA-515029 (4WD) or SA-515010 (4WD early) |
| F-150 Heritage | 2004–2005 | 5-Lug | 5×135 | Carryover body — Heritage 2005 4WD: this listing (515046) |
| Eleventh Gen (this listing) | 2004–2005 | 6-Lug | 6×135 | 515046 — SA-515046 — 4WD + ABS |
| Eleventh Gen (continued) | 2006–2008 | 6-Lug | 6×135 | Different hub spec — confirm via VIN |
Cross-Reference Parts
Hub 515046 replaces aftermarket references WE61068, HA550207, BR930455, and WB15046. No Ford OEM part number listed — cross-reference via 515046 or the above references in your parts catalog to confirm fitment.
Part Specifications
| Specification | Details |
|---|---|
| Part Number | 515046 |
| SKU | SA-515046 (single unit) |
| Cross Reference | 515046, WE61068, HA550207, BR930455, WB15046 |
| Position | Front — Left or Right (single unit) |
| Drivetrain | 4WD Only |
| ABS | Yes — ABS sensor ring integrated |
| Lug Count | 6 Lugs |
| Bolt Circle Diameter | 5.31 in (134.9 mm) — Ford 6×135 |
| Flange Diameter | 7.20 in (182.9 mm) |
| Flange Offset | 1.79 in (45.5 mm) |
| Weight | ~6.91 kg (single unit, approx. 15.2 lbs) |
Key Features
- Ford F-150 Eleventh Generation 4WD Front Hub: 515046 covers the front 4WD ABS hub position for the 2004–2005 F-150 (eleventh gen) and 2005 F-150 Heritage on Ford’s 6-lug 6×135 platform introduced with this generation.
- 6-Lug 6×135 Platform — New in 2004: The eleventh-generation F-150 switched from 5-lug to 6-lug for increased load capacity. Hub 515046 is specific to this 6-lug specification.
- ABS-Compatible: Integrated ABS tone ring maintains factory ABS function.
- OEM-Equivalent Quality: Tested to meet or exceed OEM performance standards. Sealed design minimizes noise and vibration.
- Complete Assembly: Pre-assembled hub and bearing — no press-fit required.
Installation Notes
- Professional installation recommended. Confirm 4WD drivetrain and 2004–2005 model year (or 2005 Heritage) before installation.
- Torque all fasteners to OEM specification per Ford F-150 eleventh-generation service manual. Verify ABS sensor connector seating after installation.
- For both front corners, order quantity 2.
Note: Single unit, front position. 515046, 6-lug, 4WD + ABS, Ford 6×135. Fits 2004–2005 Ford F-150 (11th gen, 4WD) and 2005 Ford F-150 Heritage (4WD). 2WD models require different hub. 2004 Heritage — confirm via VIN.
