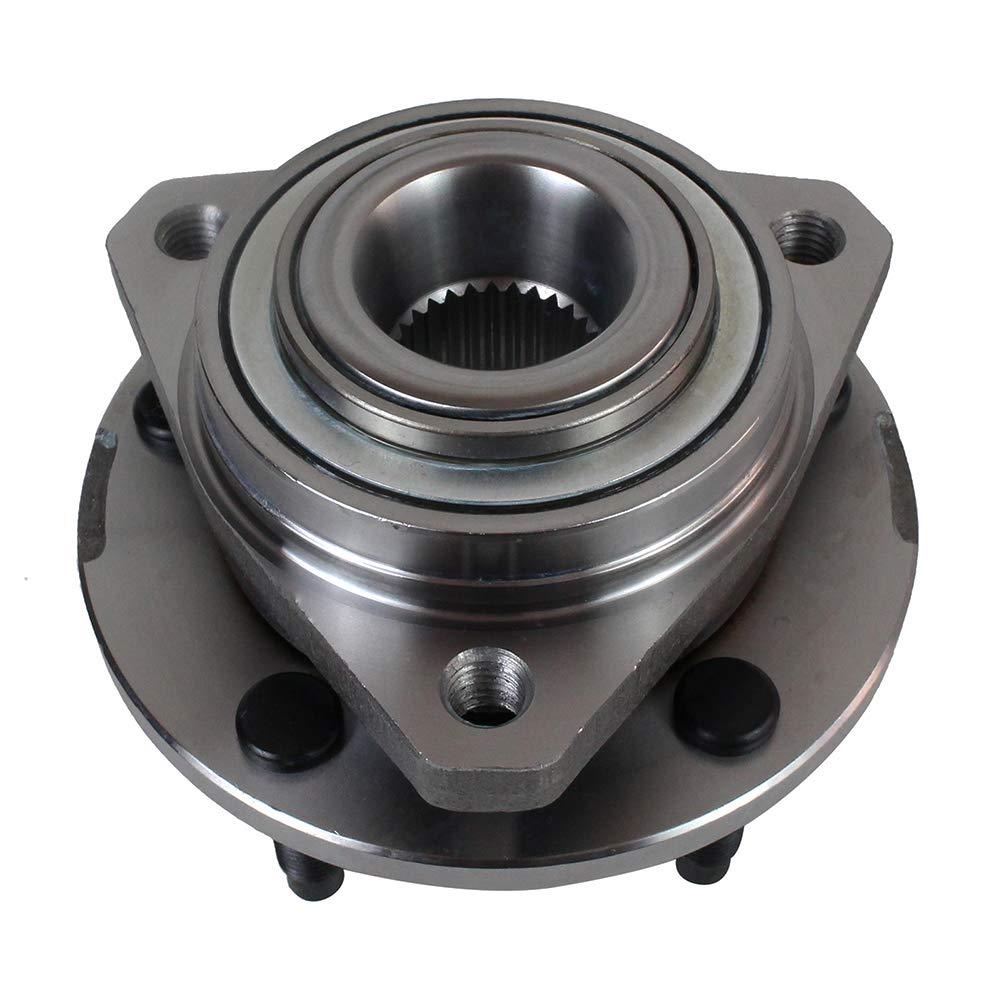

Front Non-ABS Wheel Hub Bearing Assembly for 2004-2007 Chevy Malibu & 2005-2007 Pontiac G6, 5-Lug

Front 5-Lug Wheel Hub and Bearing Assembly for Non-ABS Vehicles

Front wheel hub and bearing assembly for the listed Chevrolet Malibu and Pontiac G6 applications without ABS. The source specifies a 5-lug configuration.

Critical fitment warning: This assembly is for non-ABS vehicles only. It is not confirmed for vehicles equipped with ABS. The source does not specify front-left versus front-right side, package quantity, engine, transmission, body style, trim, drivetrain, production date, spline count, wheel-stud thread, or mounting-bolt details. Confirm the VIN, non-ABS brake configuration, original reference number, side, 5-lug pattern, flange dimensions, splines, and mounting points before ordering.

Vehicle Compatibility

• 2004–2007 Chevrolet Malibu — non-ABS
• 2005–2007 Pontiac G6 — non-ABS

Not confirmed: ABS-equipped vehicles or any model, year, brake system, drivetrain, body style, or configuration not matching the details above.

Confirmed Specifications

• Axle position: Front
• ABS: Non-ABS only
• Wheel studs: 5-lug configuration
• Flange diameter: 5.39 in
• Bolt-circle diameter: 4.33 in
• Flange offset: 1.54 in

Left/right interchangeability, package quantity, spline count, wheel-stud thread, mounting-bolt dimensions, and axle-nut specifications are not provided.

Reference Numbers

513215, WE60975, HA590071, BR930314, 12413087, WB13215

Reference numbers are provided for comparison. Match them together with the VIN, non-ABS configuration, side, lug pattern, flange dimensions, splines, and mounting points.

Package Contents

The source identifies a front wheel hub and bearing assembly but does not confirm package quantity or left/right interchangeability. It also does not confirm mounting bolts, axle nut, seals, or other hardware. Check the product images and package details before ordering; do not assume a left-and-right pair.

Installation Notes

Wheel-bearing service affects steering, braking, and wheel retention. Professional installation is recommended. Confirm that the vehicle does not use an ABS sensor or hub-integrated ABS connection before installation. Inspect the steering knuckle, drive axle, axle splines, brake components, and mounting surfaces. Compare the flange, offset, bolt circle, splines, and mounting points with the original hub. Follow vehicle-specific torque procedures for the axle nut, hub fasteners, brake components, and wheel nuts. Do not use an impact tool for final axle-nut torque unless the service procedure permits it. After installation, verify wheel rotation, end play, brake operation, wheel-nut torque, and the absence of abnormal noise.

Frequently Asked Questions

Does this fit vehicles with ABS?
No. The source specifically identifies this as a non-ABS hub assembly.

Is this a 5-lug hub?
Yes. The source specifies five wheel studs and a 4.33-inch bolt-circle diameter.

Does it fit the front left and front right?
The source confirms only the front axle. Left/right interchangeability is not stated, so compare the original assembly before ordering.

Is this a pair?
Package quantity is not confirmed. Do not assume two assemblies are included.
