Front Wheel Hub Bearing Assembly for 2005-2006 Chevy, 2002-2007 Saturn, 2006 Pontiac
Available in stock (20)

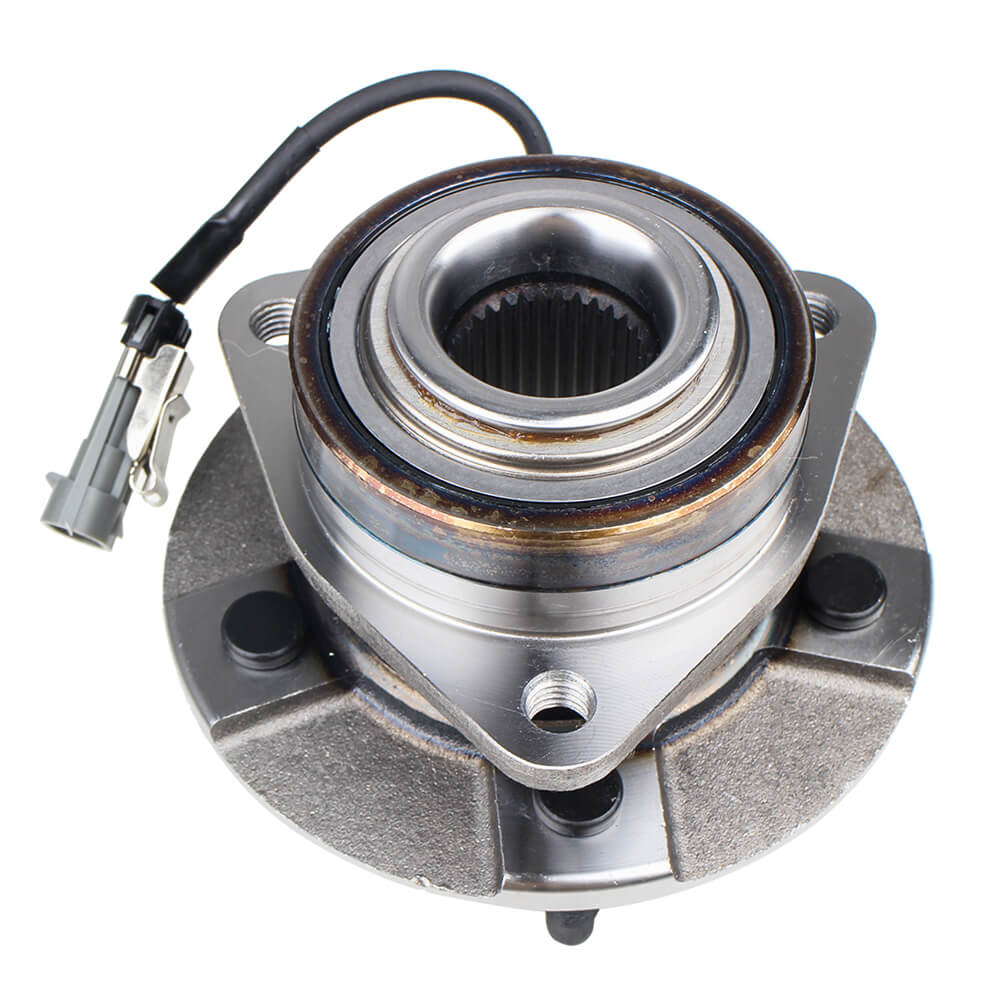

Front Wheel Hub Bearing Assembly — 513189 (5-Lug, ABS, Front) — 2005–2006 Chevrolet Equinox / 2006 Pontiac Torrent / 2002–2007 Saturn Vue
Full Vehicle Compatibility — GM Theta Platform
| Make | Model | Years |
|---|---|---|
| Chevrolet | Equinox | 2005–2006 |
| Pontiac | Torrent | 2006 |
| Saturn | Vue | 2002–2007 |
The Pontiac Torrent is the Pontiac-badged variant of the Chevrolet Equinox built on the same GM Theta platform — confirmed 513189 fitment. The Saturn Vue (2002–2007, first generation) shares the same front hub specification on the GM Theta platform. Confirm your make, model, and build year before ordering. Contact us with your VIN for fitment verification if unsure.
Part Specifications
| Specification | Details |
|---|---|
| Part Number | 513189 |
| SKU | SA-513189 (single unit) |
| Replaces OEM / Cross Reference | 22702717 (GM OEM), BR930326, 513189 |
| Position | Front (single unit — left or right) |
| Lug Count | 5 Lugs |
| ABS | Yes — ABS sensor ring integrated |
| Flange Diameter | 5.91 in (150.1 mm) |
| Flange Offset | 1.65 in (41.9 mm) |
| Bolt Circle Diameter | 4.53 in (115.1 mm) |
| Weight | ~3.91 kg (single unit) |
Key Features
- GM Theta Platform Front Hub: Correct front hub specification for the 2005–2006 Chevrolet Equinox, 2006 Pontiac Torrent (Equinox sister model), and 2002–2007 Saturn Vue (first generation) — all sharing the same GM Theta platform front hub geometry.
- OEM-Equivalent Quality: Meets or exceeds OEM performance standards. Tested for load rating, bearing clearance, and ABS sensor signal integrity before shipment.
- ABS-Compatible: Integrated ABS tone ring — maintains factory ABS and stability control on all compatible Equinox, Torrent, and Vue vehicles.
- GM OEM Cross-Reference: Replaces GM OEM part 22702717 and aftermarket reference BR930326. Direct fit, no modification required.
- Complete Assembly: Hub, bearing, and ABS ring pre-assembled — no press-fit or bearing packing required.
Installation Notes
- Professional installation recommended. Requires standard hub/knuckle removal for GM Theta platform front suspension.
- Torque all fasteners to OEM specification. Verify ABS sensor connector seating after installation.
- For both front corners, order quantity 2.
Note: Single unit, front position. 513189, 5-lug, ABS. Replaces GM 22702717 / BR930326. Fits 2005–2006 Chevy Equinox, 2006 Pontiac Torrent, 2002–2007 Saturn Vue. Confirm model year before ordering.
