Front Wheel Hub Bearing Assembly for 2005-2010 Ford F-250 F-350 Super Duty
Available in stock (20)

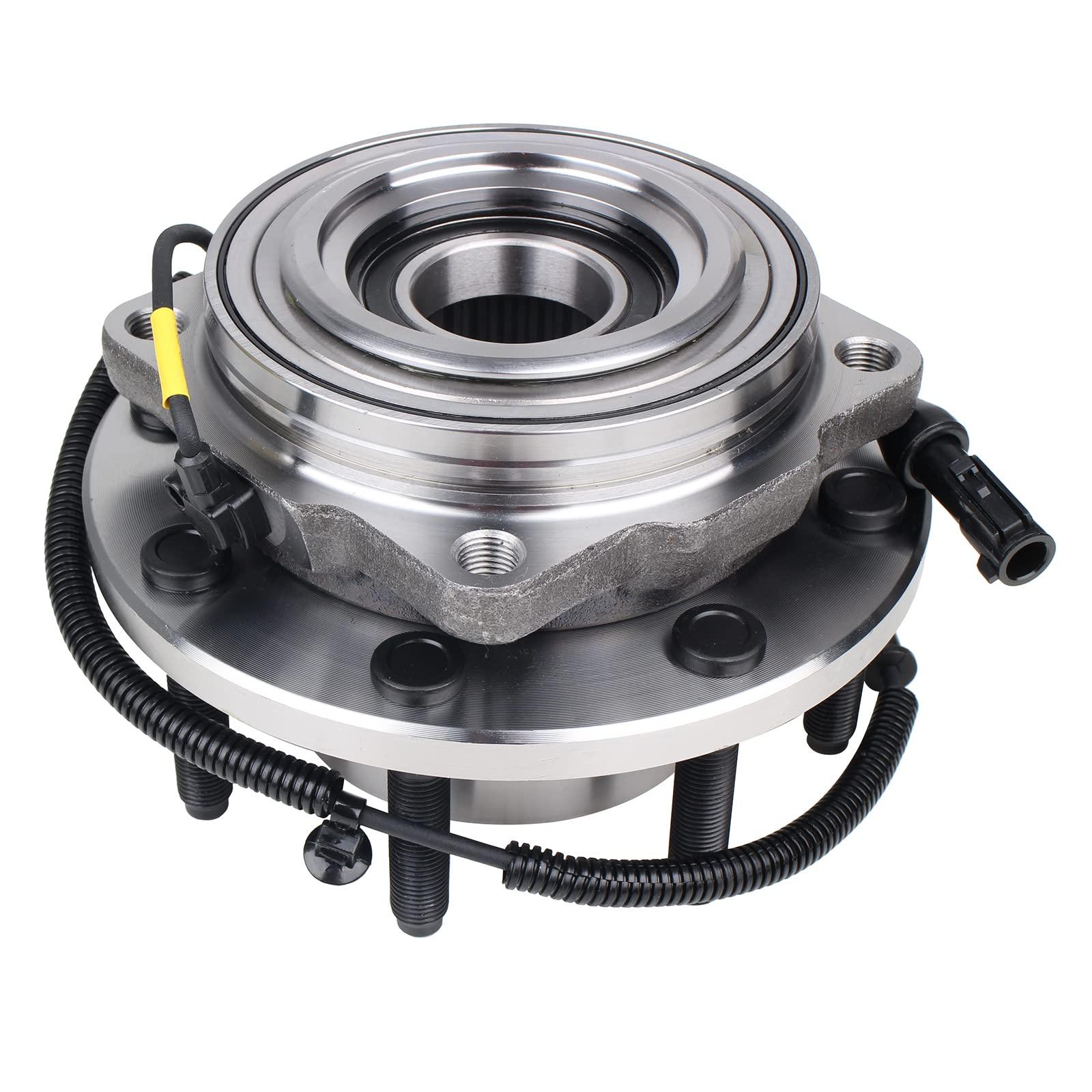

4WD Front Wheel Hub Bearing Assembly — 515081 (4WD Only, SRW, 8-Lug, ABS, Front) — 2005–2010 Ford F-250 Super Duty — Second Generation P221 Platform
Vehicle Compatibility — Ford Super Duty P221 Platform, Second Generation (4WD, SRW)
| Make | Model | Years | Notes |
|---|---|---|---|
| Ford | F-250 Super Duty | 2005–2010 | 4WD, SRW — all cab configurations. Second generation P221 platform. |
Confirm make, model year, drivetrain (4WD), and SRW/DRW configuration before ordering. Contact us with your VIN for fitment verification — especially for F-350 Super Duty inquiries.
Super Duty Generation Comparison — Do Not Mix
| Generation | Years | Part Number | Flange Offset | SKU |
|---|---|---|---|---|
| First Generation P221 | 1999–2004 | 515020 | 2.15 in (54.6 mm) | SA-515020 |
| Second Generation P221 | 2005–2010 | 515081 | 1.83 in (46.5 mm) | SA-515081 — this listing |
Both generations use 8-lug, 4WD, SRW Super Duty front hub geometry but with different flange offsets — they are not interchangeable. Confirm your exact model year before ordering.
Part Specifications
| Specification | Details |
|---|---|
| Part Number | 515081 |
| SKU | SA-515081 (single unit) |
| Replaces OEM / Cross Reference | 515081, BR930695, SP940200 |
| Position | Front (single unit — left or right) |
| Drivetrain | 4WD Only (NOT 2WD / RWD) |
| Rear Wheel Config | SRW (Single Rear Wheel) Only — NOT DRW / Dually |
| Lug Count | 8 Lugs |
| ABS | Yes — ABS sensor ring integrated |
| Flange Diameter | 7.99 in (202.9 mm) |
| Flange Offset | 1.83 in (46.5 mm) — second generation specification |
| Bolt Circle Diameter | 6.69 in (169.9 mm) — Ford Super Duty 8×170 |
| Weight | ~11.91 kg (single unit) |
Key Features
- Ford Super Duty Second Generation 4WD Front Hub: Engineered for the second-generation Ford F-250 Super Duty (P221, 2005–2010) 4WD front axle. 8-lug 8×170mm bolt pattern, ~11.9 kg per unit reflects the heavy-duty construction required for Super Duty payload and towing ratings.
- Generation-Specific Offset: Flange Offset 1.83 in (46.5 mm) is specific to the 2005–2010 second-generation Super Duty. Do not substitute with first-generation 515020 (Offset 2.15 in).
- OEM-Equivalent Quality: Meets or exceeds OEM performance standards. Tested for load rating, bearing clearance, and ABS sensor signal integrity under heavy-duty operating conditions before shipment.
- ABS-Compatible: Integrated ABS tone ring — maintains factory ABS on all compatible 4WD Super Duty vehicles.
- Complete Assembly: Hub, bearing, and ABS ring pre-assembled — no press-fit or bearing packing required.
Installation Notes
- Professional installation strongly recommended due to component weight (~11.9 kg per unit) and Super Duty torque requirements.
- Requires front CV axle disengagement and hub/knuckle removal for Ford Super Duty 4WD front suspension.
- Torque hub bolt and all fasteners to OEM specification — refer to your 2005–2010 Super Duty service manual for torque values.
- Verify ABS sensor connector seating after installation.
- For both front corners, order quantity 2.
Note: Single unit, front position. 4WD only, SRW. 515081, 8-lug, ABS, 8×170, Offset 1.83 in. Replaces BR930695 / SP940200. Confirmed fit: 2005–2010 Ford F-250 Super Duty (4WD, SRW). F-350 buyers: verify via VIN. NOT for 1999–2004 Super Duty (use SA-515020). NOT 2WD. NOT DRW.
