Heavy-Duty Front 6-Lug ABS Wheel Hub Bearing for GM 4WD / AWD Applications

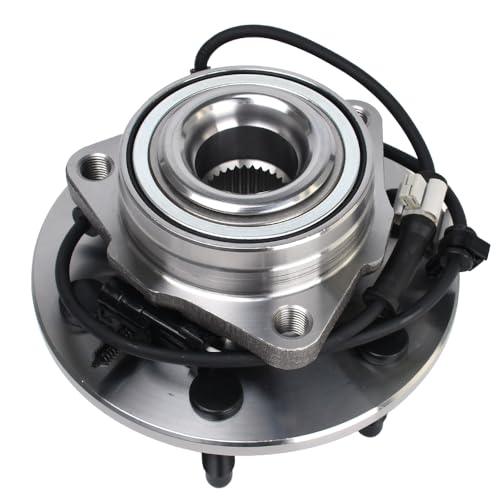

Heavy-Duty Front 6-Lug ABS Wheel Hub and Bearing Assembly

Front wheel hub and bearing assembly for the exact Cadillac, Chevrolet, and GMC 4WD/AWD applications listed below. The source identifies a six-lug flange, ABS-system application, reference number 515036, and a Heavy Duty product description.

Critical fitment warning: This hub is source-listed for 4WD or AWD models only. Do not order for a 2WD vehicle. Hub assemblies can vary by vehicle series, gross-weight package, drivetrain, model year, production date, ABS connector and wiring, axle interface, brake package, steering knuckle, wheel-lug pattern, and flange dimensions. Confirm the VIN, exact 1500 or 2500 designation, 4WD/AWD configuration, six-lug pattern, original-hub dimensions, ABS connector, mounting pattern, and every reference number before ordering.

Cadillac Compatibility — 4WD/AWD Only

• 2002–2006 Cadillac Escalade
• 2002–2006 Cadillac Escalade ESV
• 2002–2006 Cadillac Escalade EXT

Chevrolet Compatibility — 4WD/AWD Only

• 2002–2006 Chevrolet Avalanche 1500
• 2003–2013 Chevrolet Express 1500
• 2003–2005 Chevrolet Express 2500
• 1999–2006 Chevrolet Silverado 1500
• 2007 Chevrolet Silverado 1500 Classic
• 2000–2006 Chevrolet Suburban 1500
• 2000–2006 Chevrolet Tahoe

GMC Compatibility — 4WD/AWD Only

• 2003–2013 GMC Savana 1500
• 2003–2005 GMC Savana 2500
• 1999–2006 GMC Sierra 1500
• 2007 GMC Sierra 1500 Classic
• 2000–2006 GMC Yukon
• 2000–2006 GMC Yukon XL 1500

Important series warning: “Heavy Duty” is retained from the product description. It does not establish compatibility with Silverado 2500HD, Sierra 2500HD, 3500, eight-lug, or other heavy-duty truck applications. Only the models, series, years, drivetrain, and six-lug configuration explicitly listed above are supported by the source.

Not confirmed: 2WD vehicles, eight-lug applications, unlisted 2500/2500HD/3500 trucks, rear-axle use, unlisted model years, or vehicles whose ABS system, connector, flange dimensions, mounting pattern, axle interface, or brake package differs.

Product Specifications

• Position: Front axle
• Drivetrain: 4WD or AWD only
• Wheel studs: 6-lug configuration
• ABS: Source-listed ABS-system application
• Flange diameter: 7.08 in
• Hub pilot diameter: 3.91 in
• Bolt-circle diameter: 4.96 in

The source does not provide ABS connector type, pin count, wire length, spline count, stud thread size, mounting-bolt spacing, flange offset, torque specifications, or confirmed left/right interchange. Compare all dimensions and electrical details with the removed hub before installation.

Package Contents

• Front wheel hub and bearing assembly; package quantity not specified

The source does not confirm mounting bolts, axle nut, brake hardware, dust shield, snap ring, additional ABS wiring, wiring clips, or installation tools. Do not treat the singular product wording or SKU as proof of package quantity.

Reference Numbers

515036, SP500300, 19209040, 15233113, 15112382, H515036, FW291

Reference numbers are supplied for comparison only. A matching number does not override drivetrain, vehicle-series, lug-count, ABS, dimensional, mounting-pattern, axle, brake-package, or production-date differences.

Installation Notes

Professional installation is recommended. Confirm that the vehicle is 4WD or AWD and uses the listed six-lug front hub before disassembly. Safely support the vehicle and follow the vehicle-, drivetrain-, and brake-package-specific service procedure.

Compare the replacement hub with the original for flange diameter, hub pilot, bolt circle, stud pattern, mounting points, axle interface, ABS sensor location, connector, cable length, and routing. Clean the steering-knuckle mounting surface and remove corrosion or debris without damaging the mating face.

Inspect the axle splines, steering knuckle, CV axle, brake components, dust shield, fasteners, and ABS wiring. Replace damaged or manufacturer-designated single-use hardware as required. Use the vehicle manufacturer's tightening sequence and torque values for the hub mounting bolts, axle nut, brake components, and wheel fasteners. Incorrect axle-nut torque can damage the bearing or create wheel play.

Route the ABS lead exactly as required, secure it away from rotating, moving, or hot components, and verify the connector is fully seated. After assembly, check wheel rotation, brake operation, ABS and stability-control warning lights, wheel play, and abnormal noise. Complete an alignment check if required by the service procedure or related suspension work.

Frequently Asked Questions

Does this fit 2WD vehicles?
No. The source specifies 4WD or AWD models only.

Is this an eight-lug hub for a 2500HD?
No eight-lug or 2500HD compatibility is established. The source specifies six lugs and only lists Express/Savana 2500 for 2003–2005.

Is this for the front or rear?
The listing identifies a front wheel hub and bearing assembly.

Does it support ABS?
The source lists an ABS-system application, but connector type, pin count, and wire length are not provided. Compare the original hub before ordering.

Is this a pair?
Package quantity is not stated. Do not assume two hub assemblies are included.

Can it be installed on either front side?
The source does not state a left/right restriction or confirm side interchange. Compare the original hub and ABS lead orientation.
