Mercedes-Benz G500 G550 Carbon Fiber Rear Door Guard Trim 2019–2023

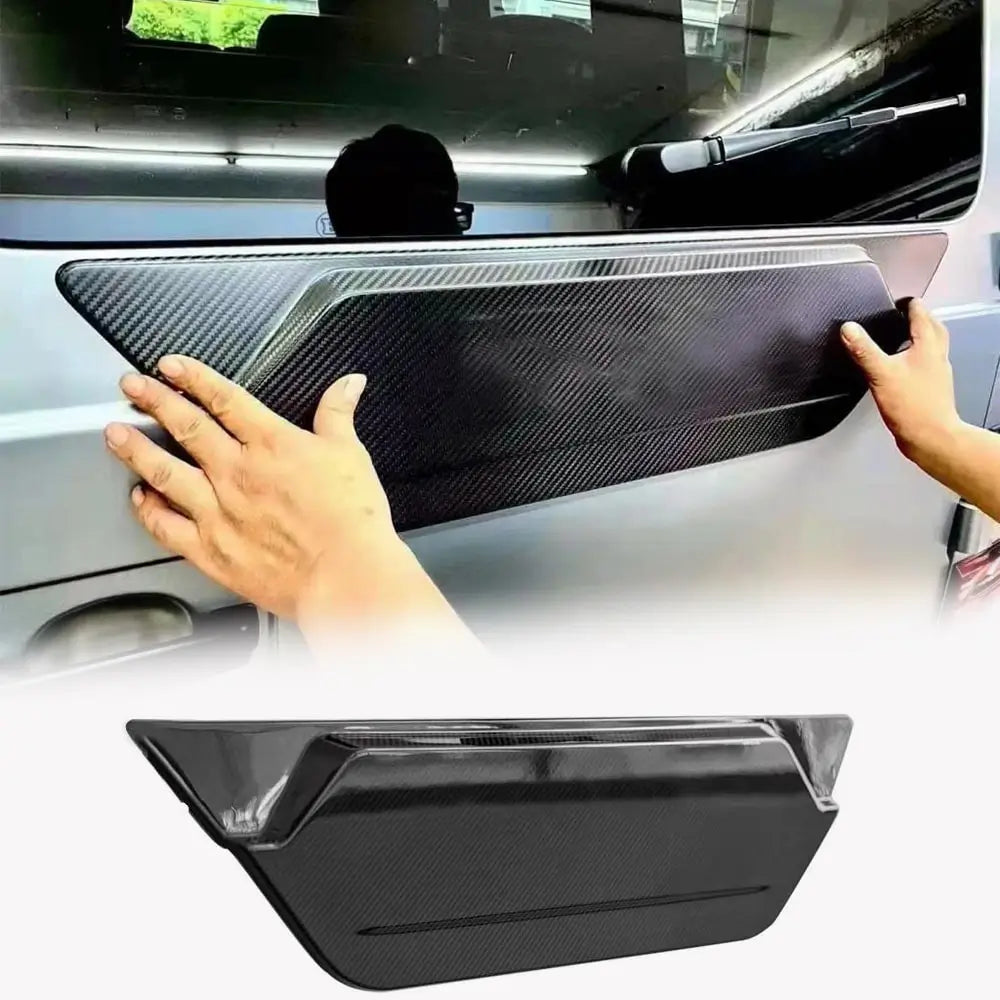

Carbon Fiber Rear Tail Door Guard Trim for Mercedes-Benz G500 / G550

Add a gloss woven-carbon accent to your G-Class rear door area. This item is named a rear tail door guard in the source and is listed for G500/G550 applications from 2019–2023. Exact coverage and mounting position require confirmation before ordering.

Listed Fitment

• Mercedes-Benz G-Class G500 and G550.
• Source-listed platform designation: W464.
• Source-described body: Sport Utility, four-door.
• Years: 2019, 2020, 2021, 2022 and 2023.

The W464 designation is retained as source wording, not independent confirmation of platform identity. Verify VIN, actual chassis designation, production date, market and the original rear-door profile. Do not assume W463 and W464 labels establish interchangeability.

The source groups models and years together without a component-specific compatibility matrix. G63, other engines, other years, special editions and modified rear doors or body conversions are not established applications.

Coverage and Function

The source does not identify the exact panel, edge or surface covered, supply dimensions or define whether the component overlays an original finish or replaces existing trim. Confirm the supplied part's shape, intended position, contact surfaces and original-part retention before ordering or installation.

“Guard” is the product's name, not evidence of tested impact, scratch or collision protection. Treat the item as decorative trim rather than a structural protector, reinforcement, door seal, replacement rear door, spare-wheel carrier or load-bearing attachment. No protection rating or load capacity is supplied.

Material, Finish and Development

• Source-specified 3×3 weave carbon fiber.
• Gloss, smooth finish with source-described double-layer UV-protected clear coating.
• Development described as 3D design, CNC molding and vehicle trial installation.

“Dry carbon” appears in the previous title and URL, but the detailed specifications do not establish a dry-carbon manufacturing process. No prepreg process, resin chemistry, backing material, carbon-only laminate, layer thickness or measured net weight is supplied. The documented carbon fiber specification is retained without an unverified dry-carbon claim.

UV protection does not guarantee permanent gloss or freedom from fading or discoloration. Exact weave or color matching to other accessories is not guaranteed. Development and trial installation do not guarantee perfect fit on every vehicle. No measured evidence establishes improved aerodynamics or quantified weight savings.

Included Attachment Material

Tape is explicitly listed as included. Tape brand, thickness, quantity, pre-application status and required bonding area are not documented. Exact physical piece count and a full packing breakdown are not supplied. Screws, clips, brackets, reinforcement and other attachment materials are not individually confirmed as included.

Tape inclusion does not establish pre-applied adhesive or sufficient retention on every surface. Verify the actual contact area, surface finish and mounting requirements. The original perfect-fit, easy-installation and no-modification promises are not retained. No complete installation procedure is supplied.

Professional Installation Guidance

1. Confirm the individual vehicle and the exact intended coverage. Inspect and trial-fit each supplied component before removing adhesive backing or original trim.
2. Check contours and full intended contact without forcing the composite. Verify rear-door opening and closing through its full normal range, including hinge, latch, handle, seal and adjacent-panel clearances.
3. Preserve access to any fitted spare-wheel assembly and its fixings. Confirm clearance to the existing cover or carrier where relevant; compatibility with aftermarket spare-wheel equipment is not established.
4. Do not obstruct drainage, required lighting, registration plate visibility, cameras, wipers or other fitted equipment. Do not bridge moving gaps, interfere with seals or transfer loads to decorative trim.
5. Clean and dry verified bonding surfaces using products compatible with the vehicle finish and clear coat. Resolve coatings, damaged paint or inadequate contact before installation.
6. Follow the actual tape manufacturer's preparation, application-temperature, pressure and curing requirements. Do not assume a fixed cure time or force poorly aligned trim into contact.
7. After the specified cure and mounting checks, confirm secure retention, normal door operation, secure latching and all affected vehicle functions before use. Do not slam a door that binds or fails to latch.
8. Reinspect periodically and after impact, washing or rear-door work. Do not drive with loose or lifting trim.

Professional installation is recommended. Do not use the trim as a door handle, step, pushing point, lifting point or support for body weight. It must not support spare-wheel or cargo loads or alter the door's hinges, latch or supporting structure.

Care

Use a soft cloth and non-abrasive cleaning products compatible with the gloss coating. Avoid aggressive solvents and close-range high-pressure water at edges. Observe the actual tape's washing restrictions during curing. Inspect for cracks, finish damage, lifting edges or movement and check that seals, drainage and door operation remain unobstructed.

Frequently Asked Questions

Which part of the rear door does it cover?
The source names a rear tail door guard but does not define its exact coverage or provide dimensions. Confirm the actual component and intended location before ordering.

Is it a replacement door or spare-wheel cover?
Neither is established. Do not infer those contents from the guard name.

Does it provide impact protection?
No tested protective rating is supplied. It is presented as decorative trim, not structural armor.

Is dry-carbon manufacturing confirmed?
No. The detailed material specification establishes 3×3 carbon fiber without a documented dry-carbon process.

Is tape included?
Yes, but its specifications and pre-application status are not supplied.

Does it fit G63 or every W463/W464 rear door?
Those broader applications are not established. Verify VIN, actual chassis and rear-door interface individually.

How many pieces are included?
The source does not provide an exact physical piece count or complete packing list.
