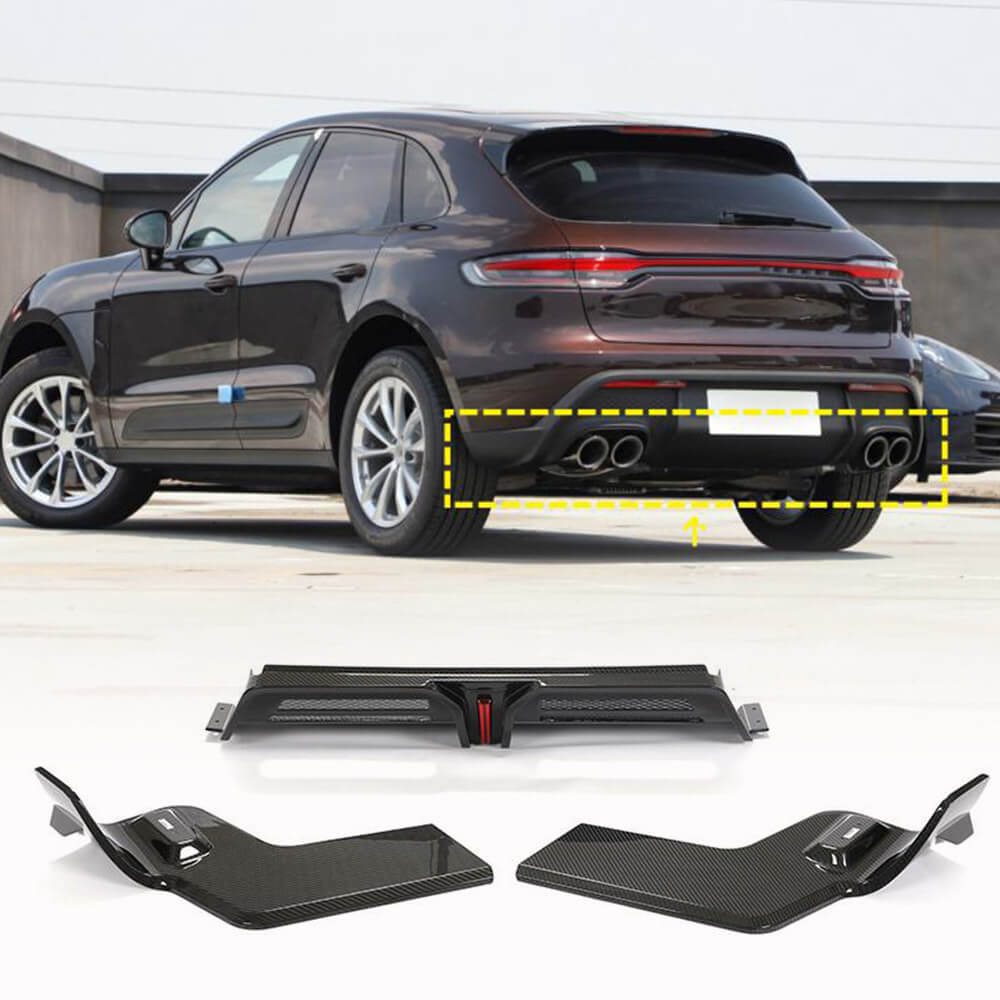

Carbon Fiber Rear Diffuser for Porsche Macan

Add a gloss woven-carbon accent to the lower rear bumper. This diffuser is source-listed for Porsche Macan Base, S and GTS Sport Utility applications from 2022 onward, replacing the factory plastic diffuser. Confirm the exact bumper and exhaust interface before ordering.

Listed Fitment

• Porsche Macan Base, Macan S and Macan GTS.
• Sport Utility, four-door as described in the source.
• Source-listed range: 2022+.

The open-ended range is not a production-revision or equipment-specific matrix. Confirm VIN, production date, market, actual rear bumper, retaining points and exhaust layout. Do not assume all later Macan generations or powertrains share this interface. Electric Macan, Turbo, T, Diesel, earlier years and other unlisted versions are not established applications.

Existing hidden filtering refers to 2015–2020 vehicles, including additional versions. It does not support expanding the visible 2022+ Base/S/GTS application. Verify the actual vehicle rather than relying on that filtering.

Important Tailgate Sensor Warning

The source explicitly warns that installation may block the function of a rear sensor-operated door. Treat compatibility with any fitted hands-free tailgate-opening sensor as unresolved. Confirm sensor location and operation before ordering. Do not assume a compatible sensor bracket, relocation kit or workaround is supplied. Do not disable or bypass vehicle equipment to make an incompatible diffuser fit.

Material and Finish

• Source-specified genuine 3×3 weave carbon fiber.
• Gloss finish with source-described double-layer UV-protected clear coating.
• Development described as 3D design, CNC molding and vehicle trial installation.

No dry-carbon or prepreg process, backing composition, resin chemistry, carbon-only laminate, thickness, dimensions or measured net weight is documented. No quantified weight-saving, downforce, drag, cooling or handling test data is supplied. This item is presented as an exterior styling accessory without those performance claims.

UV protection does not guarantee permanent gloss or freedom from fading or discoloration. Matching other carbon accessories is not guaranteed. Development and trial-fitting descriptions do not establish perfect fit on every vehicle.

Diffuser and Light Contents

The original title and URL say with light, but the detailed description and packing information do not itemize the lamp or its specification. Confirm whether a lamp is actually supplied, its physical mounting arrangement and all required accessories before ordering. A light aperture alone would not establish inclusion of a lamp or wiring.

Light type, color, voltage, current, connector, pinout, wire colors, control method, brake/tail/fog/reverse function, flashing behavior, waterproof rating and approval markings are not documented. LED construction, a brake-light function, plug-and-play installation and road-use certification are not assumed.

Any supplied light must be assessed and installed by a qualified automotive electrical technician using verified specifications and a suitable protected circuit. Do not guess a power connection or splice into a vehicle circuit without establishing compatibility. Preserve original required lamps and reflectors; an accessory must not replace or obstruct them. Confirm applicable installation requirements before using an added light.

Replacement Scope and Attachment

The source describes replacement of the factory plastic diffuser, not a confirmed stick-on overlay or complete bumper replacement. Self-tapping screws are listed as included. Exact screw quantities and dimensions, physical diffuser piece count and a complete packing list are not supplied.

Tape, adhesive, new clips, brackets, exhaust tips, pipes, mesh, lamp harnesses, controllers and adapters are not individually confirmed as included. Exhaust opening count, dimensions and modified-exhaust compatibility are not specified. Confirm original-component removal and transfer requirements.

No full mounting diagram or torque values are supplied. Included self-tapping screws do not establish existing-hole compatibility or a drilling-free installation. The original quick-installation and no-modification promises are not retained.

Professional Installation Guidance

1. Verify the actual bumper, exhaust arrangement, sensor configuration and supplied light contents. Inspect and trial-fit the diffuser before drilling or electrical work.
2. Check perimeter alignment, retaining points and panel gaps without forcing the composite. Follow the vehicle service procedure for original-insert removal and equipment transfer.
3. Confirm exhaust tip alignment, heat clearance and allowance for exhaust movement on its own hangers. No minimum clearance or composite heat rating is supplied. The diffuser must not touch hot or moving exhaust parts or carry exhaust weight.
4. Preserve parking sensors, radar, cameras, reflectors, original lamps, tow-access provisions and hands-free tailgate equipment. Exterior alignment does not prove functional compatibility.
5. Verify secure attachment locations and inspect behind proposed holes for wiring and other components. Do not improvise mounting or sensor relocation in place of missing instructions.
6. If a light is supplied, verify its electrical specifications before connection. Secure and protect any wiring away from heat, moving parts, sharp edges and water-entry paths. Do not assume the necessary harness is included.
7. Complete the verified attachment and electrical procedure, checking retention, exhaust clearance and every affected vehicle function before driving. Perform diagnostics or calibration where required by the service procedure.
8. Reinspect periodically and after scraping, impact, exhaust work or bumper removal. Do not drive with loose parts, exhaust contact or unresolved equipment faults.

Professional bodywork and, where applicable, automotive electrical installation are recommended. Do not use the diffuser as a step, lifting point or towing attachment.

Care

Allow the exhaust to cool before cleaning or inspection. Use a soft cloth and non-abrasive products compatible with the gloss coating. Avoid aggressive solvents and close-range high-pressure water at edges, fixings and any light or electrical connection. Inspect for cracks, heat damage, loose attachment and, if a lamp is fitted, wiring damage or moisture ingress.

Frequently Asked Questions

Is a light definitely included?
The title says with light, but the detailed contents do not itemize it. Confirm the actual lamp and accessories before ordering.

Is it an LED brake light?
Neither LED construction nor a brake-light function is documented.

Is the light plug-and-play?
No connector, pinout, voltage or harness specification is supplied. Electrical compatibility must be verified.

Will the hands-free tailgate sensor work?
The source explicitly warns that its function may be blocked. Compatibility remains unresolved.

Does this fit every Macan from 2022 onward?
No. The source lists Base/S/GTS without a revision matrix. Other generations, powertrains and bumper configurations require separate verification.

Are tape and exhaust tips included?
Neither is individually listed. Self-tapping screws are the documented included fasteners.

Is it dry carbon or a one-piece diffuser?
Neither a dry-carbon process nor an exact physical piece count is documented.
